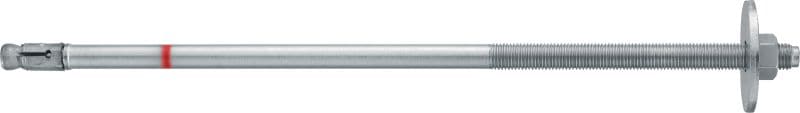

HST3 wedge anchor for timber
High-performance wedge anchor bolt with specialised washing machine for timber construction, for high static and seismic loads in cracked concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, FM (Factory Mutual), Seismic
Choose options
Anchor size
- M12
- M16
Anchor length
- 350 mm
- 365 mm
- 425 mm
- 475 mm
Pack size
- 10 pc
- 12 pc
- 16 pc
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual), Seismic
Base materials
Concrete (cracked)
Installation tools
TE 6-A36 Cordless rotary hammer, SIW 6AT-A22 Cordless impact wrench, DD 30-W Core drill
PROFIS software
Yes
Documents
Features & Applications
Features
- Designed for timber construction – longer wedge anchor length with wide washing machine is ideal for fixing wood beams to concrete with high loads, according to the DIN 1052 standard for timber construction
- Faster and simpler to instal correctly – requires no hole cleaning and compatible with the Hilti HS-SC setting tool for quick and easy setting
- Easier inspections – head marking showing anchor type and length to simplify quality control after setting
Applications
- Fastening wood beams or frames to concrete base materials
- Safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements
- Suitable for use in dry, indoor environments
For approval or certificate information, please see individual items.
