TE-CX (SDS Plus) Metric hammer drill bit
Hammer drill bit metric
- Connection end: TE-C (SDS-plus)
- Base material: Reinforced concrete, Concrete, Brick, Masonry
- Working mode: Hammer drilling
ultimate
Customers also searched for Hammer Drill bits, Combihammer, Concrete drill, SDS or SDS Plus.
Choose options
Diameter
- 5 mm
- 5.5 mm
- 6 mm
- 7 mm
- 8 mm
- 9 mm
- 10 mm
- 12 mm
- 14 mm
- 16 mm
- 18 mm
- 20 mm
- 22 mm
- 24 mm
- 25 mm
- 25.4 mm
- 28 mm
Working length
- 50 mm
- 80 mm
- 100 mm
- 150 mm
- 200 mm
- 250 mm
- 300 mm
- 400 mm
- 410 mm
- 440 mm
- 540 mm
- 550 mm
- 830 mm
- 1230 mm
Length
- 120 mm
- 150 mm
- 170 mm
- 220 mm
- 270 mm
- 320 mm
- 370 mm
- 470 mm
- 480 mm
- 510 mm
- 610 mm
- 620 mm
- 900 mm
- 1300 mm
Pack size
- 1 pc
- 8 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP644.10
Technical Data
Connection end
TE-C (SDS-plus)
Base material
Reinforced concrete, Concrete, Brick, Masonry
Working mode
Hammer drilling
Head shape
Multi cutter
Head material composition
Tungsten carbide
Number of cutting edges
4
Product class
Ultimate
Features & Applications
Features
- New solid carbide head for less wear and more holes with the accuracy required for setting anchors
- Innovative solid carbide head featuring the gradient technology for easy drilling through steel rebars
- Quadruple helix and optimum head geometry ensure consistently fast drilling progress over the entire life of the drill bit
- The indicator mark at the head ensures suitability for setting anchors - so long as the mark is visible
- In the unlikely event of breakage, the drill bit will be replaced so long as wear mark on helix is still visible
Applications

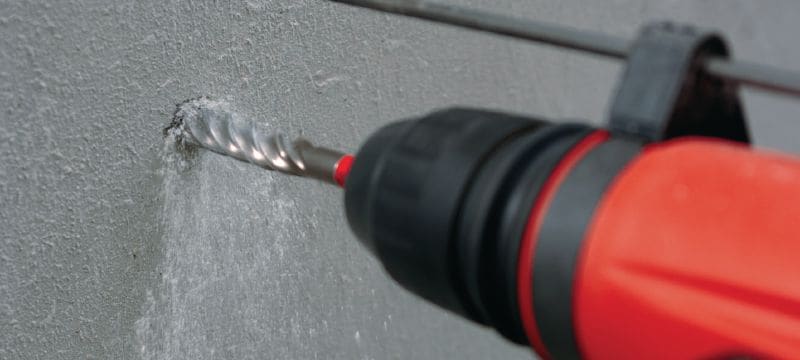

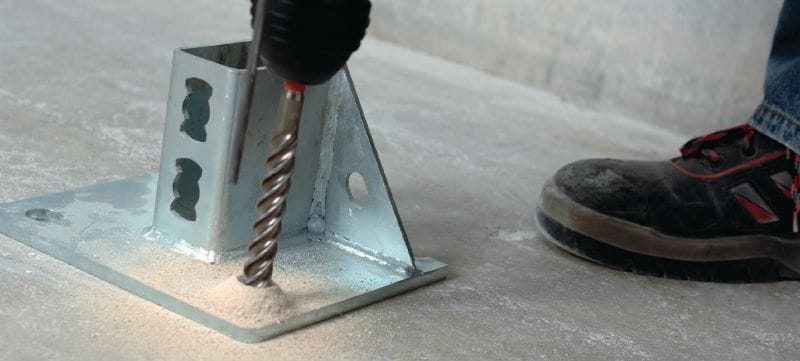

- Drilling holes for metal anchors in reinforced and unreinforced concrete
- Drilling holes for post-installed rebar connections
- Drilling drainage holes for drying out buildings
- Drilling through-holes for pipes and cables
For approval or certificate information, please see individual items.
