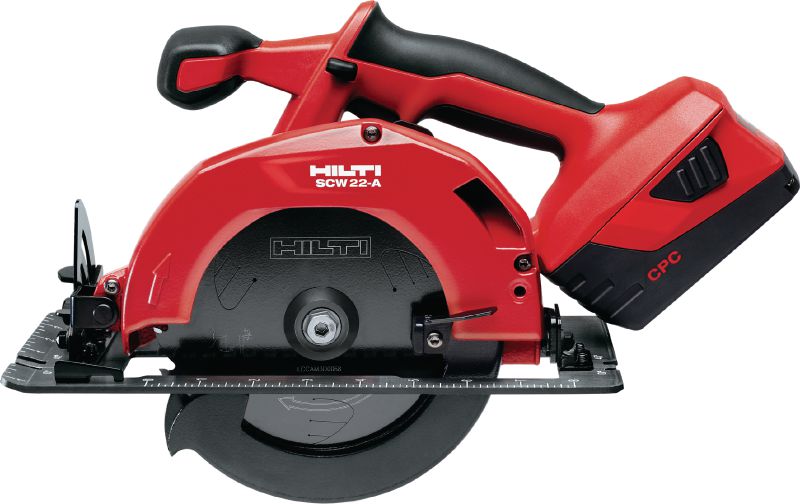

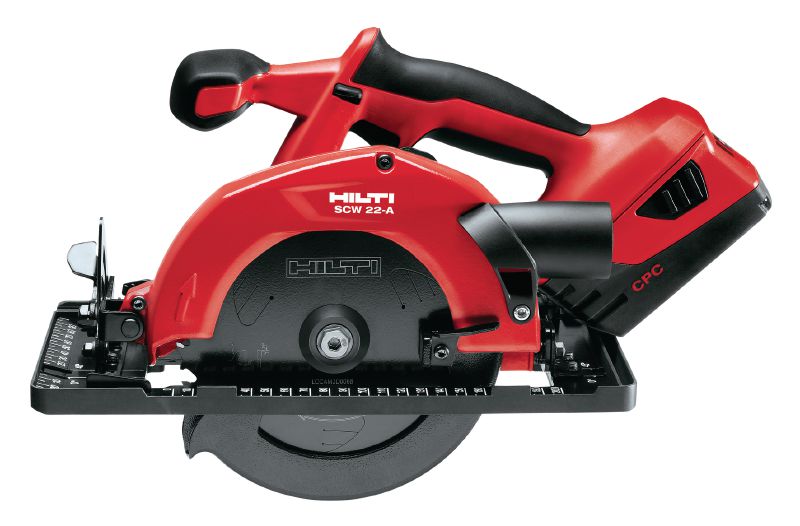

SCW 22-A Cordless circular saw
22V cordless circular saw with optimised power-to-weight ratio for straight cuts up to 57 mm depth
- Max. cutting depth: 57 mm
- Blade diameter: 165 mm
- Base material: Wood, Sandwich panel
Customers also searched for Circular Saw, Cordless, Saws, Orbital Saws or Metal cutting.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP33,676.00
Technical Data
Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Wood, Sandwich panel
No load RPM
gear 1: 4000 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
393 x 208 x 241 mm
Cutting depth at 45 degrees
42 mm
Max. bevel angle
50 °
Maximum Cross Cut Capacity
x
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
1.2 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Compact and mobile – for cut-as-you-go work on the jobsite
- Rapid blade stop and dust extraction for maximum safety
- Low weight makes the circular saw more versatile and less tiring to use in any position
- Suitable for use with the Hilti guide rail
- Dust extraction
Applications

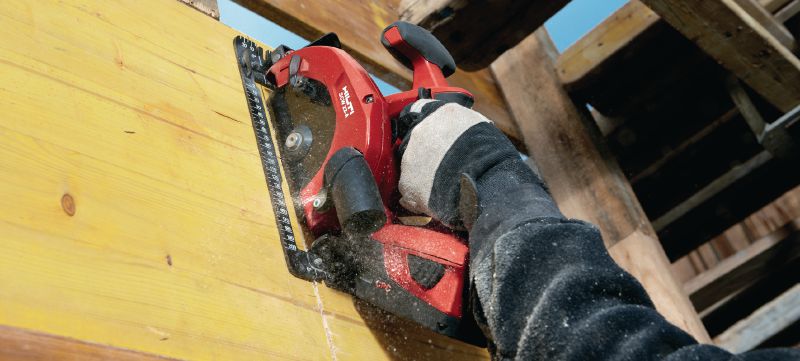

- General construction – cutting formwork boards, OSB, plywood, chipboard, plastics, rafters and battens

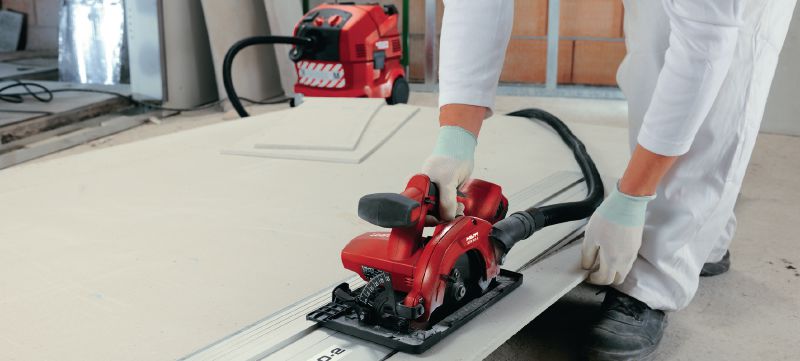

- Interior finishing – cutting plasterboard, cement board, MDF and HDF
- Cutting formwork boards, planks, battens, OSB, chipboard, plywood sheets and plastics
- Trimming and fitting wood and sheet materials
- Ripping and crosscutting as well as bevel and mitre cuts
For approval or certificate information, please see individual items.
