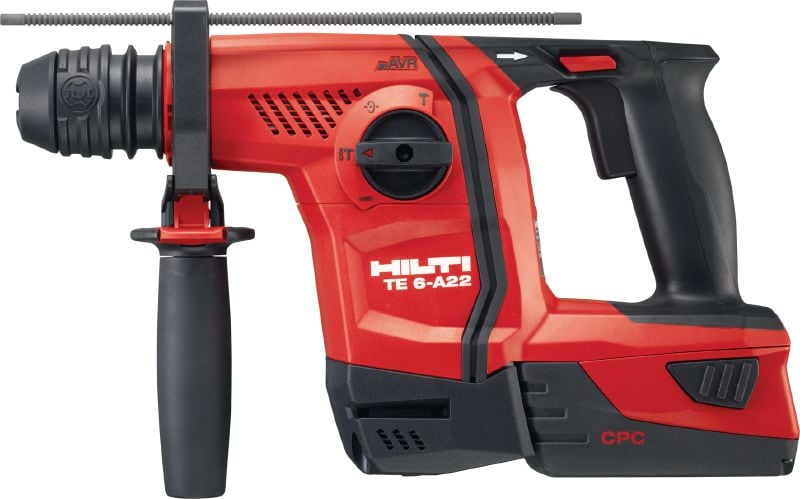

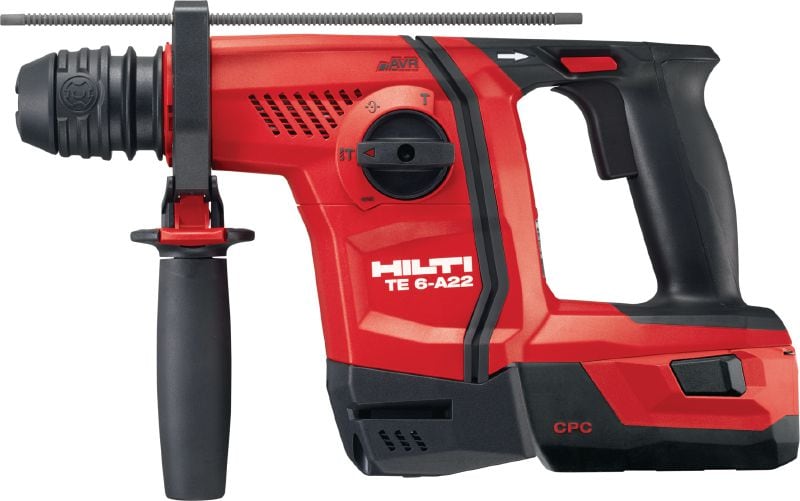

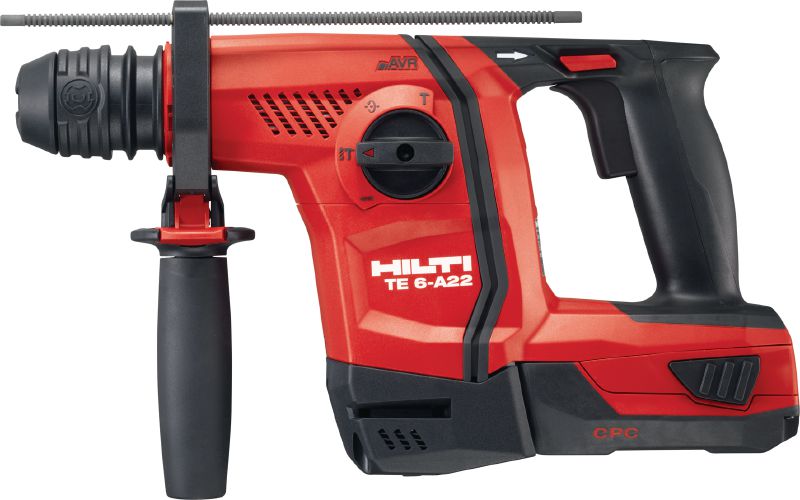

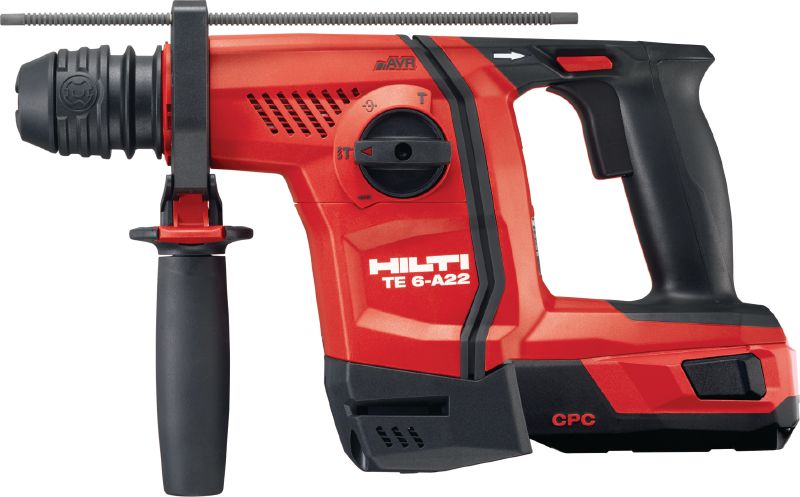

TE 6-A22 Cordless rotary hammer

L096768 (178534)
L096770_HNA (202818)
L096770_v1_HNA (202849)
L096767 (178533)
L097788_cropped (180145)
L097699_cropped (180143)
L097688_cropped (180141)
L110466_cropped (191060)
L096768 (178534)
L096770_HNA (202818)
L096770_v1_HNA (202849)
L096767 (178533)
L097788_cropped (180145)
L097699_cropped (180143)
L097688_cropped (180141)
L110466_cropped (191060)

Powerful D-grip 22V cordless rotary hammer with superior concrete drilling and chipping performance

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.7 kg
  • Optimum hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.5 J

Customers also searched for hammer drill, sds drill, drill, Drill or 22V.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.7 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.5 J
Hammer drilling diameter range
4 - 20 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Vibration Reduction (AVR), Removable chuck, LED working light, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
19.9 m/s² 1
Triaxial vibration for chiselling in concrete
10.9 m/s² 2
A-weighted emission sound power level
100 dB (A) 3
A-weighted emission sound pressure level
89 dB (A) 4
Dust removal system available
TE DRS-6-A, TE DRS-D, TE DRS-S, DCD
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Powerful, cordless rotary hammer, designed for serial anchor hole drilling in concrete
  • Full compatibility with all Hilti 22V batteries
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Virtually dustless drilling when used with the DRS-6-A dust removal system
  • Quick-change TE-C Click chuck for versatility and ease of use

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Occasional drilling in wood and steel with optional quick-release chuck
  • Screwdriving using the special bit holder with a TE-C (SDS Plus) connection end
  • Drilling in concrete in clean areas using the DRS-6-A (02) integrated dust removal system
  • Light chiselling

For approval or certificate information, please see individual items.
