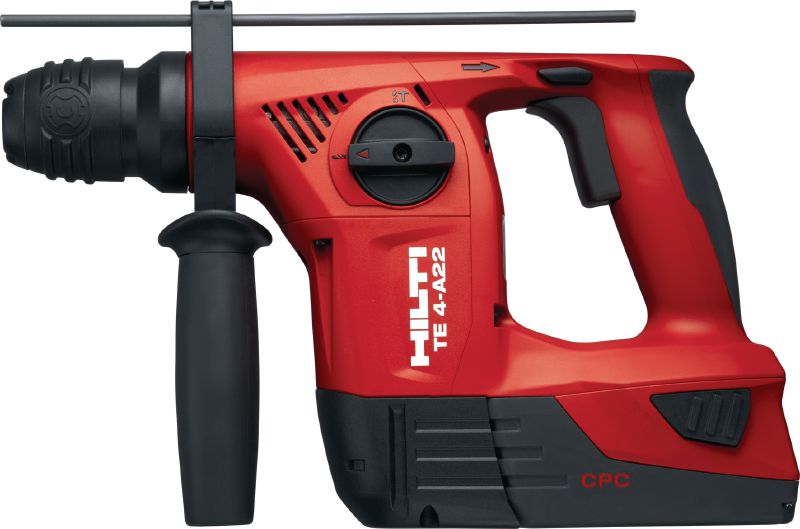

TE 4-A22 Cordless rotary hammer

Cordless rotary hammer TE 4-A22 case #2098475

TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69379)
TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69374)
TE 4-A22, TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69375)
TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69379)
TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69374)
TE 4-A22, TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69375)
Cordless In charge - Hilti B22 battery

Compact D-grip 22V cordless rotary hammer with superior handling in serial applications

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.3 kg
  • Optimum hammer drilling range: 5 - 12 mm
  • Single impact energy: 2 J

Customers also searched for Cordless, Rotary, Drill or Hammer Drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Piece
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

PHP36,582.00

PHP36,582.00 / 1 Piece

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.3 kg
Optimum hammer drilling range
5 - 12 mm
Single impact energy
2 J
Hammer drilling diameter range
4 - 18 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5200 impacts/minute
Functionality
Integrated Dust Removal System (DRS), Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
13.1 m/s² 1
A-weighted emission sound power level
99 dB (A) 2
A-weighted emission sound pressure level
88 dB (A) 3
Dust removal system available
TE DRS-4-A, TE DRS-D, TE DRS-S
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Ergonomically designed D-grip for comfortable use over long periods
  • Robustly built and engineered specifically for high-performance cordless drilling
  • Excellent performance-to-weight ratio and compact design

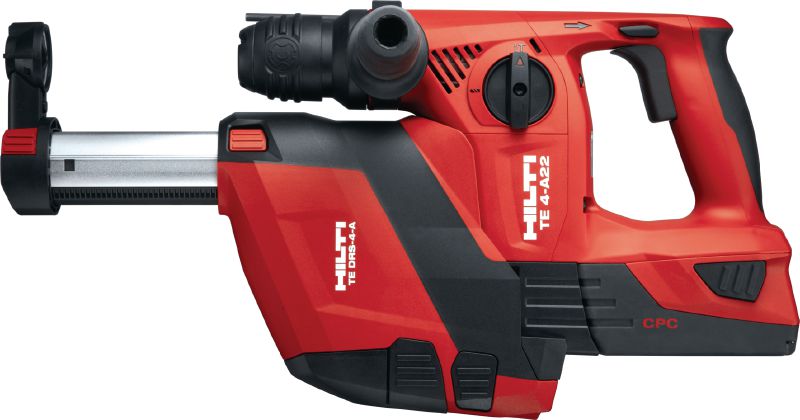

  • Virtually dustless drilling when used with the DRS-4-A dust removal system
  • Electronic switch for precise hole-starting

Applications

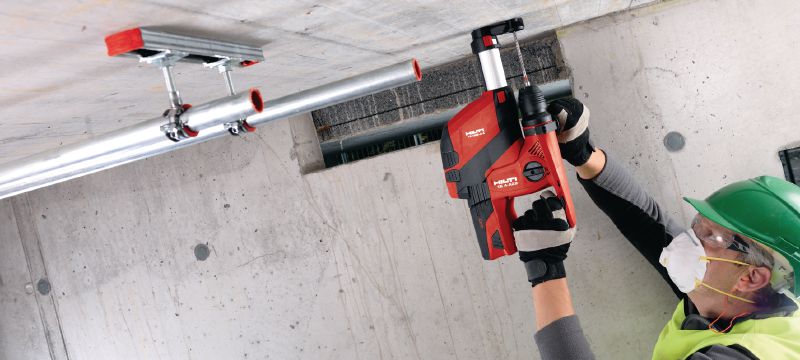

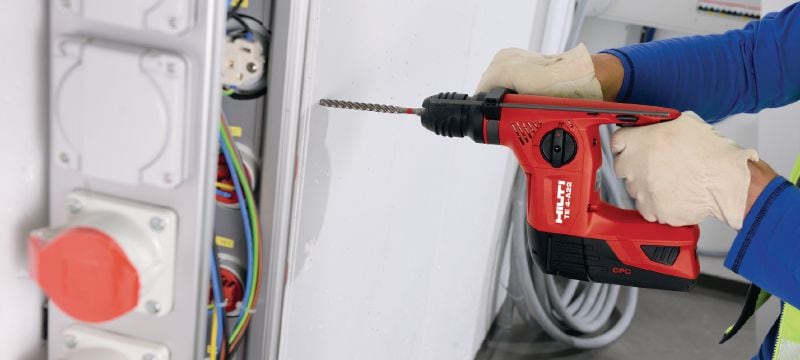

  • Drilling and hammer drilling in concrete and masonry
  • Occasional drilling in wood and steel with optional chuck adapter
  • Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

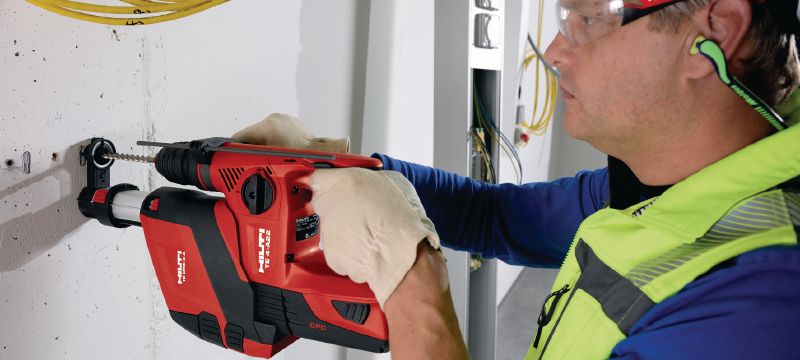

  • Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)

Services

Hilti Tool Service

  • Servicing is free of charge for up to 1 year, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services
