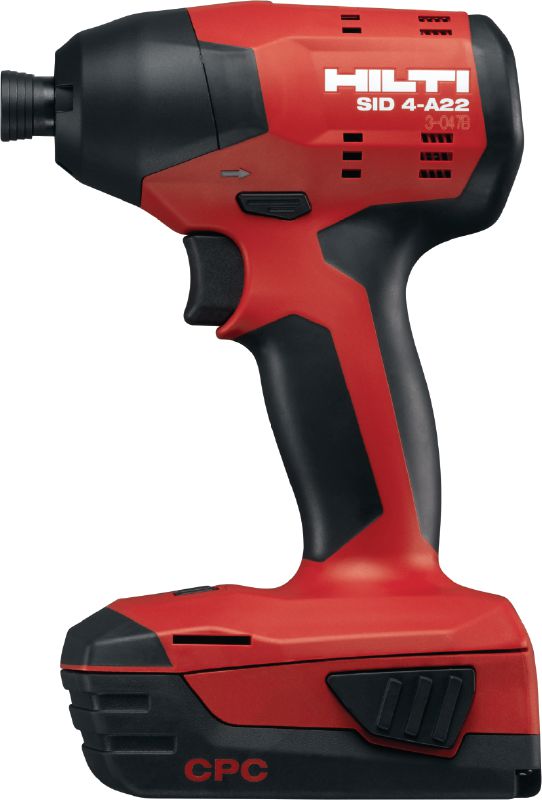

SID 4-A22 Cordless impact driver
Compact-class 22V cordless impact driver with 1/4" hexagonal click-in chuck for medium-duty work
- Feature: LED light around the chuck
- Chuck type: 1/4" hexagonal click-in
- No load RPM: gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2700 rpm
Customers also searched for Impact Driver, Cordless, Battery, Screw Fastening or Metal.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP22,769.00
Technical Data
Feature
LED light around the chuck
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2700 rpm
Maximum torque
60 Nm (1); 110 Nm (2); 194 Nm (3) 1
Full hammering frequency
3500 impacts/minute
Number of gears
3
Dimensions (LxWxH)
147 x 93 x 224 mm
Tool body weight
0.95 kg
A-weighted emission sound pressure level
87 dB (A) 2
Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)
12 m/s²
Rated voltage
21.6 V
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
- Three gears and electronic speed control for easy switching between different driving speeds
- Ergonomic grip and trigger for maximum comfort and convenience during long periods of use
- Robust 1/4" hexagonal click-in chuck
- Four bright LEDs around the chuck provide direct illumination of the work surface
Applications
- Driving self-drilling and self-tapping screws up to 4.8 mm diameter in steel
- Driving 6 mm diameter HUS screw anchors in masonry and concrete
- Driving Spax screws up to 8 mm diameter in wood
- Driving 8 mm and 10 mm HRD frame anchors in masonry and concrete
- Drilling in wood with WDB-S spade bits
For approval or certificate information, please see individual items.
