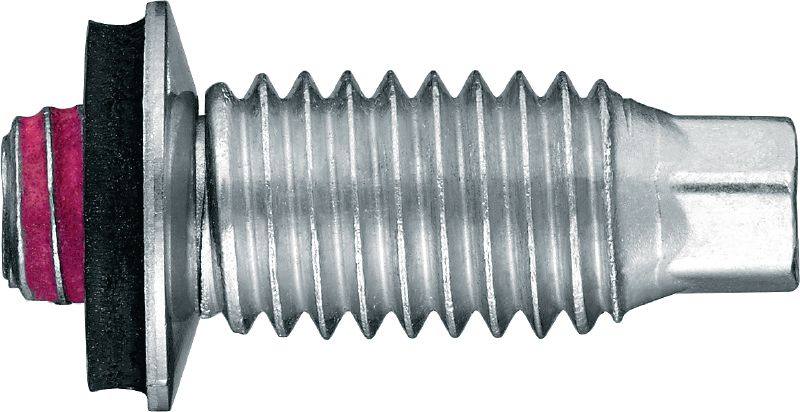

S-BT GR Screw-in stud
New product UltimateItem #r6194279
Threaded screw-in stud (stainless steel, metric thread) for grating fastenings on steel and aluminium in highly corrosive environments
- Material: Duplex stainless steel (1.4462)
- Thread size: M8
- Product class: Ultimate
Share
Customers also searched for sbt, chequer plate, 6mm, fcm or grating
Features
- No rework necessary on coated steel – corrosion protection remains intact
- For use in highly corrosive environments (C4 and C5) – suitable for most energy and industry applications
- Suitable for use on steel with a thickness of 6 mm (1/4") and greater
- Portable, cordless system eliminates the need for long electric extension cords
- No propellant required
Applications

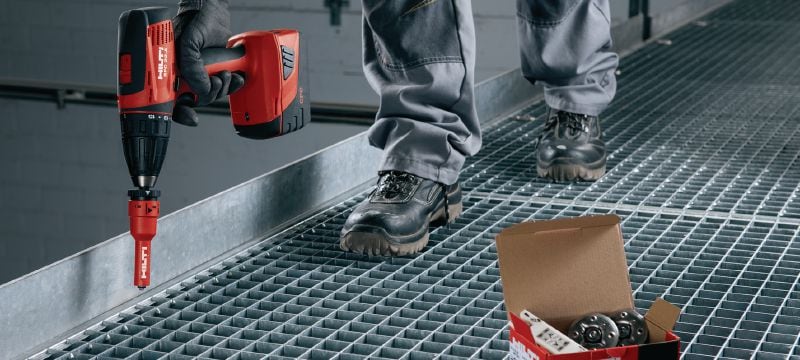

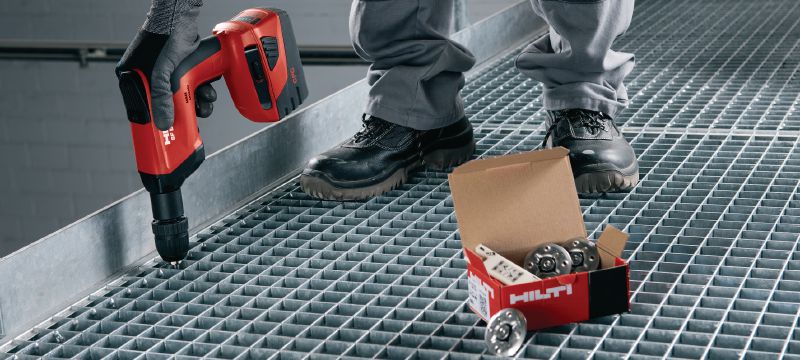

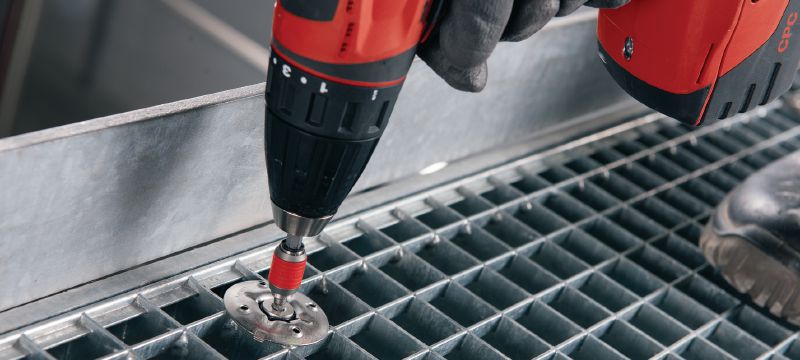

- Fastening grating to steel structures using the X-FCM-R grating disc
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-20/0530_S-BT_2020.09.18_en, English, German, [ 3.3 MB ]
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
- ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English, [ 1.7 MB ]
- BV Type Approval 45116/B0_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R_(NG), X-FCM-M-(NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 535 kB ]
Application videos
-
S-BT fastening system - Fast. Simple. Reliable.
Support and maintenance videos
-

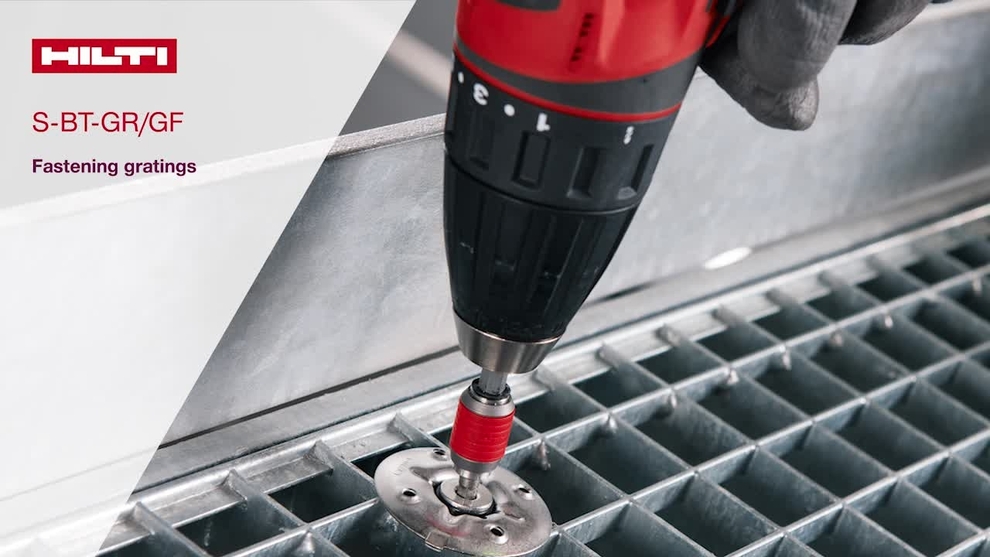

S-BT-GF / S-BT-GR - Fastening gratings.
