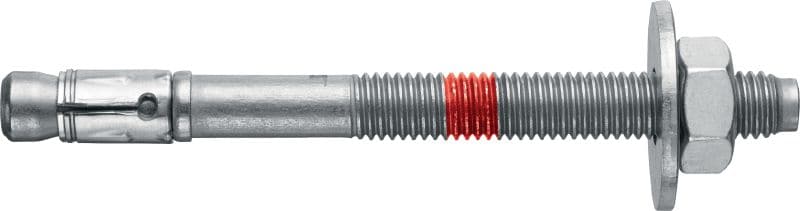

HST3-R BW Wedge anchor
Ultimate-performance anchor for cracked concrete and seismic (A4 SS + big washer)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, FM (Factory Mutual), Seismic
Choose options
Anchor size
- M16
Anchor length
- 145 mm
Pack size
- 12 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP37,054.80
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual), Seismic
Base materials
Concrete (cracked)
Installation tools
SIW 4AT-22 ½” Cordless impact wrench, SIW 6-22 ½” Cordless impact wrench, DD 30-W Core drill, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes
Environmental conditions
Indoor with temporary condensation
Documents
Features & Applications
Features
- More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
- Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
- Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
- Easier inspections – head marking showing anchor type and length to simplify quality control after setting
- Large DIN 9021 washer – suitable for use in oversized or slotted clearance holes
Applications
- Stainless steel wedge anchor with larger washer for all safety-relevant fastenings in cracked and uncracked concrete in corrosive environments
- All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

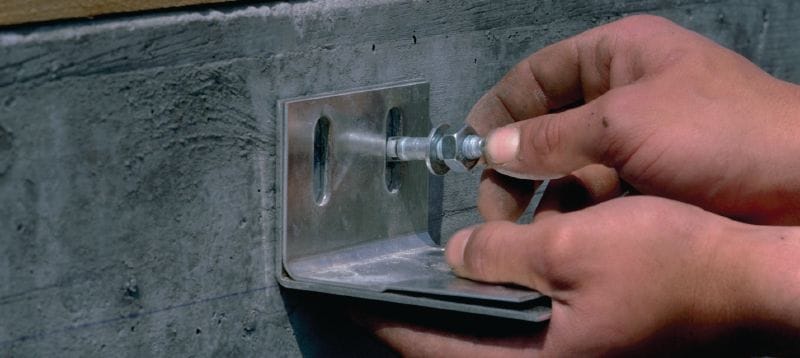

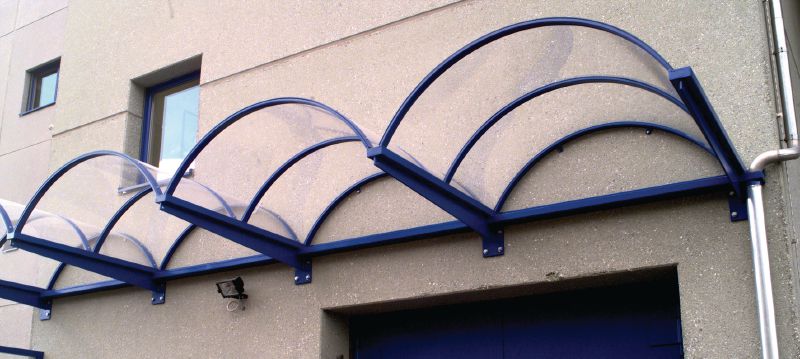

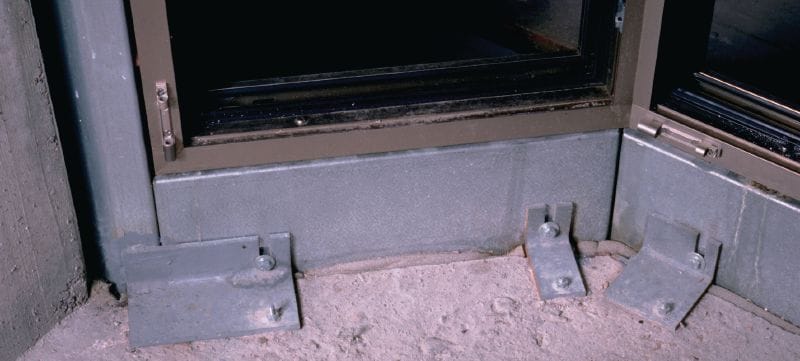

- Fastening baseplates, handrails, façade systems, machinery or racking to concrete when corrosion resistance is required
- Suitable for use in corrosive environments
For approval or certificate information, please see individual items.
