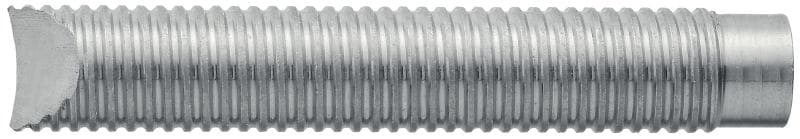

HIS-RN Internally threaded sleeve
High-performance internally threaded insert for capsule and injectable hybrid/epoxy anchors (A4 stainless steel)
- Material, corrosion: Stainless steel, A4
- Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
- Base materials: Concrete (cracked), Concrete (non-cracked)
Customers also searched for internally threaded anchor rod stainless or internally threaded chembolt stainless.
Choose options
Material composition
- Stainless steel A4-70
Anchor size
- M8
- M10
- M12
- M16
- M20
Anchor length
- 90 mm
- 110 mm
- 125 mm
- 170 mm
- 205 mm
Head configuration
- Inner thread
Pack size
- 5 pc
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP8,370.00
Technical Data
Material, corrosion
Stainless steel, A4
Environmental conditions
Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Fire, ICC-ES report (concrete), Seismic
Type of fastening
Pre-fastening
Documents
Features & Applications
Features
- Internally threaded to allow flush installation and easy removal of bolts
- Features a chisel tip to cut and mix the Hilti HVU capsule (to be installed using the HIS-S setting tool)
- Designed for use in solid concrete with Hilti HVU capsules and various other Hilti injectable adhesive mortars
Applications
- Suitable for internally-threaded fastenings in concrete using various Hilti injectable adhesive mortars and Hilti HVU capsules
For approval or certificate information, please see individual items.
