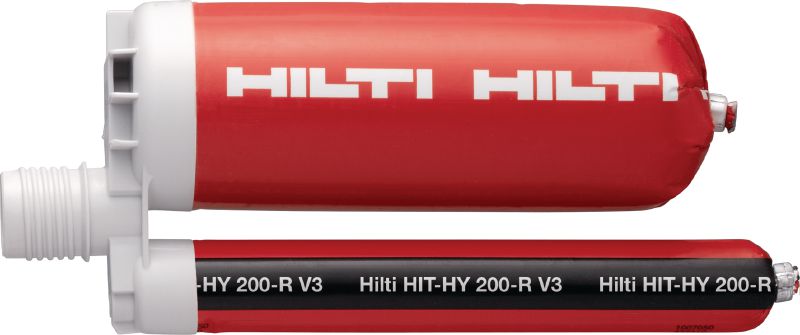

HIT-HY 200-R V3 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L061441_v1 (203673)
L142103_HNL_cropped (2282877)
L142088_HNA_cropped (2282857)
L131948_cropped (3155310)
L120580_cropped (204527)
L120587_cropped (204508)
L120633_cropped (204515)

Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural baseplates

  • Base materials: Concrete (non-cracked)
  • Base material condition: Dry
  • Approvals / test reports: ETA

Customers also searched for Hybrid, Base Plate, Fast cure, Mortar or Rebar.

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP5,896.80

Technical Data

Base materials
Concrete (non-cracked)
Base material condition
Dry
Approvals / test reports
ETA
PROFIS software
Yes
Anchoring elements
HAS threaded rods, HAS-U threaded rods, HIT-Z torque-controlled bonded anchors, Rebar
Environmental conditions
Dry indoor
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 120 °C
Free of styrene
Yes

Documents

Technical information
Approval document
Certificate
HSE Information
Material safety datasheet
Sustainability Documentation
Operating Instruction
Battery Recycling Information
pdf Tech_HIT-HY 200-R V3_2023_en, English [ 3.6 MB ]
pdf Technical Datasheet HY 200-A/R V3 concrete to concrete, English [ 1.5 MB ]
pdf Technical data sheet for Hilti HIT-HY 200-A-R-V3 steel to concrete injectable mortar, English [ 2.1 MB ]
pdf Whitepaper fire design of PIR applications, English [ 1.4 MB ]
pdf TR 066 White paper W4595 (EN), English [ 2.3 MB ]

Features & Applications

Features

  • Optimised for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range from -10 to +40°C
  • Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
  • Versatile adhesive anchor for wide ranging conditions – approved for hammer drilled, hollow drilled and diamond cored holes (with TE-YRT).
  • Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Extensive approvals available – including ETA for cracked and uncracked concrete, seismic C2, fire resistance data and with service life up to 100 years in rebar and anchor

Applications

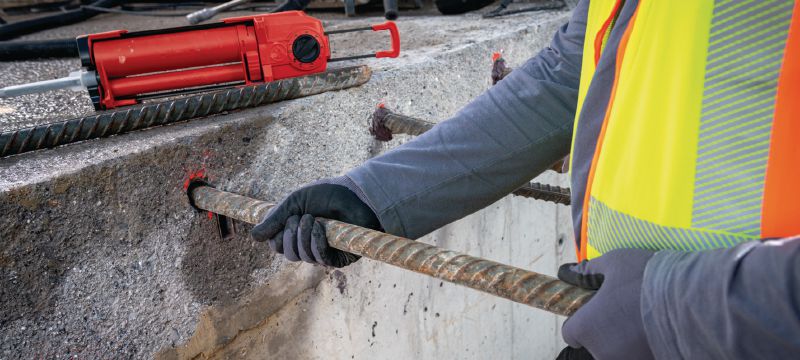

  • Structural concrete connections with post-installed rebar
  • Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete

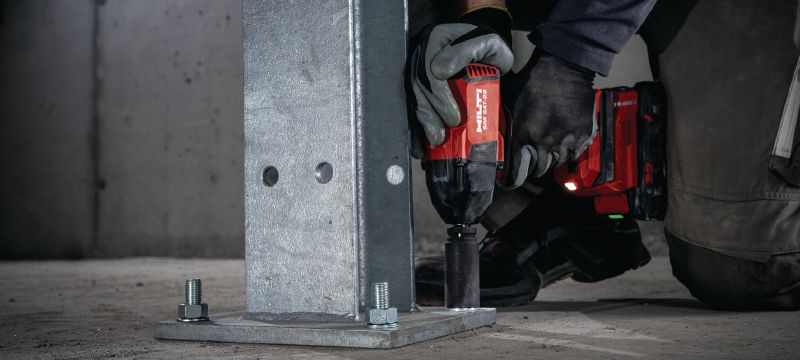

  • Anchoring structural steel connections (e.g. steel columns, beams) to concrete
  • Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
  • Concrete connections designed both as rigid and as simply supported

For approval or certificate information, please see individual items.
