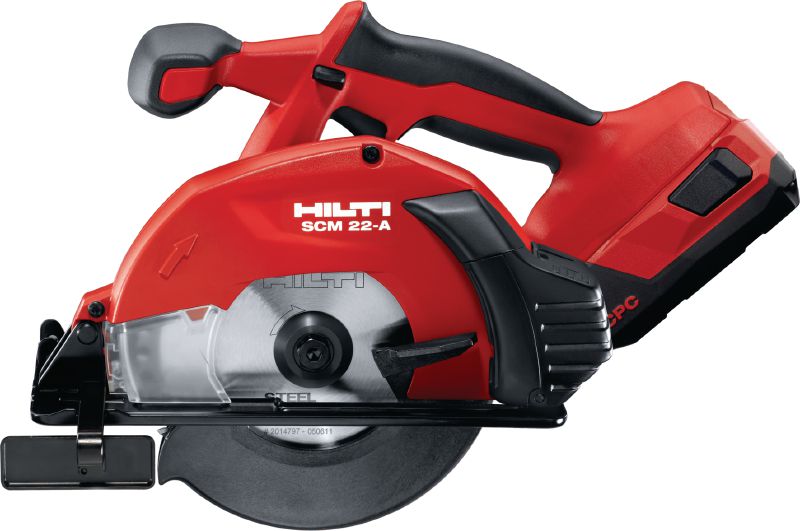

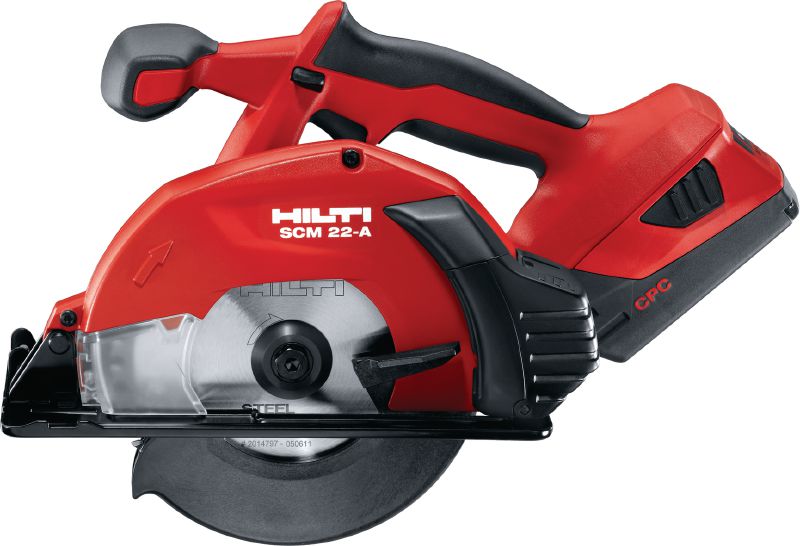

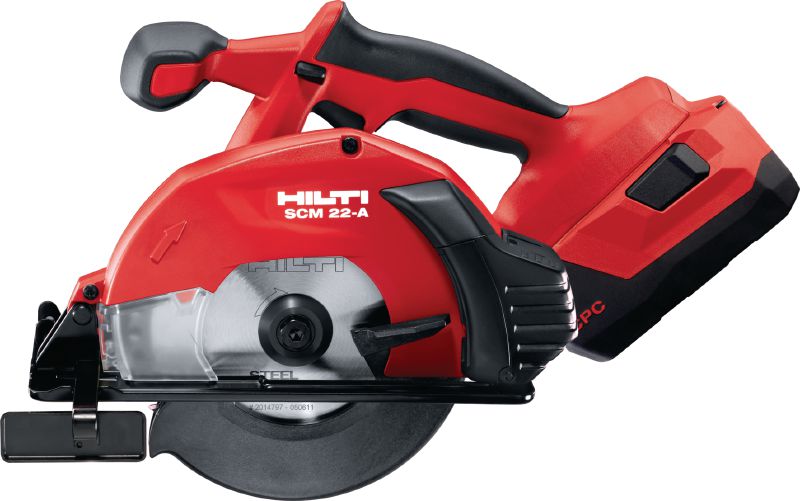

SCM 22-A Cordless metal saw
Cordless 22V circular saw operated by Li-ion battery featuring guide rail compatibility and metal chip collector for cold metal cutting
- Max. cutting depth: 57 mm
- Blade diameter: 165 mm
- Base material: Metal, Sandwich panel
Customers also searched for Circular Saw, Cordless, Saws, Orbital Saws or Metal cutting.
Technical Data
Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Metal, Sandwich panel
No load RPM
gear 1: 3500 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
370 x 206 x 242 mm
Maximum Cross Cut Capacity
x
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for sawing into metal (ah,M)
0.82 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- More than 100 cuts in MQ41 channel possible with one battery charge
- Weight of less than 4 kg for best handling and ease of use
- Blade brake stops the blade in less than 0.5 sec for maximum safety and convenience
- Effective chip collector for a clean working environment
- LED lamp built into the front section of the blade guard for shadowless illumination of the cutting line
Applications
- Cutting channels and pipes on the jobsite quickly, with the highest possible accuracy
- Cutting openings in sheet metal in heating and air conditioning installation work

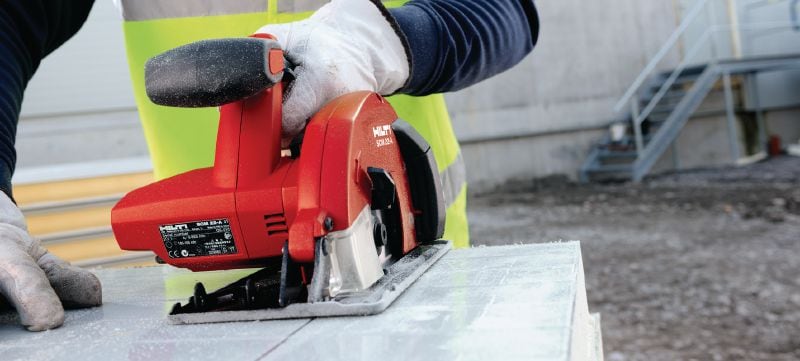

- Cutting sandwich panels, mesh and corrugated sheet metal
- Corrective cutting and trimming of sheet metal on the jobsite
- Cutting channels, pipes, conduits and profiles quickly and accurately
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 1 year, including wear and tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- After the no-cost period, repair costs are capped
- 1-month no-cost period after each paid repair
- Exclusive use of genuine Hilti spare parts
