TE 6-A36 Cordless rotary hammer






Powerful D-grip 36V cordless rotary hammer with superior concrete drilling and chipping performance
- Weight according to EPTA-Procedure 01/2003 without battery: 3.7 kg
- Optimum hammer drilling range: 4 - 16 mm
- Single impact energy: 2.5 J
Customers also searched for Cordless, Rotary, Drill or Hammer Drill.
Choose options
Quantity
Total Pieces
NaN
You can not see your company prices
Discounted net
Price loading error occured
Please contact us
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
3.7 kg
Optimum hammer drilling range
4 - 16 mm
Single impact energy
2.5 J
Hammer drilling diameter range
4 - 20 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Vibration Reduction (AVR), Integrated Dust Removal System (DRS), Removable chuck, LED working light, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
16.8 m/s² 1
Triaxial vibration for chiselling in concrete
8.1 m/s² 2
A-weighted emission sound power level
102 dB (A) 3
A-weighted emission sound pressure level
91 dB (A) 4
Dust removal system available
TE DRS-6-A, TE DRS-D, TE DRS-S, DCD
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Features & Applications
Features
- Extremely powerful rotary hammer, designed for serial concrete drilling
- Very convenient and lightweight for superior handling
- High run time flexibility thanks to powerful and fast-charging 36V Li-Ion batteries
- Active Vibration Reduction (AVR) system designed to increase user comfort and productivity
- Virtually dustless drilling with the DRS-6-A dust removal system
Applications

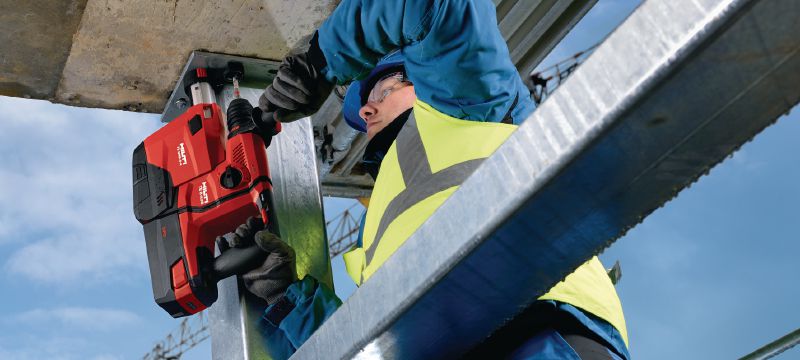

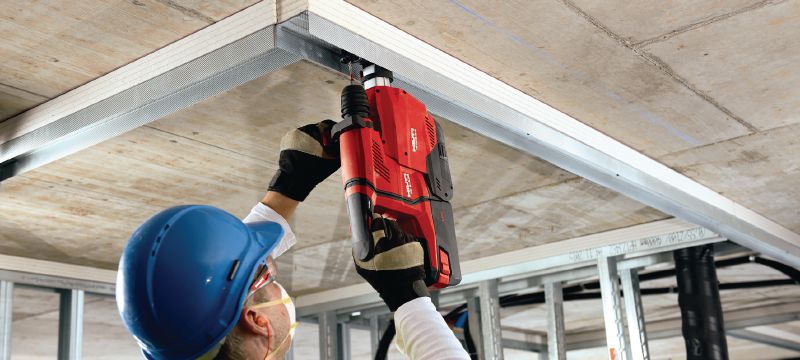

- Drilling and hammer drilling in concrete and masonry
- Occasional drilling in wood and steel with optional quick-release chuck
- Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

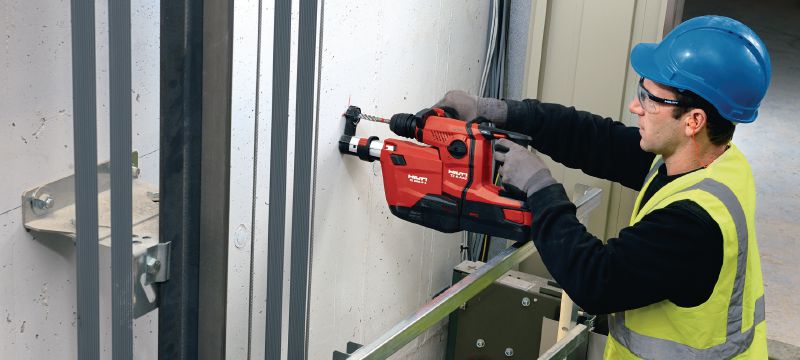

- Drilling in concrete in clean areas using the DRS-6-A (02) integrated dust removal system
- Light chiselling
For approval or certificate information, please see individual items.
Related Products
Ultimate SDS Plus (TE-C) hammer drill bit for virtually dust-free drilling in concrete
Extra-sharp SDS Plus (TE-C) brick channel chisels for gouging channels in masonry
self-sharpening SDS Plus (TE-C) tile chisels for scraping away surface materials
Services
Hilti Tool Service
- Servicing is free of charge for up to 1 year, including wear and tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- After the no-cost period, repair costs are capped
- 1-month no-cost period after each paid repair
- Exclusive use of genuine Hilti spare parts
