TE 70-AVR Rotary hammer
Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty concrete drilling and chiselling, with Active Vibration Reduction (AVR)
- Weight according to EPTA-Procedure 01/2003 without battery: 8.3 kg
- Weight class: 7 kg
- Single impact energy: 11.5 J
Customers also searched for Combihammer, Concrete Drilling, Powertools, Drill or SDS Max.
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
8.3 kg
Weight class
7 kg
Single impact energy
11.5 J
Hammer drilling diameter range
12 - 150 mm
Optimum hammer drilling range
20 - 45 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
2760 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
9.0 m/s² 2
Rated input power
1800 W
Dimensions (LxWxH)
540 x 125 x 305 mm
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
105 dB (A) 4
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Highest productivity for a wide range of drilling and chiselling applications
- Low contact pressure for high user comfort
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Optional DRS-Y dust removal system collects up to 95% of dust
- Ruggedly built for a long lifetime
Applications
- Hammer drilling in concrete, masonry and natural stone using bits in the 12-150 mm diameter range
- Drilling holes for heavy-duty anchors from 20-40 mm in diameter

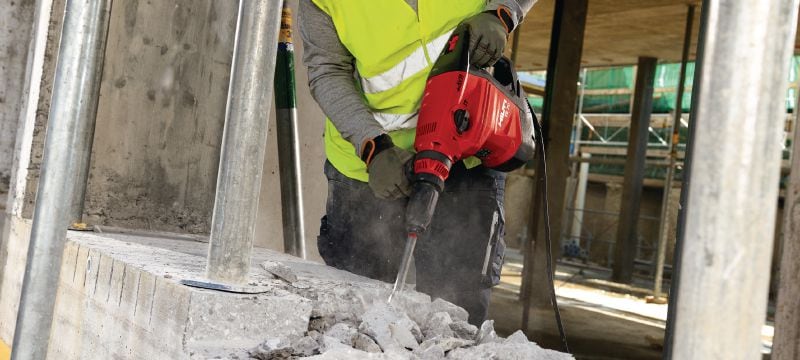

- Breaching and demolition using pointed and flat chisels
- Drilling with high torque in wood and steel
- Hammer drilling in concrete, masonry and natural stone using bits in the 1/2" - 6" diameter range
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- After the no-cost period, repair costs are capped
- 1-month no-cost period after each paid repair
- Exclusive use of genuine Hilti spare parts
