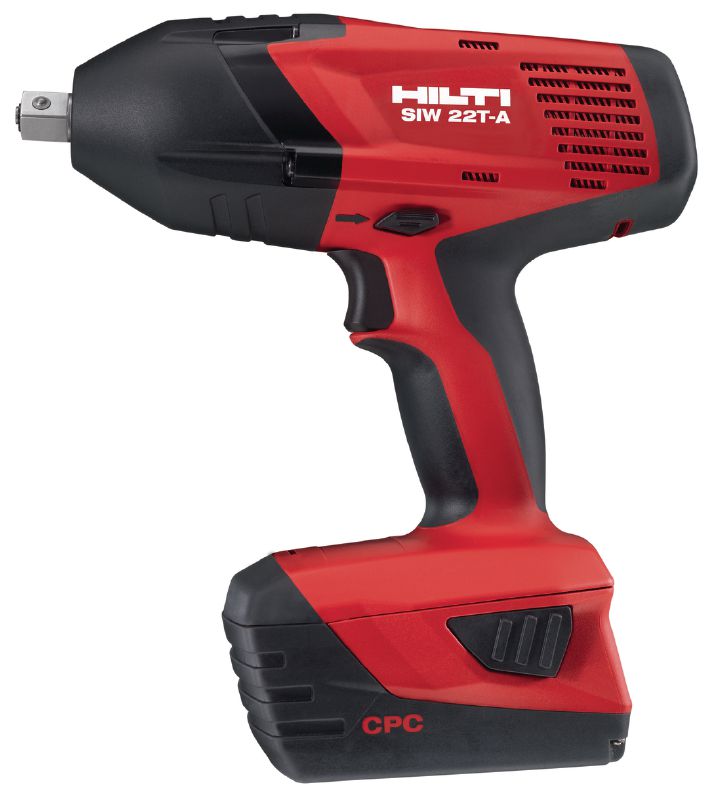

SIW 22T-A 1/2" Cordless impact wrench
Ultimate-class 22V high-torque cordless impact wrench with 1/2" detent pin anvil for anchoring and bolting
- Anvil type: 1/2" detent pin
- Maximum torque: 450 Nm (1)
- Full hammering frequency: 2500 impacts/minute
Customers also searched for Impact Wrench, Cordless, Battery, Screw Fastening or Metal.
Technical Data
Anvil type
1/2" detent pin
Maximum torque
450 Nm (1) 1
Full hammering frequency
2500 impacts/minute
Number of gears
1
No load RPM
gear 1: 2000 rpm
Dimensions (LxWxH)
232 x 94 x 258 mm
Tool body weight
2.17 kg
A-weighted emission sound pressure level
97 dB (A) 2
Rated voltage
21.6 V
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- ½" square drive with heavy-duty detent pin retention for security and quicker socket changing
- Reduce uncontrollable spinning thanks to tangential impact – helps to make electric impact wrenches less tiring to use
- High-grade steel anvil featuring special heat treatment for extra-long life
- Optimised as a system for driving Hilti HUS screw anchors and HRD frame anchors
- Finely-tuned impact mechanism – for maximised efficiency from a battery-powered impact wrench
Applications

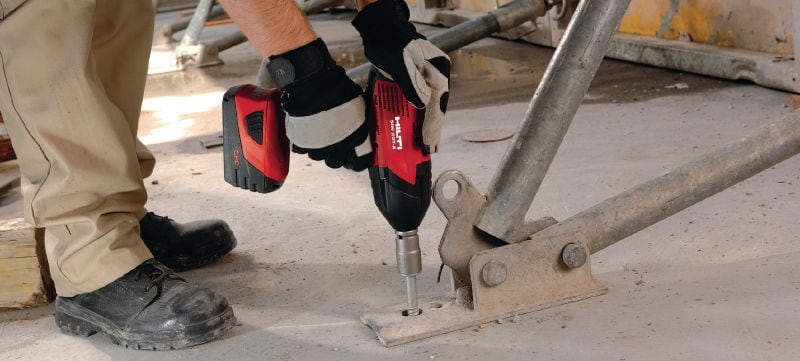

- Driving HUS3 screw anchors from 8 mm to 14 mm diameter in concrete

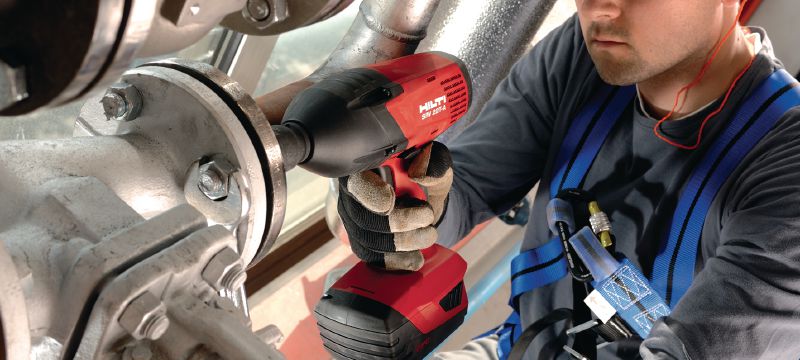

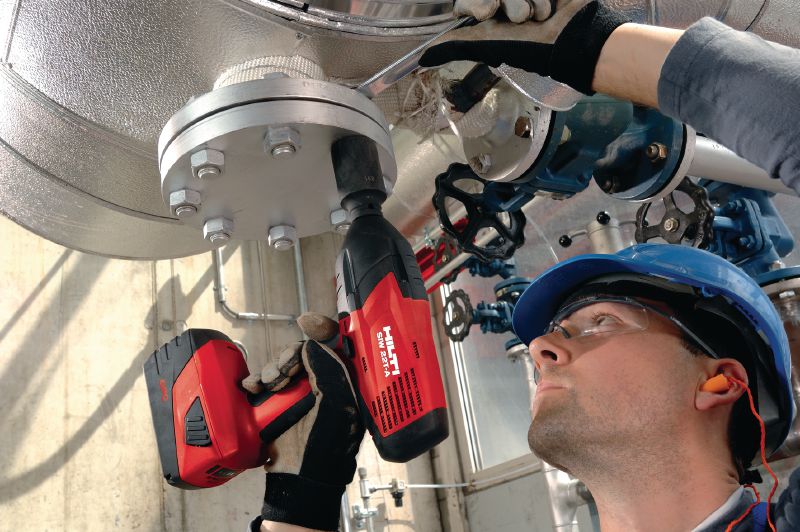

- Tightening and releasing nuts and bolts from M12 to M20
- Assembling steel profiles, timber or pre-cast concrete components
- Installing HCA coil anchors in concrete
- Driving lag bolts and chipboard screws up to 5/8" in wood (pre-drilling may be necessary)
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 1 year, including wear and tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- After the no-cost period, repair costs are capped
- 1-month no-cost period after each paid repair
- Exclusive use of genuine Hilti spare parts
