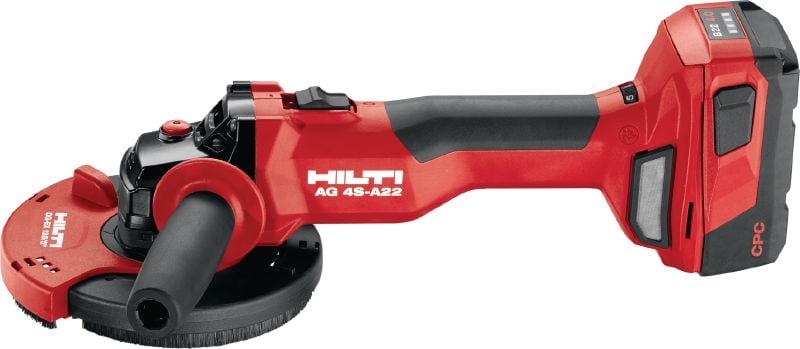

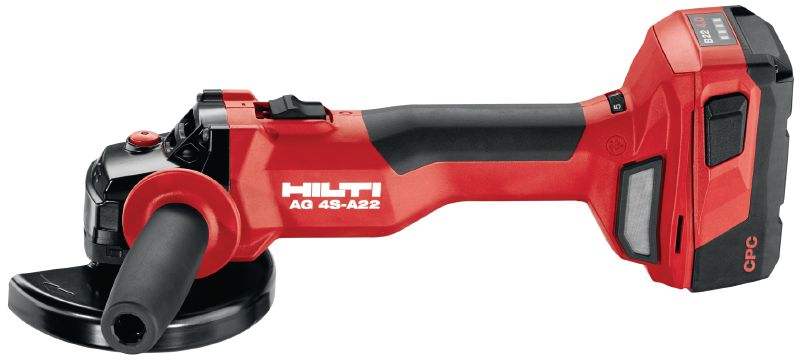

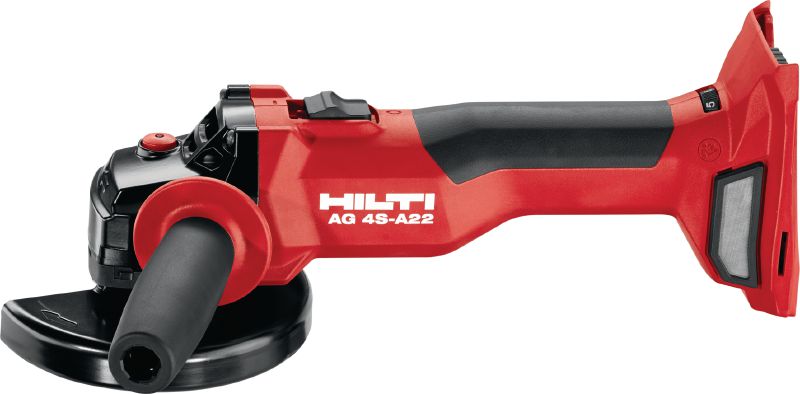

AG 4S-A22 (100) Cordless angle grinder

Cordl. angle grinder AG 4S-A22-100 box #2215867

L136223 (196814)
L137154 (198354)
L137155 (198353)
L137157 (198351)
L137163 (198349)
L116487_cropped (198496)
L116490_cropped (198660)
L116494_cropped (198651)
L116499_cropped (198653)
L116501_cropped (198652)
L116507_cropped (198662)
L136223 (196814)
L137154 (198354)
L137155 (198353)
L137157 (198351)
L137163 (198349)
L116487_cropped (198496)
L116490_cropped (198660)
L116494_cropped (198651)
L116499_cropped (198653)
L116501_cropped (198652)
L116507_cropped (198662)

22V cordless angle grinder with electronic speed control and brushless motor for everyday cutting and grinding with discs up to 100 mm

  • Rated voltage: 21,6 V
  • Disc diameter: 100 mm
  • Max. cutting depth: 23 mm

Customers also searched for battery grinder, grinder, cordless grinder, 22v grinder or grinders.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Piece
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Rated voltage
21,6 V
Disc diameter
100 mm
Max. cutting depth
23 mm
No load RPM
gear 1: 3400 rpm; gear 2: 3800 rpm; gear 3: 4400 rpm; gear 4: 5200 rpm; gear 5: 6300 rpm; gear 6: 7600 rpm
Trigger type
Lockable on / off
Dimensions (LxWxH)
306 x 85 x 138 mm
A-weighted emission sound pressure level
81.5 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
1.1 m/s² 2
Disclaimer
Use the specified guard for the type of disc selected
Weight according to EPTA-Procedure 01/2003 without battery
3 kg
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Brushless motor – lasts up to three times longer (no commutator to damage and no carbon brushes to change)
  • Very slim design with lock-on switch – this cordless angle grinder fits firmly in your grip, for more comfortable handling and precise control even in hard-to-reach places
  • Precise speed control from 3400-7600 rpm (max.8500) – you can use higher speeds to cut and grind very quickly, while the lower speeds help you to achieve a perfect surface finish
  • Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the disc jams – helping to reduce a common safety hazard
  • Cordless tool platform – the same battery for all 22V Hilti tools

Applications

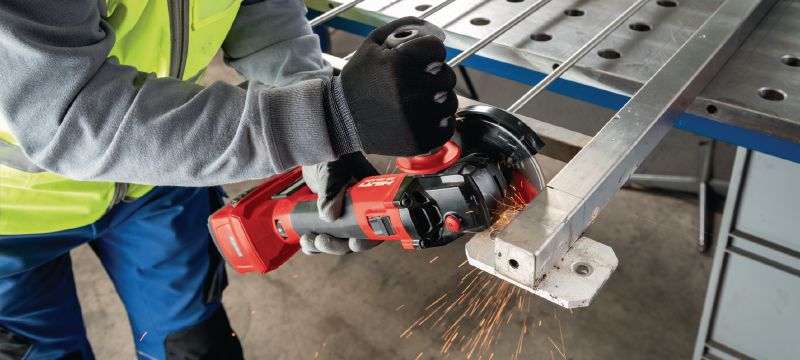

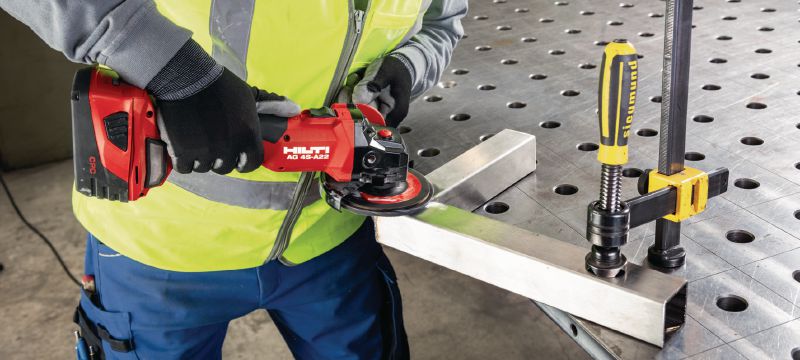

  • Cutting and grinding steel, stainless steel and other metals
  • Finishing
  • Deburring and polishing metal
  • Cutting and grinding mineral materials
  • Cutting tiles using continuous-rim diamond discs
