DD 160 Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
61792.tif
Drill Stand
Drill Stand
61789.tif
61791.tif
61790.tif
61788.tif

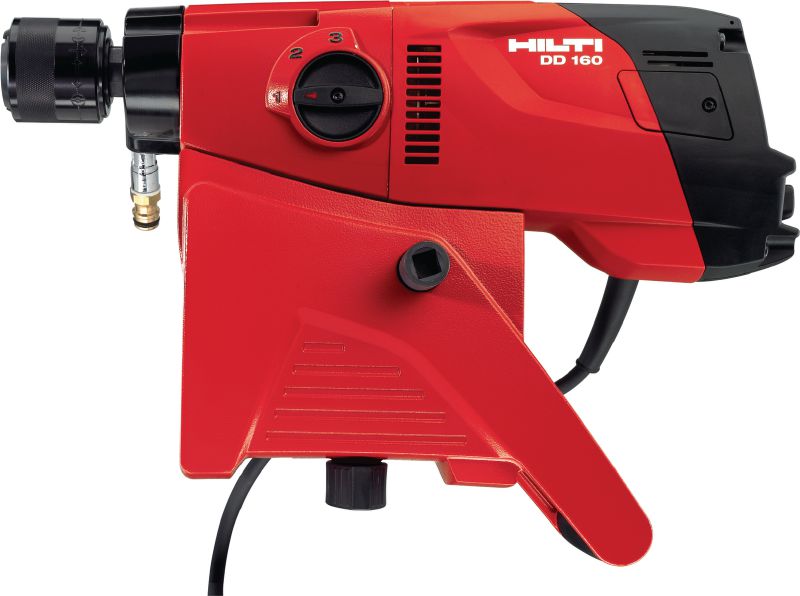

Compact but powerful diamond coring machine for rig-based concrete coring from 25-202 mm (31/32 – 7-15/16") in diameter

  • Diameter range: 25 - 202 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for Coring, Controlled demolition, pipe penetration, through hole or rebar drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP200,567.00

Technical Data

Diameter range
25 - 202 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 460 rpm; gear 2: 760 rpm; gear 3: 1690 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.3 kg
Weight of complete system
16 kg
Dimensions (LxWxH)
450 x 195 x 315 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
4 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
Corner accessibility
53 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Brochure
Operating Instruction
Material safety datasheet
pdf DD 160 product catalog [ 83 KB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively-designed features and controls
  • Sturdy three-speed gearing for outstanding concrete coring performance across the entire diameter range
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life

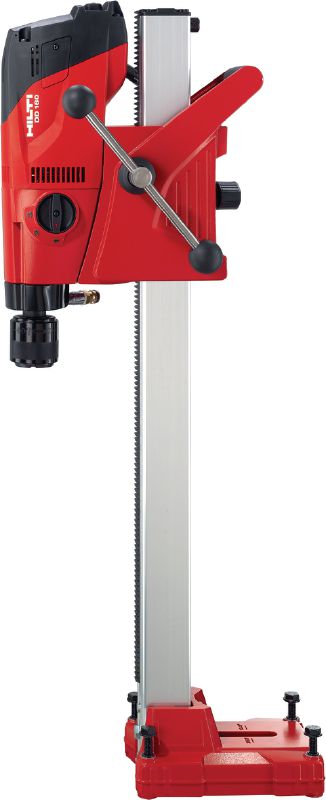

  • Choice of a high-grade drill stand with many useful features or simple, very compact drill stand with basic functionality
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

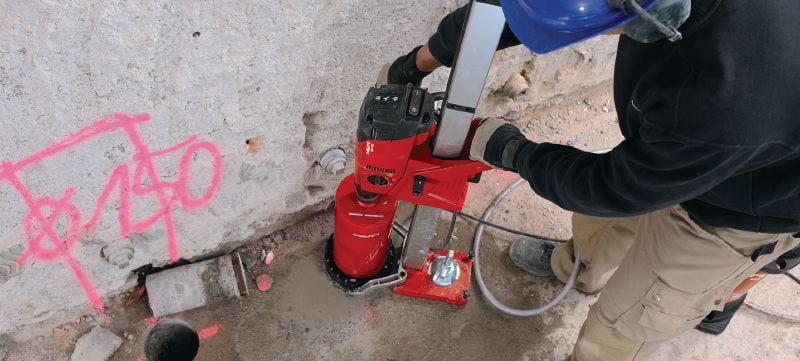

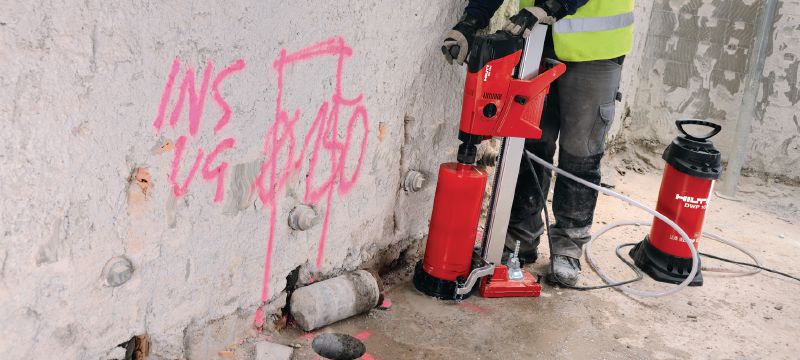

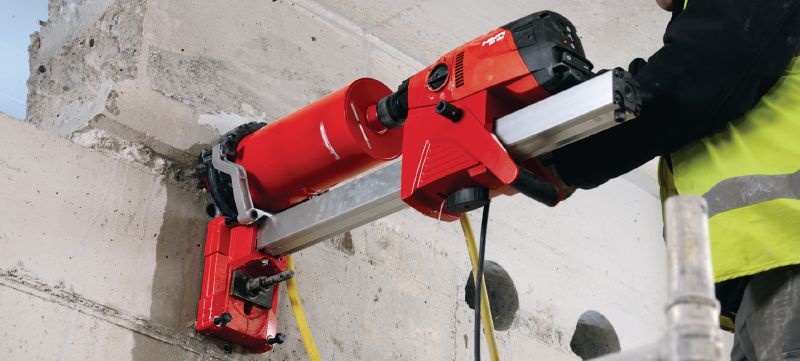

  • Rig-based wet drilling in concrete for pipe penetrations in plumbing, heating and air conditioning installations
  • Stitch drilling for cable trays and ventillation ducts
  • Drilling blind holes for large-diameter anchors, reinforcing bars and the installation of railings and barriers
  • Rig-based core drilling in wood up to 202 mm (8") diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
