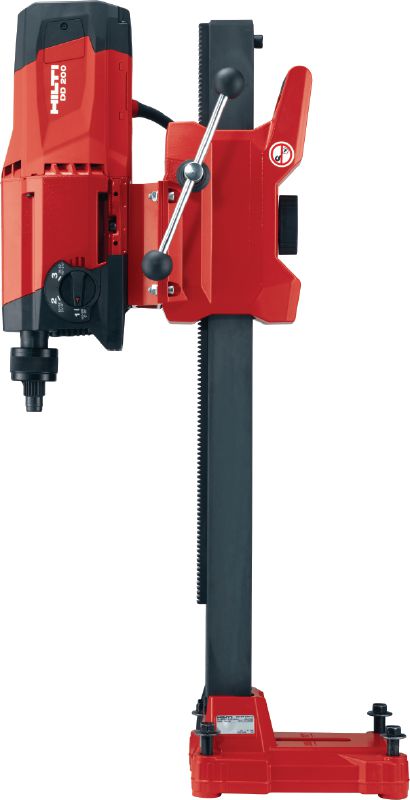

DD 200 G02 (DD-ST 200) Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
DD 200, DD-ST 200 (79449)
DD 200, DD-ST 200 (79444)
DD 200 (DD-ST 200) (81172)
DD 200 (DD-ST 200) (81173)
DD 200 (81184)

Simple heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm

  • Diameter range: 35 - 500 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for Coring, Controlled demolition, pipe penetration, through hole or rebar drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP230,159.00

Technical Data

Diameter range
35 - 500 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according to EPTA-Procedure 01/2003 without battery
20.4 kg
Weight of complete system
33 kg
Dimensions (LxWxH)
550 x 195 x 415 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
Corner accessibility
50 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Operating Instruction
Material safety datasheet
pdf Operating Instruction DD 200 (02), Arabic, cn, German, English, Spanish, Finnish, French, Italian, Kazakh, Portuguese, Russian, Turkish, Ukrainian, Chinese [ 9.8 MB ]
pdf Operating Instruction DWP 10 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.5 MB ]
pdf Operating Instruction DWP 10 (ENHE), English, Hebrew [ 2.5 MB ]

Features & Applications

Features

  • Air-cooled heavy-duty drive unit with three-speed gearing and convenient controls
  • Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
  • Extremely sturdy, robust design
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Compatible with the sturdy and simple DD-ST 200 drilling stand, as well as many common, industry-standard drilling stands

Applications

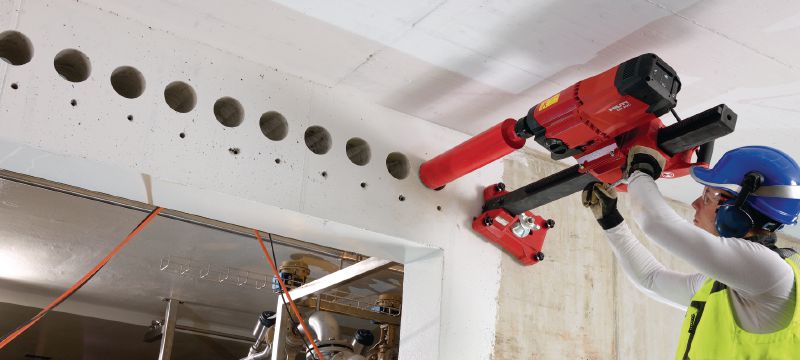

  • Making penetrations for ducts, pipes and cables
  • Openings for ventilation
  • Stitch drilling for breaches
  • Coring holes for service entries

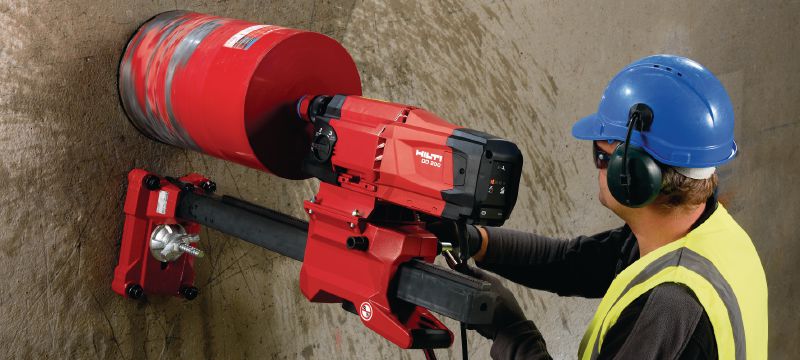

  • Coring holes in ceilings, walls and floors without hammering and vibration

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services
