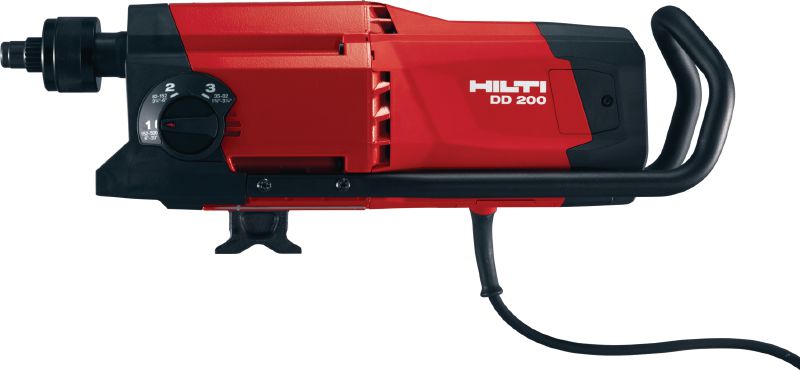

DD 200 G02 Core drill
Heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm
- Diameter range: 35 - 500 mm
- Base material: Concrete

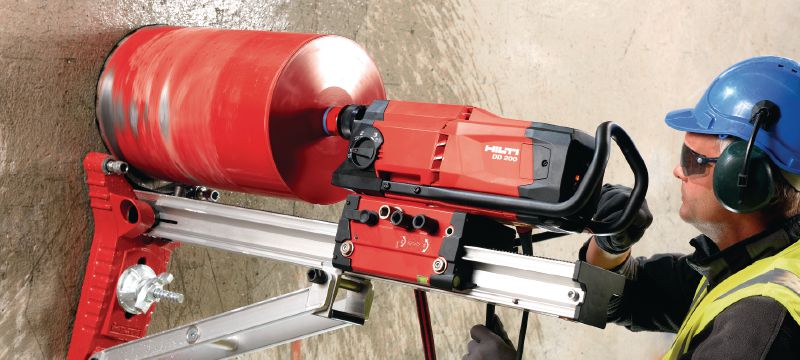

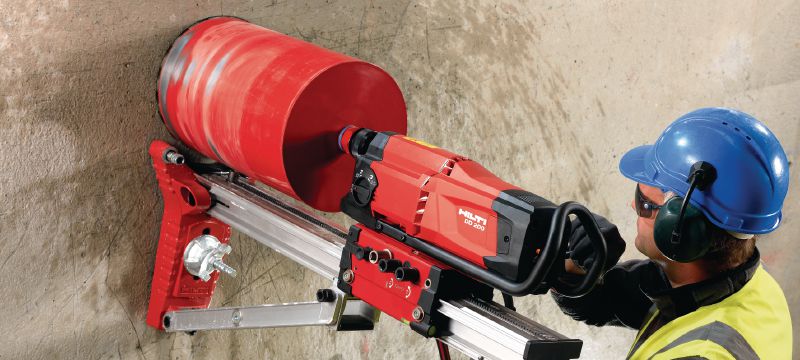

- Operation mode: Rig-based drilling system
Customers also searched for Coring, Controlled demolition, pipe penetration, through hole or rebar drill.
Technical Data
Diameter range
35 - 500 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according to EPTA-Procedure 01/2003 without battery
14.6 kg
Weight of complete system
36 kg
Dimensions (LxWxH)
630 x 190 x 215 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
Corner accessibility
50 mm
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Air-cooled, heavy-duty drive unit with three-speed gearing and convenient controls
- Optional BL quick-release connection lets you change core bits in seconds – no tools required (keyless system)
- Designed for versatility – suitable for an extremely wide range of applications
- Extremely sturdy, robust design
- Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
Applications
- Penetrations for ducts, pipes and cables
- Openings for ventilation
- Stitch drilling for breaches
- Coring holes for service entries

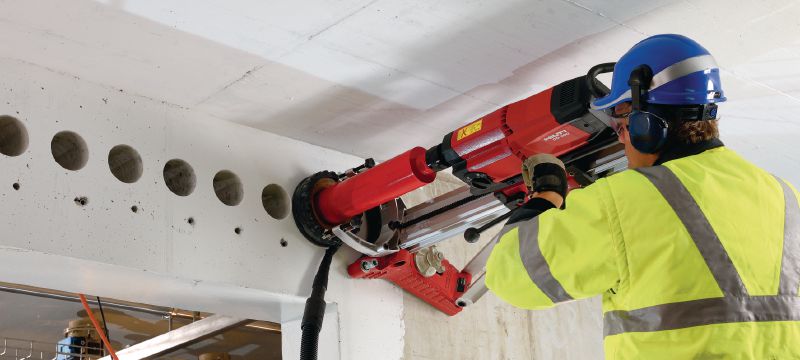

- Coring holes in ceilings, walls and floors without hammering and vibration
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- After the no-cost period, repair costs are capped
- 1-month no-cost period after each paid repair
- Exclusive use of genuine Hilti spare parts
Related Products
A single unit for the supply of cooling water as well as the collection and filtration of wastewater from diamond drilling systems

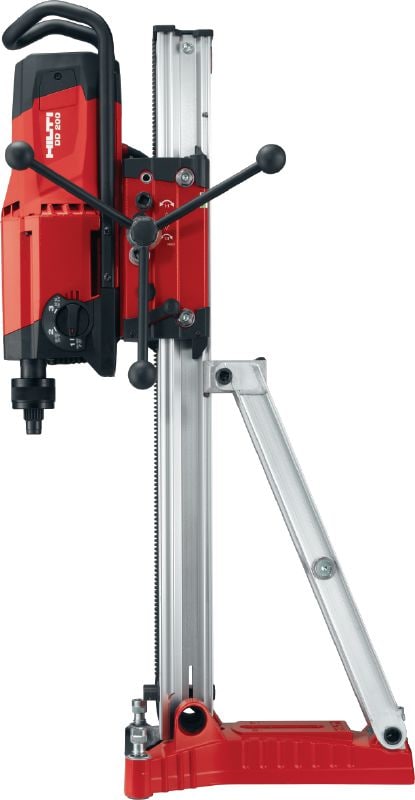

Drill stand for heavy duty Hilti coring machines (see technical data for tool compatibility)

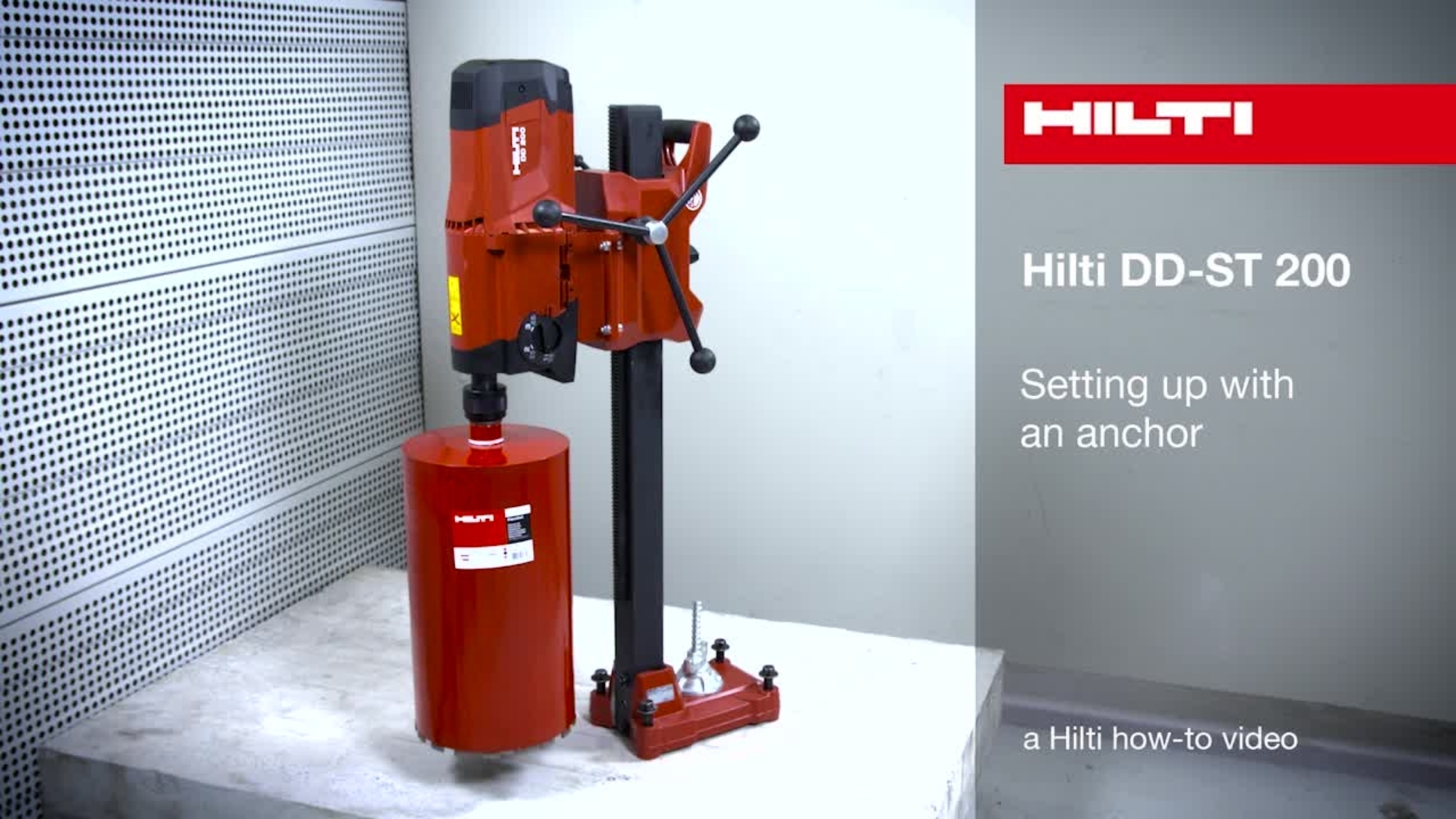

Product Videos
