DD 120 Core drill

Diamond coring tool DD 120 230V #2058750

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L015506_v2 (192823)
43626.tif
L015509_v2 (227385)
9451.tif
9452.tif
9453.tif
9454.tif

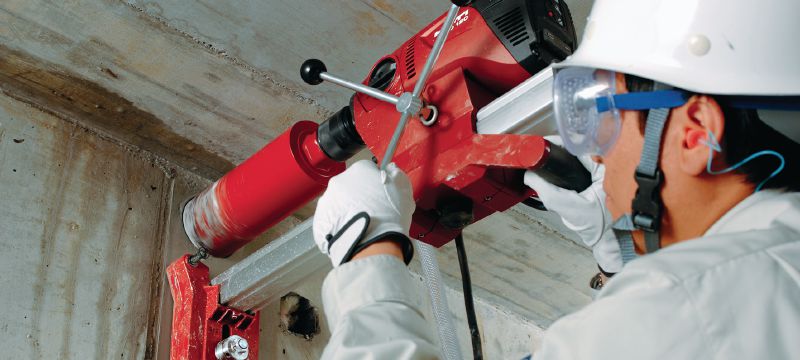

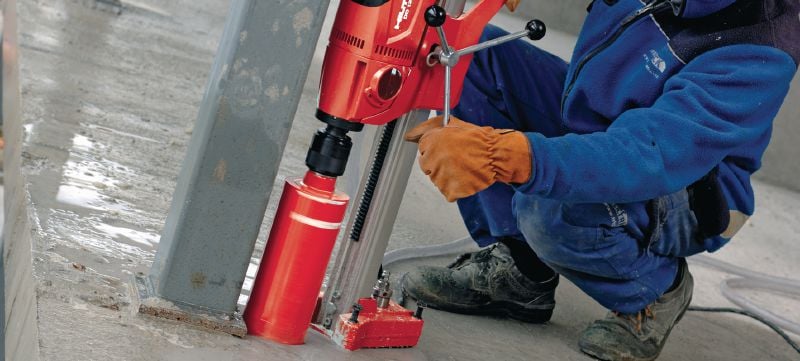

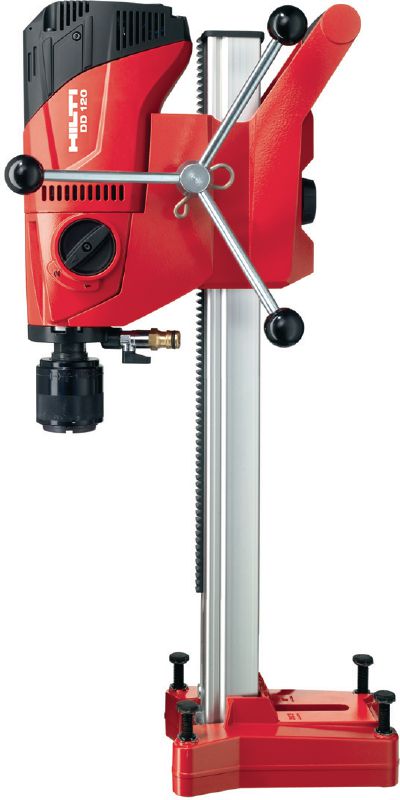

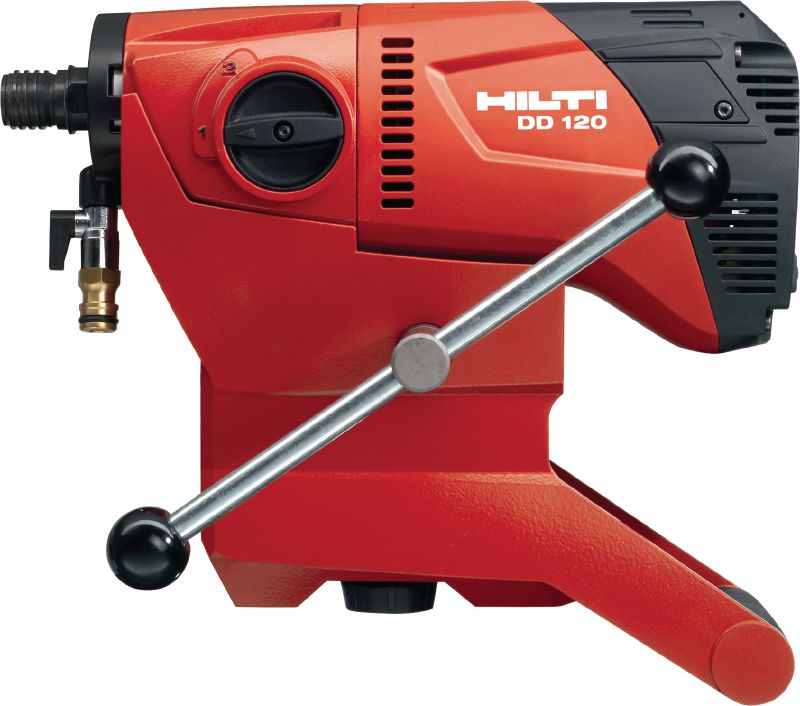

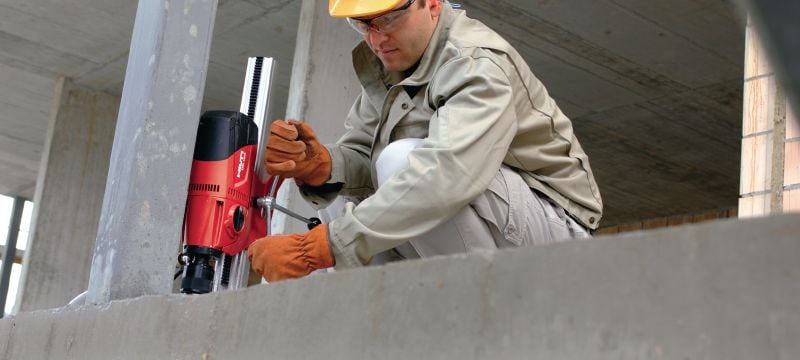

Extremely compact, light and mobile diamond coring machine for rig-based concrete coring from 16-162 mm (5/8 - 6-3/8") in diameter

  • Diameter range: 16 - 162 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for Coring, Controlled demolition, pipe penetration, through hole or rebar drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP144,203.00
PHP144,203.00
/
1 Piece

Technical Data

Diameter range
16 - 162 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Rated input power
1600 W
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.5 kg
Weight of complete system
11 kg
Dimensions (LxWxH)
327 x 147 x 330 mm
A-weighted emission sound pressure level
89 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Brochure
Operating Instruction
pdf DD 120 product catalog [ 65.2 KB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively designed features and controls
  • Compact and lightweight concrete core drill – for much easier handling
  • Two-speed gearing for optimum speed and torque
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

  • Installing pipes for sanitary, heating and air conditioning
  • Installing water supply and waste water pipes
  • Making openings for cable trays
  • Setting large-diameter anchors and reinforcing bars
  • Installing railings and barriers

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
