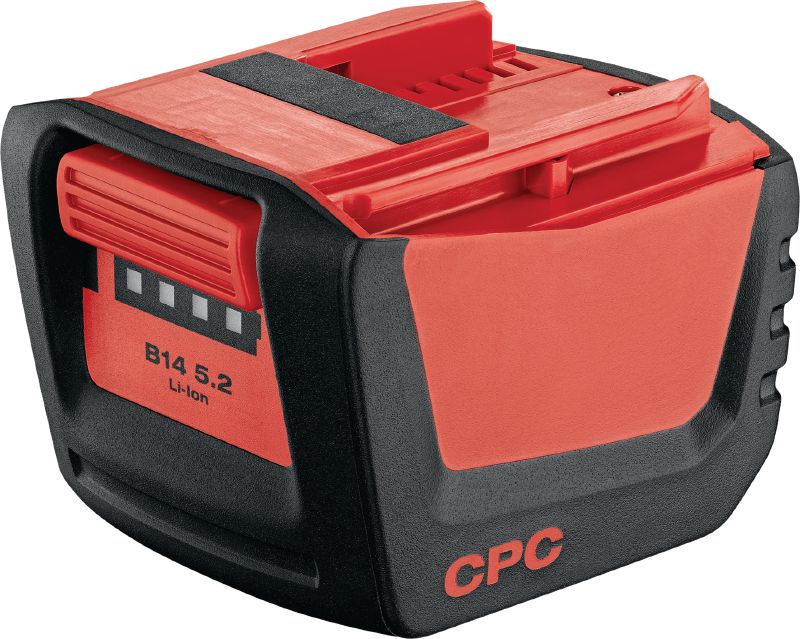

14V 5.2 Ah Li-ion battery for extended running time

  • Battery capacity: 5.2 Ah
  • Weight: 0.59 kg
  • Dimensions (LxWxH): 103 x 81 x 69 mm

Technical Data

Battery capacity
5.2 Ah
Weight
0.59 kg
Dimensions (LxWxH)
103 x 81 x 69 mm
Battery energy
75 Wh
Charging time with C4/36-90 battery charger
72 min
Charging time with RC4/36 Radiocharger
72 min
Charging time with C4/36-350 battery charger
35 min
Working temperature range
-17 - 60 °C
State of charge display
Yes

Documents

Features & Applications

Features

  • Improved capacity providing up to 60% longer running time
  • The latest Cordless Power Care (CPC) technology allows higher charging accuracy to prolong running time while intelligently monitoring each cell for improved performance
  • Fully sealed electronics for increased protection against dust, humidity and water
  • Rugged internal construction helps protect the battery cells and electronics
  • Rubberised, soft-grip casing for better handling and improved protection from damage if dropped

Applications

  • Compatible with the whole Hilti 14V cordless tool range
  • Compatible with all Hilti C4/36 Li-ion chargers
  • Applications in extreme temperature conditions – from 60° C (140° F) down to -17° C (1.4° F)
  • All main applications requiring a combination of high performance and long running time

For approval or certificate information, please see individual items.
