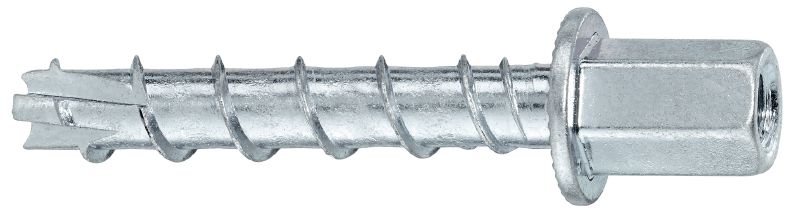

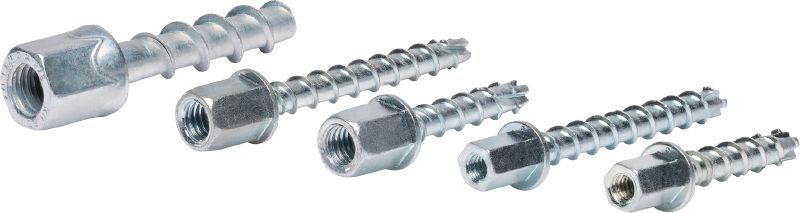

KH-EZ I Screw anchor
Ultimate-performance screw anchor for fastening threaded rod (carbon steel, internally threaded head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Inner thread
- Approvals / test reports: FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic
Choose options
Anchor size
- 1/4 in w/ 3/8 in cplr
- 3/8 in w/ 1/2 in cplr
Anchor length
- 41 mm
- 54 mm
Pack size
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP106.20
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Inner thread
Approvals / test reports
FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked)
Type of fastening
Pre-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)
Documents
Features & Applications
Features
- Time-saving and easy to install, with no high-accuracy torque wrench required and no hammering
- Less drilling and convenient overhead installation
- Efficient cutting edges for easier setting and higher productivity
- Highly productive solution for applications requiring an ICC-ES report for cracked concrete and seismic loading
- For use with standard ANSI-tolerance drill bits – no special close-tolerance drill bits required
Applications
- Various piping or ventilation duct installation applications
- Rod hangers for single or multiple pipes
- Suitable for repetitive installation tasks
For approval or certificate information, please see individual items.
