Nuron

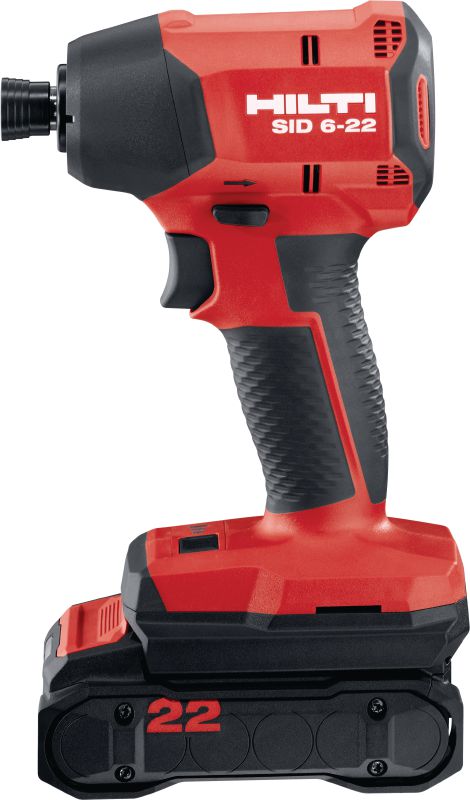

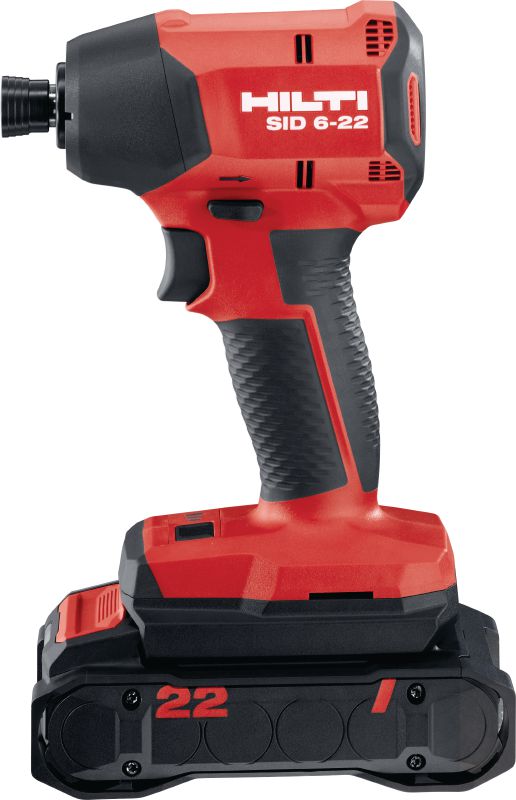

SID 6-22 Cordless impact driver

L125771 (226516)
L125765 (226513)
L142226_cropped (227471)
L142223_cropped (227472)
L142232_cropped (227480)
L142250_cropped (227489)
L142259_cropped (227505)
L142272_cropped (227507)
L142734_HNA_cropped (1914836)
L142731_HNA_cropped (1914788)
L142666_HNA_cropped (229192)
L125771 (226516)
L125765 (226513)
L142226_cropped (227471)
L142223_cropped (227472)
L142232_cropped (227480)
L142250_cropped (227489)
L142259_cropped (227505)
L142272_cropped (227507)
L142734_HNA_cropped (1914836)
L142731_HNA_cropped (1914788)
L142666_HNA_cropped (229192)

Power-class cordless impact driver with high-speed brushless motor and precise handling to help you save time on high-volume fastening jobs (Nuron battery platform)

  • Feature: LED light ring around the chuck
  • Chuck type: 1/4" hexagonal click-in
  • No load RPM: gear 1: 1800 rpm; gear 2: 2700 rpm; gear 3: 3600 rpm

Technical Data

Feature
LED light ring around the chuck
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 1800 rpm; gear 2: 2700 rpm; gear 3: 3600 rpm
Maximum torque
150 Nm (1); 300 Nm (2); 300 Nm (3) 1
Full hammering frequency
4250 impacts/minute
Number of gears
3
Dimensions (LxWxH)
138 x 68 x 206 mm
Tool body weight
0.994 kg
A-weighted emission sound pressure level
94 dB (A) 2
Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)
13.4 m/s²
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Uncompromising speed – the 3600 rpm brushless motor and rapid trigger response help you save time on every single fastening
  • Longer battery run time – smart, efficient Nuron 22V batteries work with the brushless motor to deliver our longest ever working time per charge from a cordless impact driver
  • Extra-compact size – at just 137 mm from front to back, this is the ideal cordless impact driver when you need power in tight spaces
  • LED light ring around the chuck – for a clearer, glare-free view of your work area
  • Ergonomic grip – textured and contoured for more comfortable control during long periods of use, or when working overhead

Applications

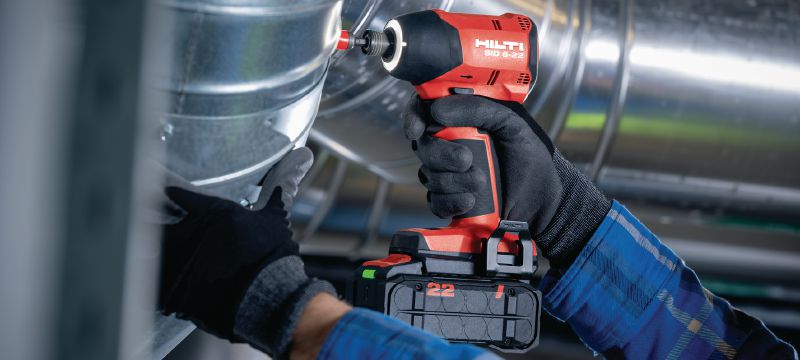

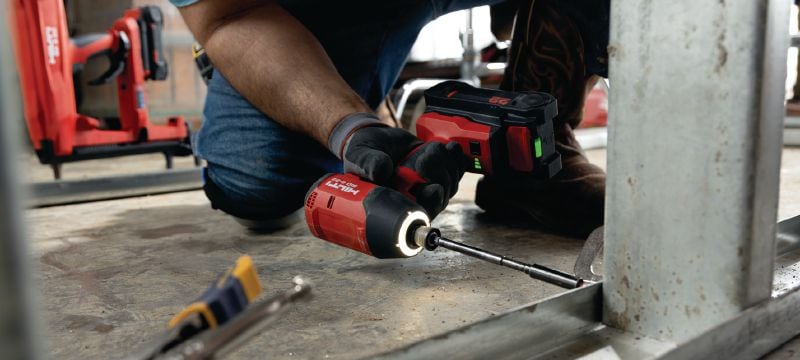

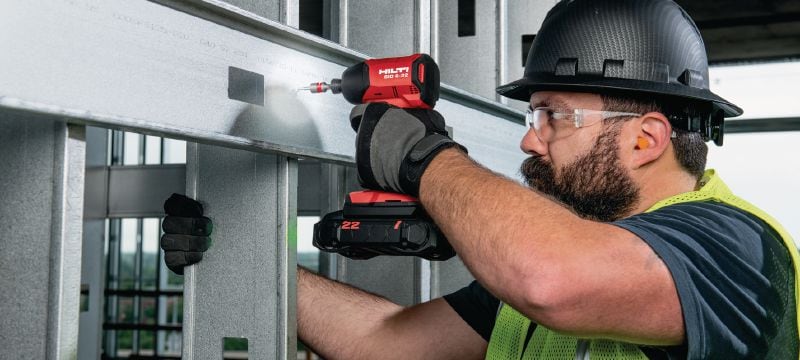

  • Fastening jobs where a minimised time-per-fastening is essential – such as metal deck, stud framing, HVAC, formwork, prefab and glazing
  • Self-drilling screws – optimised for drilling through metal, then driving threads to completion

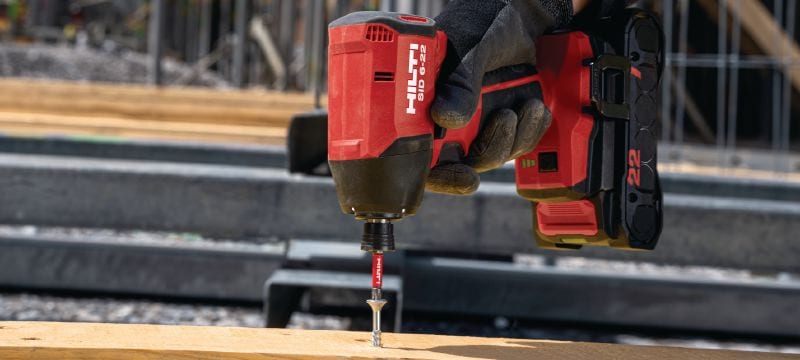

  • Wood screws – high-speed cordless impact driver for attaching wood to wood
  • Masonry screws – three gears so torque can be reduced for masonry screws such as HRD
  • Drilling in wood with spade bits such as WDB-S (max. diameter 25 mm)

For approval or certificate information, please see individual items.
