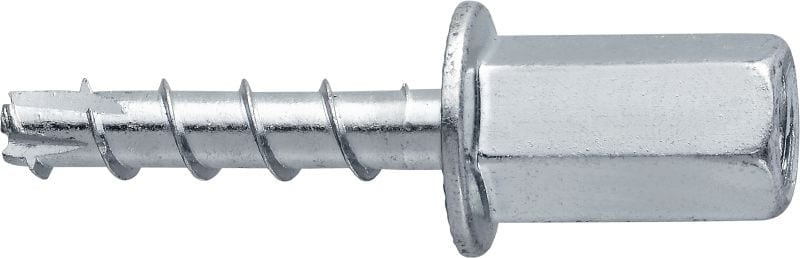

HUS3-I 6 Concrete screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
32266.tif
HUS-I small, KH-EZ I
MM

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, internally multi-threaded head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Internally Threaded
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 6 mm
Anchor length
  • 35 mm
  • 55 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP9,810.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally Threaded
Approvals / test reports
ETA, Fire
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Type of fastening
Pre-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Technical information
Approval document
Instruction for use
pdf Technical data sheet for HUS3 screw anchor steel to concrete and steel to masonry, English [ 1.8 MB ]
pdf Technical data sheet for HUS3, HUS4-HR/CR redundant fastening, English [ 1.4 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • M8 and M10 internally threaded heads for direct attachment of threaded rods
  • Simplifies work - optimized for seismic C1/C2 applications and suitable for single point fastenings
  • More reliable and easy to set – HSE product profile available
  • Innovative cutting edge geometry for superior setting characteristics

Applications

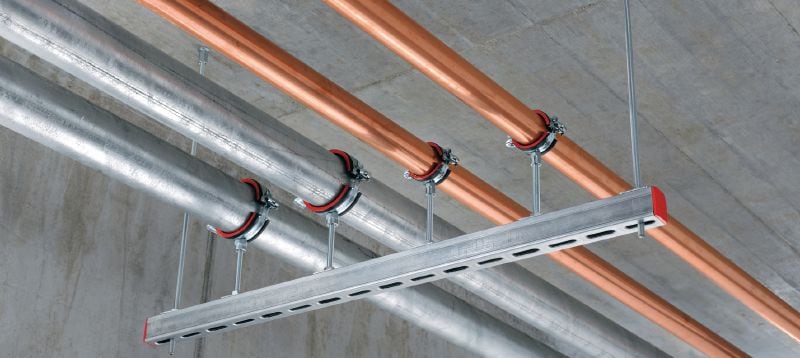

  • Various pipe or ventilation system installation applications

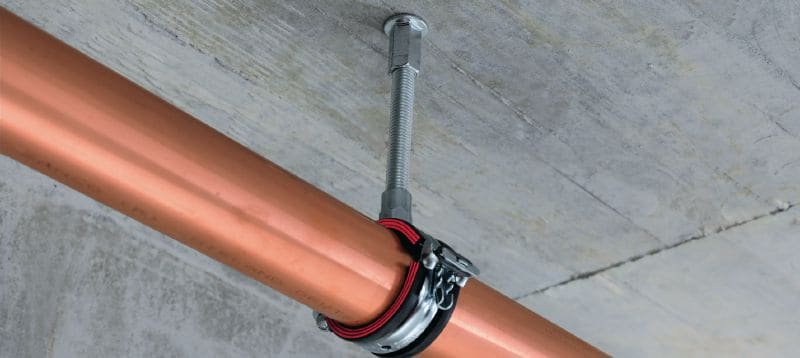

  • Threaded rod hangers for single or multiple pipes
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
