HUS3-H 6 Concrete screw anchor

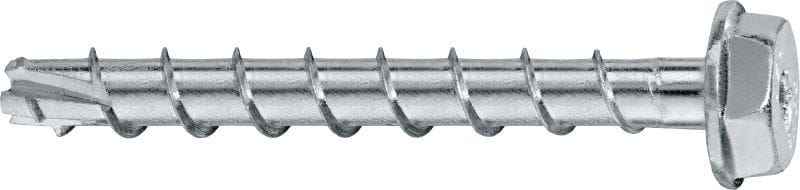

Screw anchor HUS3-H 6x60/5/25 #416736
Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Socket size: 13 mm
Customers also searched for screw anchor, concrete screw anchor, threaded anchor screw or temporary screw anchor.
Choose options
Anchor size
- 6 mm
Anchor length
- 60 mm
Pack size
- 100 pc
Quantity
Packs
Total Piece
100
Discounted net
PHP107.10
PHP107.10 / 1 Piece
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Socket size
13 mm
Bit size
T30
Drill bit diameter
6 mm
Approvals / test reports
ETA, Fire, Seismic, VDS
Reusable (and removable)
Possible
PROFIS software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Neat head design, no further finishing required
- More reliable and easy to set – HSE product profile available
- Unbeaten for overhead installation – greatly simplifies the work
- Reduced edge and spacing distances
Applications

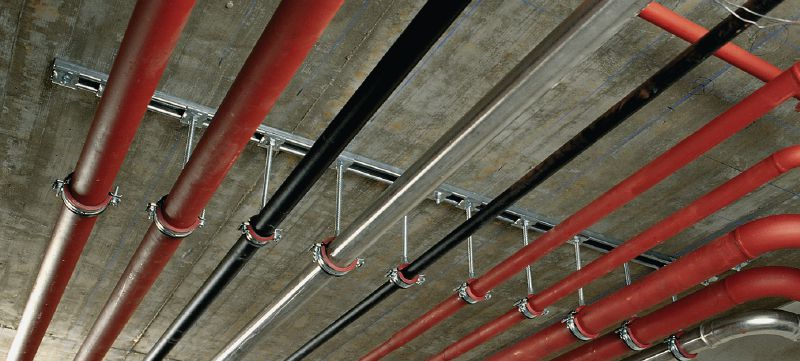

- Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
- Fastening handrails, railings and other ornamental steelwork
- Suitable for repetitive installation tasks
