HUS3-C 6 Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HUS3-C (75655)
L069403.tiff

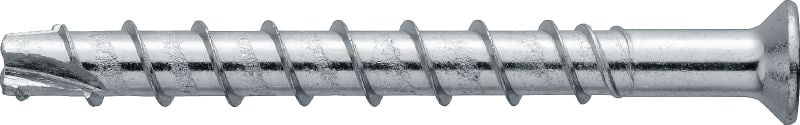

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, countersunk head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Countersunk
  • Approvals / test reports: ETA, Fire

Customers also searched for screw anchor, concrete screw anchor, temporary screw anchor or threaded anchor screw.

Choose options

Anchor size
  • 6 mm
Anchor length
  • 40 mm
  • 60 mm
  • 70 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP6,917.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk
Approvals / test reports
ETA, Fire
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Technical information
Approval document
Operating Instruction
pdf Technical data sheet for HUS3, HUS4-HR/CR redundant fastening, English [ 1.4 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Neat head design saves time – no finishing required
  • More reliable and easy to set – HSE product profile available
  • Unbeaten for overhead installation – greatly simplifies the work
  • Removable

Applications

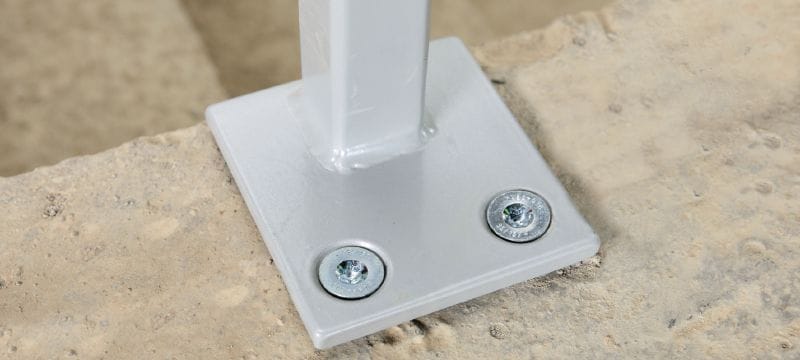

  • Fastening handrails, railings and other ornamental steelwork
  • Architectural steel plates
  • Piping or ventilation applications

For approval or certificate information, please see individual items.
