HRD-HF Plastic frame anchor

Frame anchor HRD-HF 10x80 #423910

Configurator
Technical Data
Documents
Features & Applications
Related Products
34333.tif
L050458.tiff
L050456_V2.tiff
L141310_cropped (224431)

Pre-assembled plastic anchor for concrete and masonry with corrosion-resistant screw (hot-dip galvanized, hex head)

  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire
  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised

Customers also searched for wall plug, wall anchor bolt, drywall anchor bolt, plastic anchor bolt or masonry anchor bolt.

Choose options

Anchor size
  • 10 mm
Anchor length
  • 80 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP6,750.00
PHP135.00
/
1 Piece

Technical Data

Head configuration
Hex head
Approvals / test reports
ETA, Fire
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Wrench size
13 mm

Documents

Technical information
Approval document
Brochure
Operating Instruction
pdf Tech_HRD_redundant_2023_en, English [ 1.2 MB ]
pdf Technical data sheet for the HRD frame anchor, English [ 691.3 KB ]
pdf HRD-HF FTM 2015, English [ 7.2 MB ]

Features & Applications

Features

  • Unbeatable versatility – flexible embedment depth (approved at 50 mm and 70 mm) makes these plastic anchors suitable for a vast range of fastenings and base materials
  • Higher corrosion resistance – hot-dip galvanized screw for use in mildly corrosive environments (other screw types also available)
  • Time-saving on the jobsite – these concrete plastic anchors arrive ready to use with the screw pre-assembled in the wall plug
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

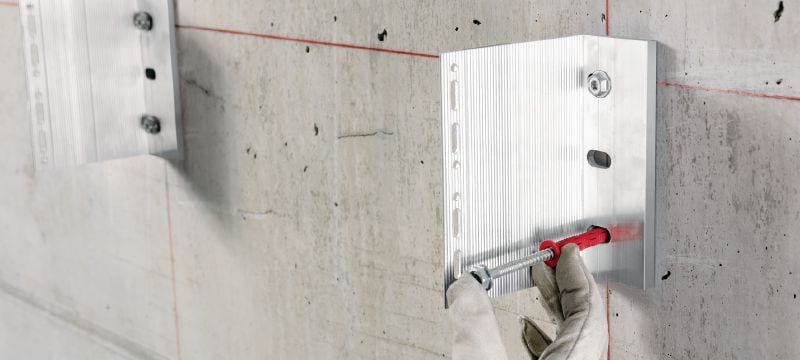

  • Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry
  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Suitable for fastening fixtures up to 150 mm thick (60-200 mm anchor length available)
