HRD-C Plastic frame anchor
Pre-assembled plastic anchor for concrete and masonry with screw (carbon steel, countersunk head)
- Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
- Head configuration: Countersunk
- Approvals / test reports: ETA, Fire, Fire (For more details please check the fire approval)
Customers also searched for wall plug, wall anchor bolt, drywall anchor bolt, plastic anchor bolt or masonry anchor bolt.
Choose options
Anchor size
- 8 mm
- 10 mm
Anchor length
- 60 mm
- 80 mm
- 100 mm
- 120 mm
- 140 mm
- 160 mm
- 180 mm
- 200 mm
- 230 mm
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP107.10
Technical Data
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Countersunk
Approvals / test reports
ETA, Fire, Fire (For more details please check the fire approval)
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Type of fastening
Through-fastening
Documents
Features & Applications
Features
- Unbeatable versatility – flexible embedment depth (approved at 50 mm and 70 mm) makes these plastic anchors suitable for a vast range of fastenings and base materials
- Multiple versions available – choose from multiple screw heads and corrosion resistance options depending on your project’s needs
- Time-saving on the jobsite – these concrete plastic anchors arrive ready to use with the screw pre-assembled in the wall plug
- Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information
Applications

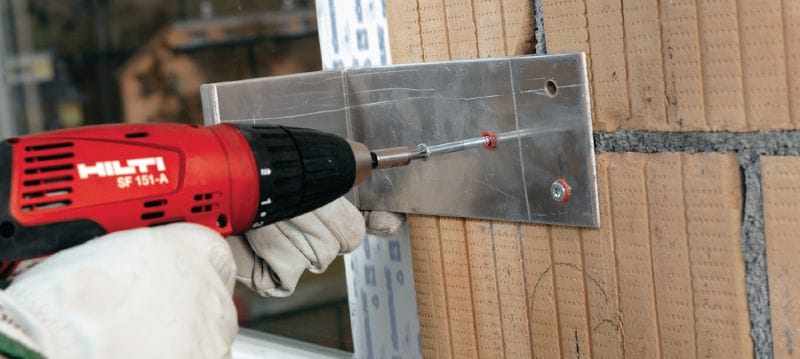

- Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry
- Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry

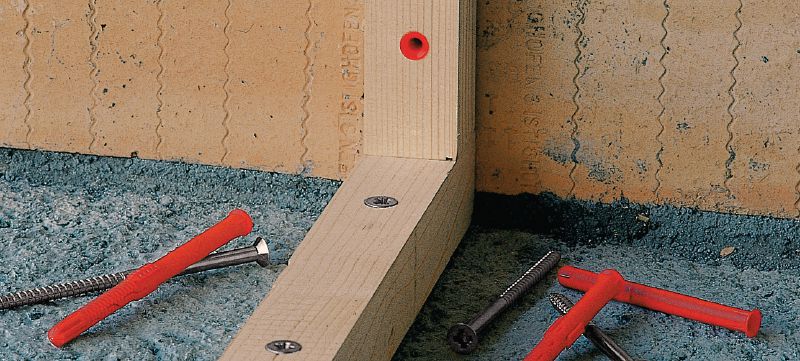

- Framed openings – countersunk screw ideal for fastening door and window frames
- Suitable for fastening fixtures up to 260 mm thick (60-310 mm anchor length available)
For approval or certificate information, please see individual items.
