HST3 Wedge anchor

HST3 M12x115 40/20
HSA stud anchor
HSL-3-G
23428.tif
HST3 (75971)
HST3 (76513)

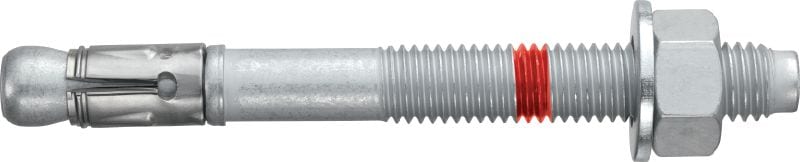

Ultimate-performance wedge anchor for demanding static and seismic loads in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for safety stud anchor, seismic stud anchor, seismic bolt, sismique or expansion.

Choose options

Anchor size
  • M10
  • M12
  • M16
Anchor length
  • 90 mm
  • 115 mm
  • 170 mm
Pack size
  • 12 pc
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP7,357.50

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked)
Installation tools
TE 30-22 cordless rotary hammer
PROFIS software
Yes

Documents

pdf Tech_HST3_ACI based_2019_en, English [ 800.6 KB ]

Features & Applications

Features

  • More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
  • Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
  • Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
  • Easier inspections – head marking showing anchor type and length to simplify quality control after setting

Applications

  • Galvanized carbon steel wedge anchor for all safety-relevant fastenings in cracked and uncracked concrete
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

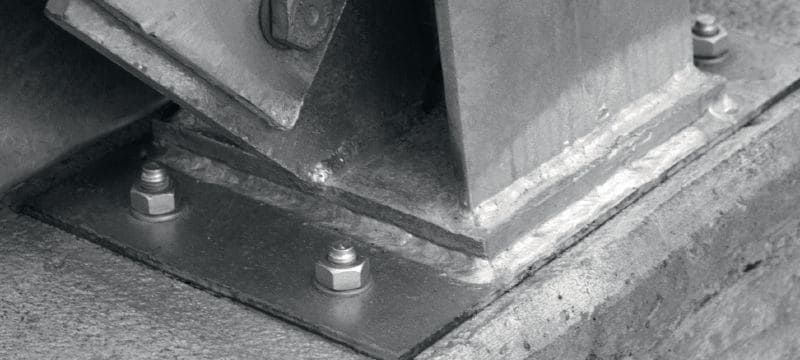

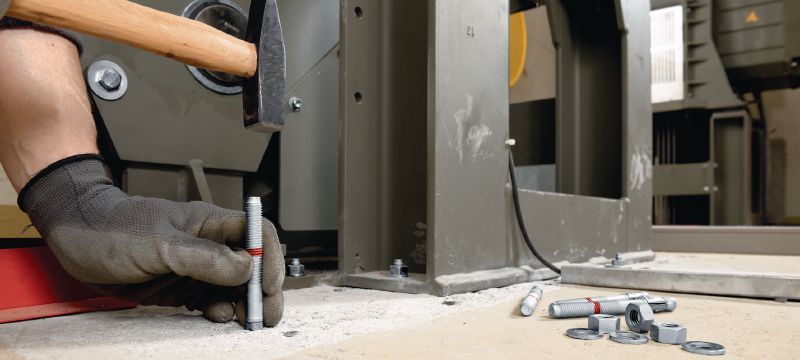

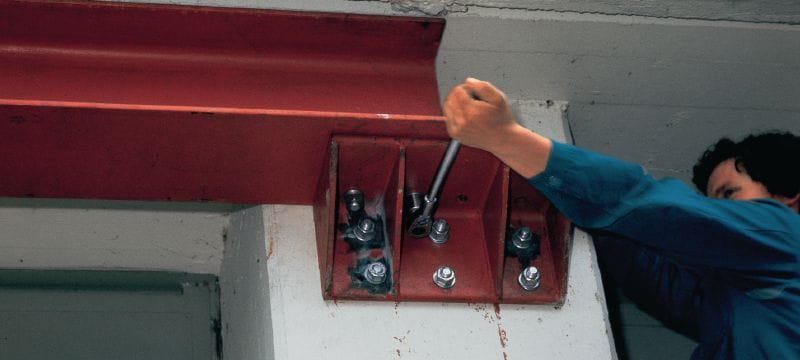

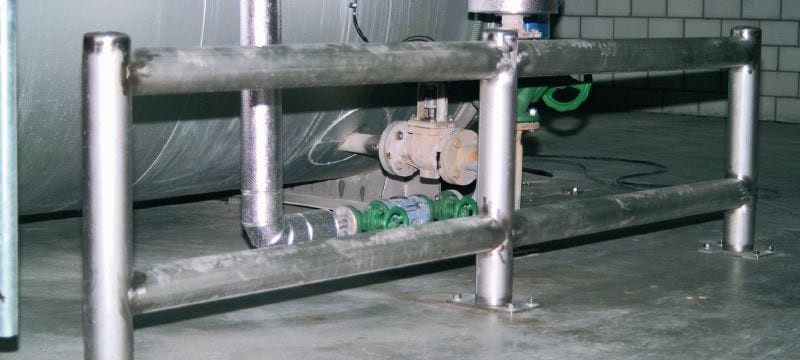

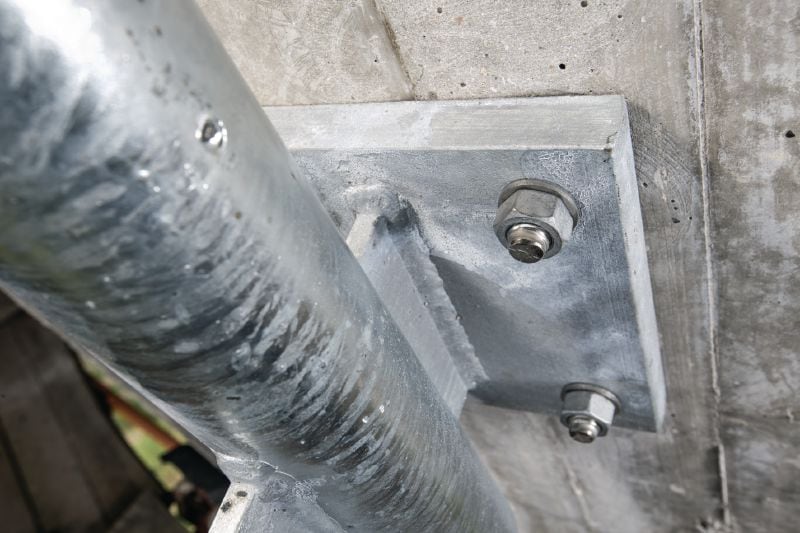

  • Fastening baseplates, handrails, façade systems, machinery or racking to concrete
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
