WDB-S Spade bit

Spade bit WDB-S-H6 25x152 #2025575

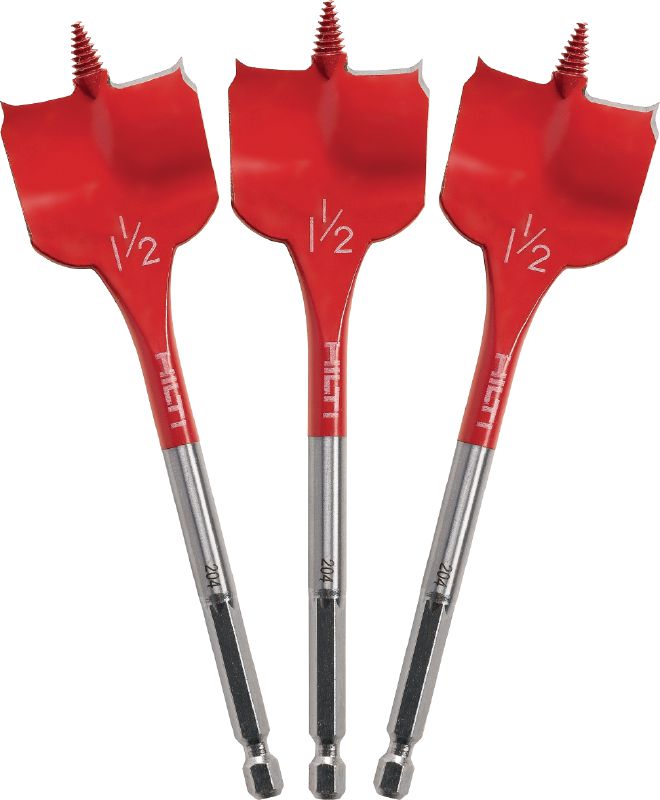

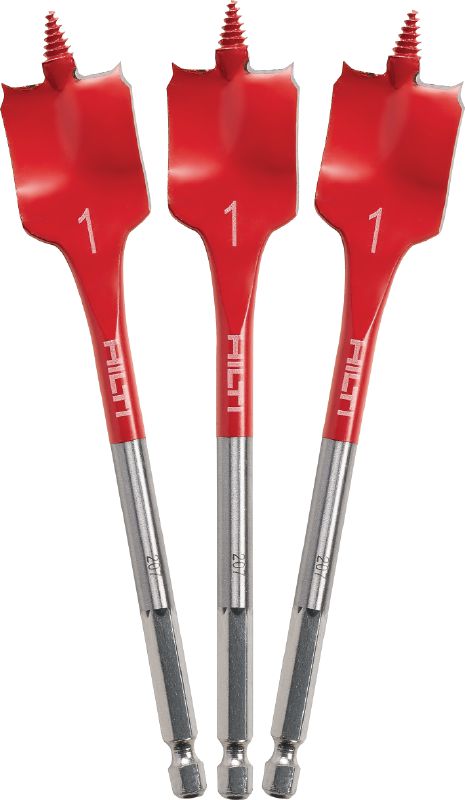

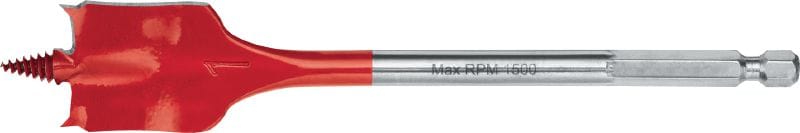

Spade bit for fast drilling of shallow holes in wood

  • Connection end: Hex shank
  • Base material: Wood, Wood composites
  • Working length: 100 mm
ultimate

Choose options

Diameter
  • 25 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Piece
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Connection end
Hex shank
Base material
Wood, Wood composites
Working length
100 mm
Working mode
Drilling only
Diameter
25 mm
Length
152 mm
Product class
Ultimate

Features & Applications

Features

  • Self-feeding threaded tip for fast and easier drilling into wood with less vibration
  • Spur and reamer edges create cleaner holes
  • Up to 10x faster than conventional spade bits
  • Wing tips and cupped spade increase the speed and ease of drilling
  • Connection end with hex shank groove for use with all SID, SFH and SF power tools

Applications

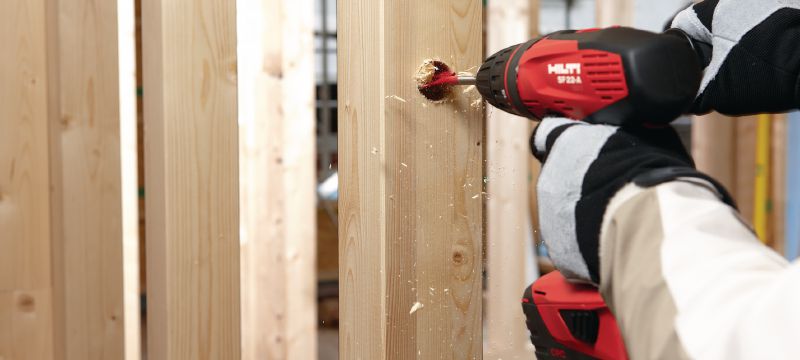

  • Drilling small- to medium-diameter holes in soft or hard wood

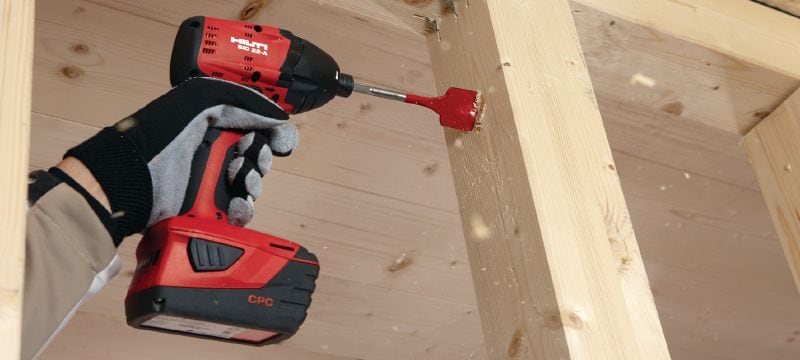

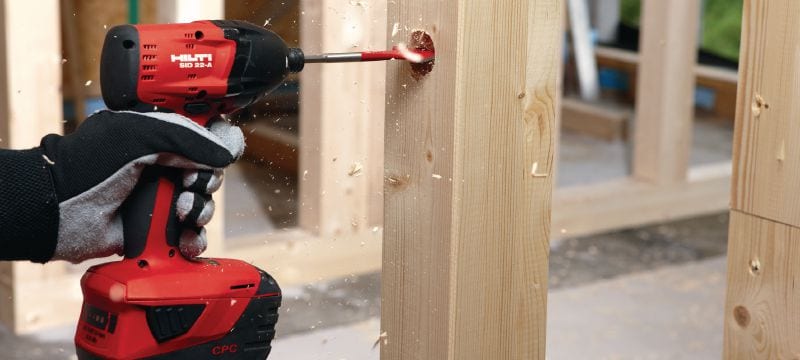

  • Ideal for drilling overhead, for use with SID impact tools
