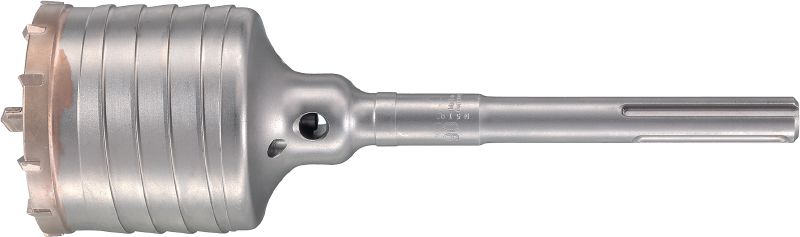

TE-Y-BK (SDS Max) Rotary hammer core bit
SDS Max (TE-Y) rotary hammer core bit for cutting holes in concrete
- Connection end: TE-Y (SDS-max)
- Base material: Concrete, Brick, Masonry, Sand-lime block
- Working mode: Hammer drilling, Drilling
ultimate
Customers also searched for Percussion Bits, Combihammer, Concrete drill, SDS or SDS Max.
Choose options
Diameter
- 45 mm
- 50 mm
- 55 mm
- 68 mm
- 82 mm
- 90 mm
- 100 mm
- 125 mm
- 150 mm
Length
- 290 mm
- 550 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP19,306.85
Technical Data
Connection end
TE-Y (SDS-max)
Base material
Concrete, Brick, Masonry, Sand-lime block
Working mode
Hammer drilling, Drilling
System parts
No
Product class
Ultimate
Features & Applications
Features
- Dry drilling with 20% longer lifetime than other SDS Max percussion core bits

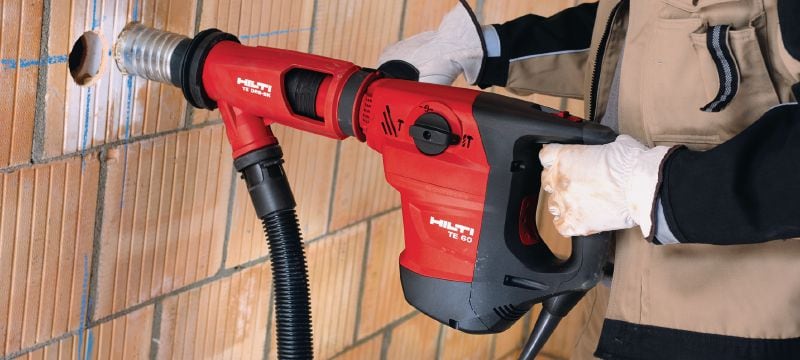

- Virtually dustless drilling when used with the optional TE DRS-Y dust removal system for Y-type combihammers
- Easy socket cutting and drilling penetrations in masonry
- Improved core bit geometry for up to 20% longer life
- Improved core bit geometry for up to 20% longer life
Applications
- Socket cutting
- Through-holes for water piping, ventilation and other utilities
For approval or certificate information, please see individual items.
