Nuron

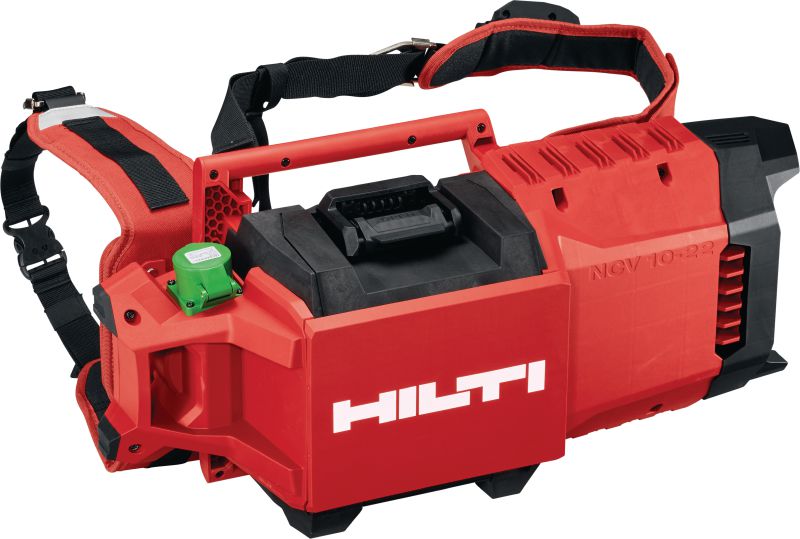

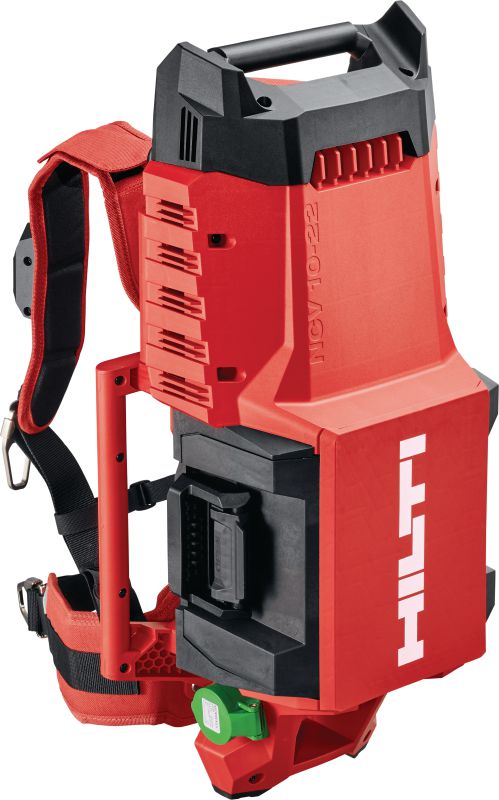

NCV 10-22 Backpack concrete vibrator

Battery-powered concrete vibrator backpack with brushless motor for compaction of walls, slabs and foundations (Nuron battery platform)

  • Dimensions (LxWxH): 320 x 218 x 666 mm
  • Weight: 8.28 kg
  • IP protection class: IP 67 (NCV 10-22 whips), IP X4 (NCV 10-22)

Technical Data

Dimensions (LxWxH)
320 x 218 x 666 mm
Weight
8.28 kg
IP protection class
IP 67 (NCV 10-22 whips), IP X4 (NCV 10-22)
Rated power
1000 W
Rated voltage
21.6 V

Documents

Features & Applications

Features

  • Safer jobsites – eliminate power cords when compacting concrete by upgrading to a battery-powered concrete vibrator
  • Consistency and performance – engineered to help you achieve comparable results to a stationary high-frequency internal concrete vibrator

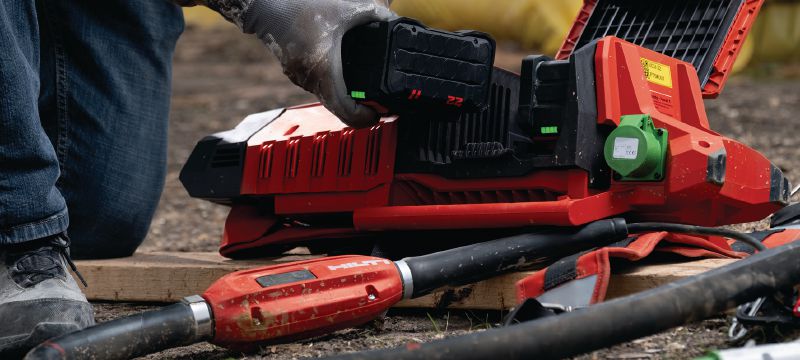

  • Longer-lasting Nuron batteries – consolidate up to 5 lorries of concrete (37.5 m3) on one pair of B 22-170 batteries

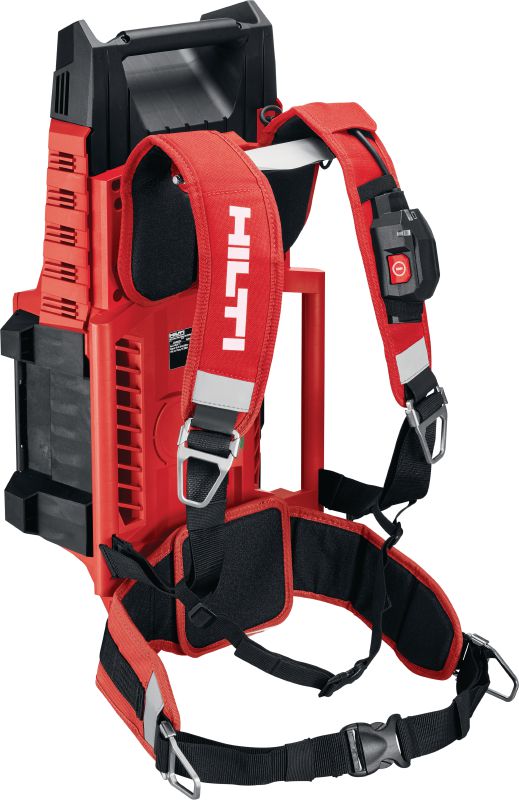

  • Unbeatable mobility – lower-weight and ergonomic backpack help to minimise both setup time and interruptions while working

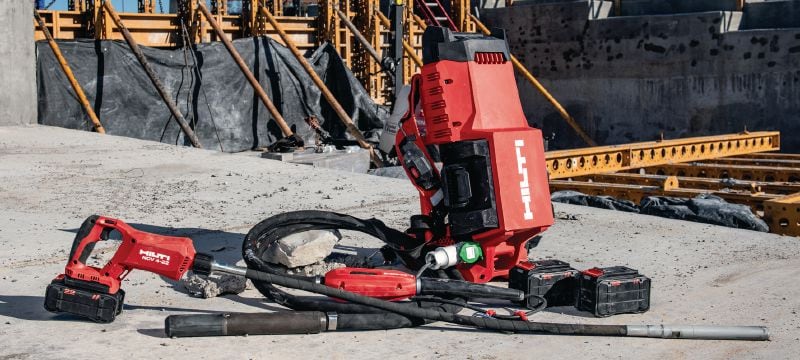

  • Highly versatile concrete vibrator – choose from 9 different whips (sold separately) to best suit the volume of concrete to be compacted

Applications

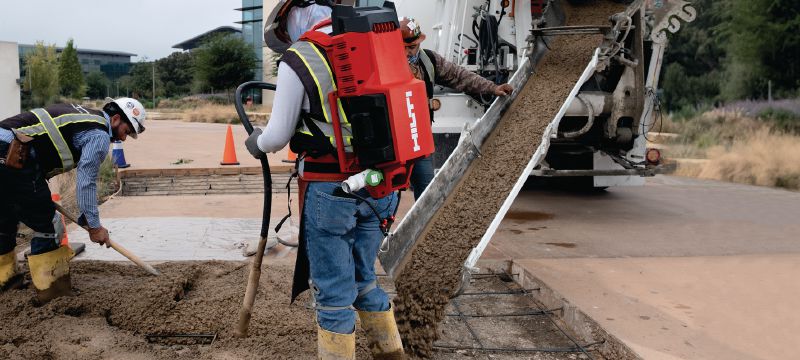

  • Internal concrete compaction for decks and walls to remove trapped air bubbles and increase density of concrete
  • Consolidating footings and foundations
  • Concrete compaction for pre-cast garden elements

For approval or certificate information, please see individual items.
