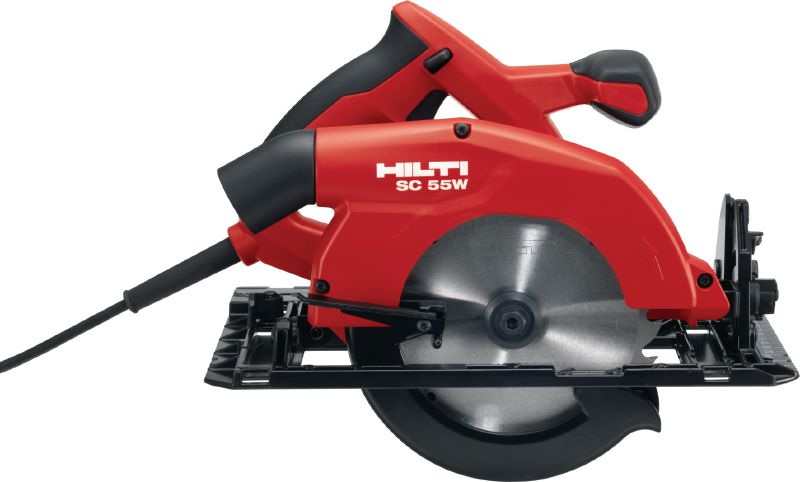

SC 55W Circular saw
Circular saw for straight cuts up to 55 mm depth
- Max. cutting depth: 55 mm
- Blade diameter - range: 160 - 165 mm
- Cutting depth at 45 degrees: 41 mm
Customers also searched for wood saw or circular saw for wood.
Technical Data
Max. cutting depth
55 mm
Blade diameter - range
160 - 165 mm
Cutting depth at 45 degrees
41 mm
No load RPM
gear 1: 5500 rpm
Base material
Wood, Sandwich panel
Guiding rail compatibility
Yes
A-weighted emission sound pressure level
91 dB (A) 1
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Very robust circular saw with high cutting feed rate, for heavy-duty sawing
- Preselection of cutting angle to 22.5, 45 or 50 degrees
- Rip and cross cuts up to 55 mm cutting depth, compatible with Hilti guide rails and vacuum cleaners
- Full guide rail compatibility – cut precise 45 and 90 degree angles using this hand-held circular saw
- Fast blade stop
Applications
- Rip and cross cuts at depths of up to 55 mm
- Bevel and mitre cuts, with or without guide rail
- General construction: cutting formwork board, OSB, plywood, chipboard, plastics, battens
- Interior finishing: cutting plasterboard panel (gypsum board), cement board, MDF and HDF
- Electrical: horizontal wall cuts, cable trays
For approval or certificate information, please see individual items.
