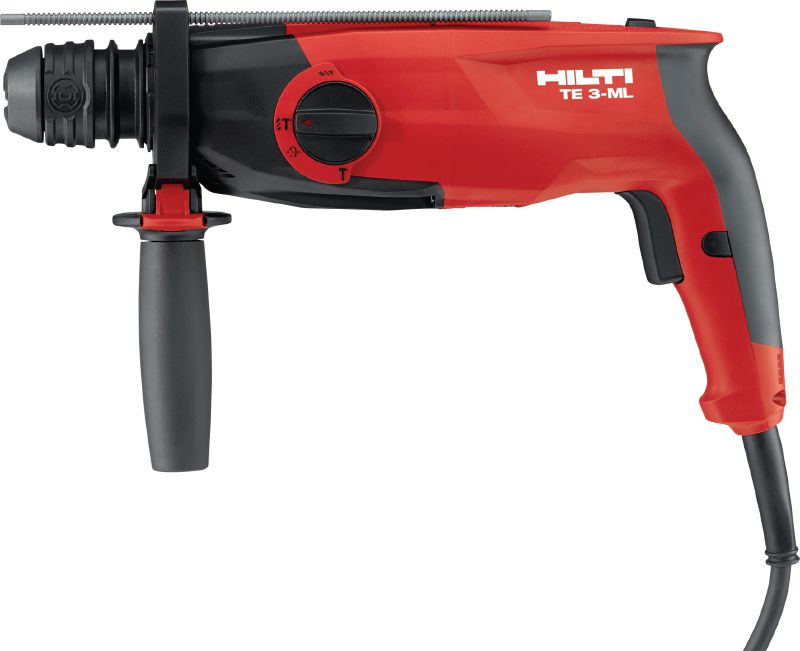

TE 3-ML Rotary hammer

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From PHP28,892.00

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

3.1 kg

Optimum hammer drilling range

6 - 16 mm

Single impact energy

2.1 J

Working mode

Chiselling, Drilling, Hammer drilling, Chisel setting

Hammer drilling diameter range

5 - 28 mm

Hammer drilling RPM

1070 rpm

Full hammering frequency

4860 impacts/minute

Functionality

Chipping, 2nd gear for drilling in metal, Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

15.6 m/s² ¹

Triaxial vibration for chiselling in concrete

12.2 m/s² ²

A-weighted emission sound pressure level

93 dB (A) ³

Dimensions (LxWxH)

377 x 88 x 204 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

pdf Material safety datasheet Hilti Grease (EN) [ 735.7 KB ]

Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiselling
Sturdy motor provides high performance and overload protection
Innovative, long-lasting hammering mechanism
Includes Hilti Cooltec with active cooling to extend tool lifetime

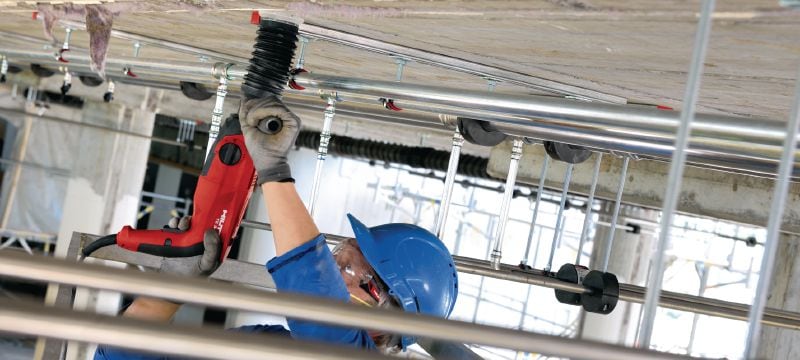

Optional, easily attachable dust collector helps protect the operator from falling dust and fragments when drilling overhead
