TE 60-ATC-AVR Rotary hammer

Combihammer TE 60-ATC/AVR 230 V #2132181

Configurator
Technical Data
Documents
Features & Applications
Related Products
TE 60 ATC/AVR (83898)
TE 60 ATC/AVR (4th Generation) (86012)
TE 60 ATC/AVR (4th Generation) (86110)
TE 60 ATC/AVR (4th Generation) (86111)
TE 60 ATC/AVR (4th Generation) (86014)
TE 60 ATC/AVR (4th Generation) (86104)

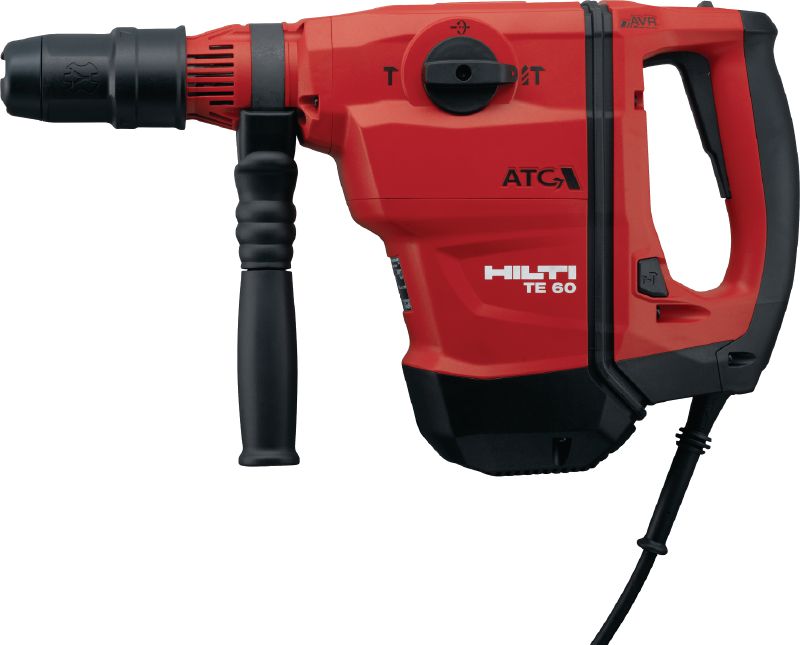

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR) and Active Torque Control (ATC)

  • Weight according to EPTA-Procedure 01/2003 without battery: 7.8 kg
  • Single impact energy: 7.8 J
  • Rated current: 7.2 Ah

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP85,107.00
PHP85,107.00
/
1 Piece

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
7.8 kg
Single impact energy
7.8 J
Rated current
7.2 Ah
Hammer drilling diameter range
12 - 100 mm
Optimum hammer drilling range
18 - 40 mm
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Depth gauge, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
7.2 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
6.2 m/s² 2
Rated input power
1350 W
Dimensions (LxWxH)
493 x 115 x 293 mm
A-weighted emission sound power level
111 dB (A) 3
A-weighted emission sound pressure level
103 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 735.7 KB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High versatility for a wide range of drilling and chiselling applications

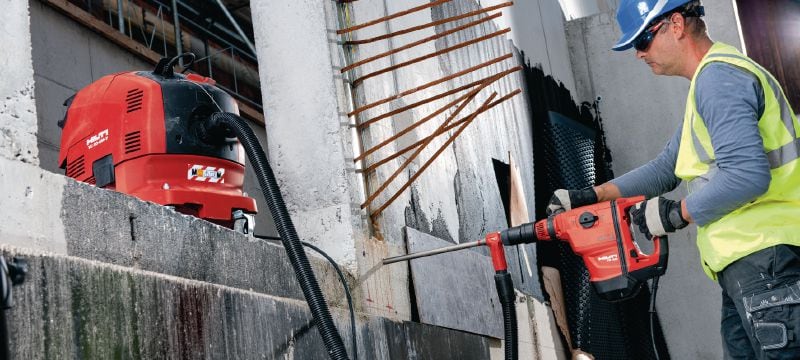

  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

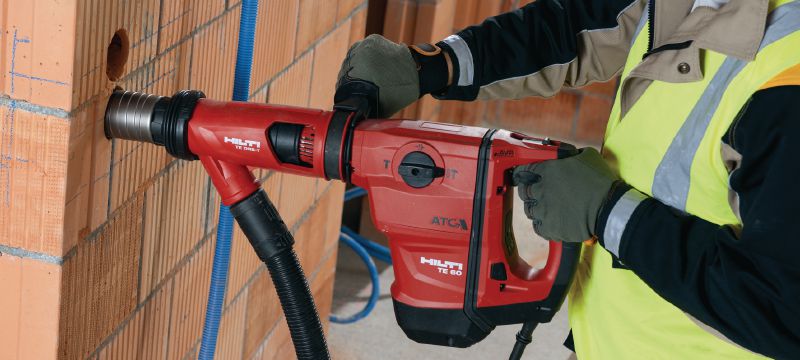

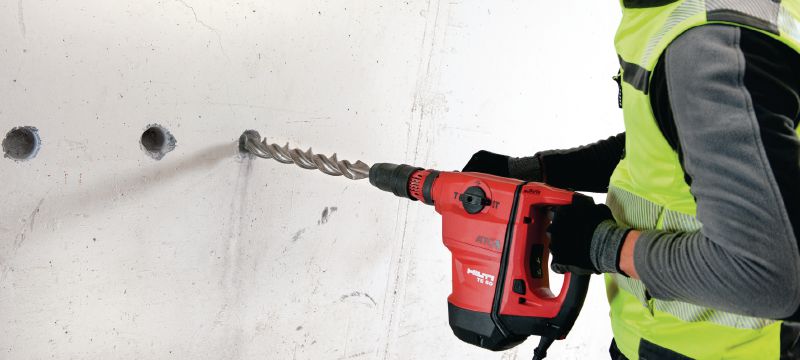

  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)

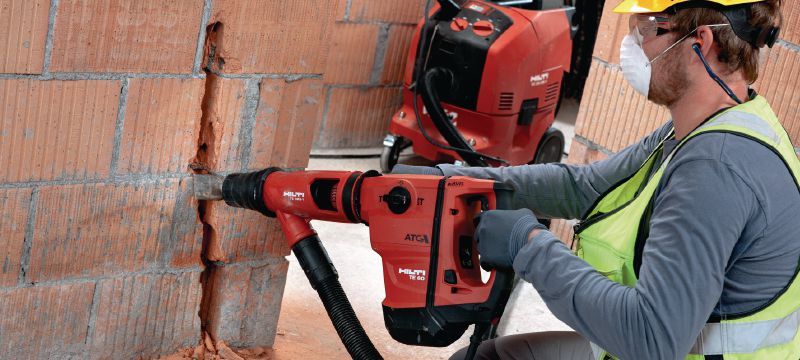

  • Medium-duty demolition work
  • Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
  • Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
