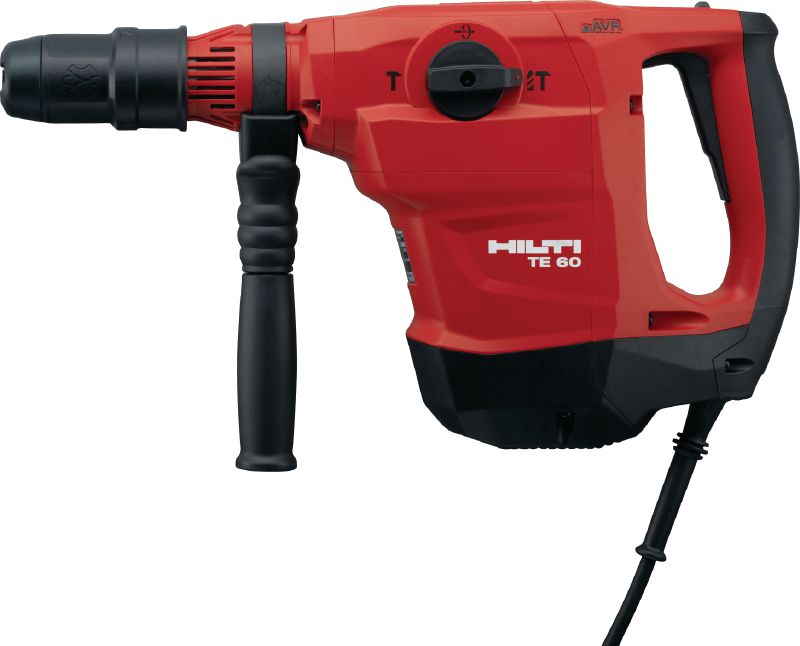

TE 60-AVR Rotary hammer

TE 60 AVR (83901)
TE 60 AVR (4th Generation) (86105)
TE 60 AVR (4th Generation) (86112)
TE 60 AVR (4th Generation) (86108)
TE 60 AVR (4th Generation) (86013)
TE 60 AVR (4th Generation) (86103)

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 6.8 kg
  • Single impact energy: 7.8 J
  • Hammer drilling diameter range: 12 - 100 mm

Customers also searched for SDS Max hammer drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP84,826.00

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
6.8 kg
Single impact energy
7.8 J
Hammer drilling diameter range
12 - 100 mm
Optimum hammer drilling range
18 - 40 mm
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Hammer drilling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.5 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
9.1 m/s² 2
Dimensions (LxWxH)
486 x 115 x 273 mm
A-weighted emission sound power level
107 dB (A) 3
A-weighted emission sound pressure level
99 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 735.7 KB ]

Features & Applications

Features

  • High versatility for a wide range of drilling and chiselling applications
  • Exceptionally high performance-to-weight-ratio
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

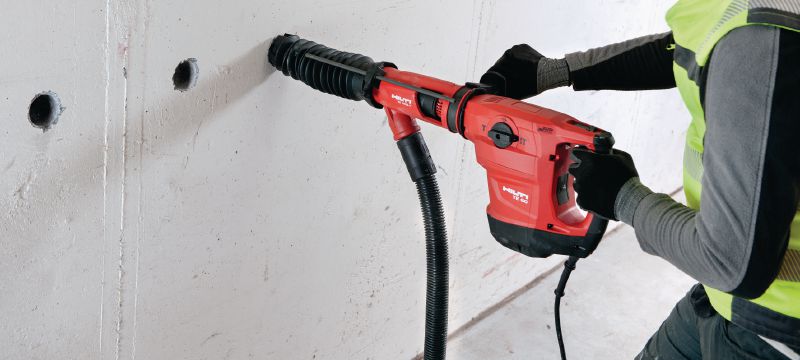

  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

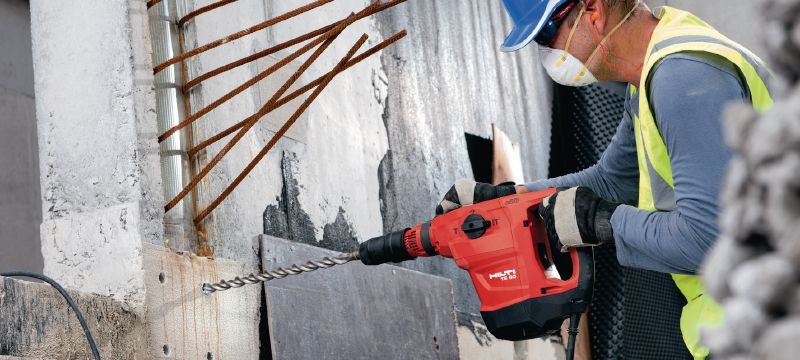

  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)

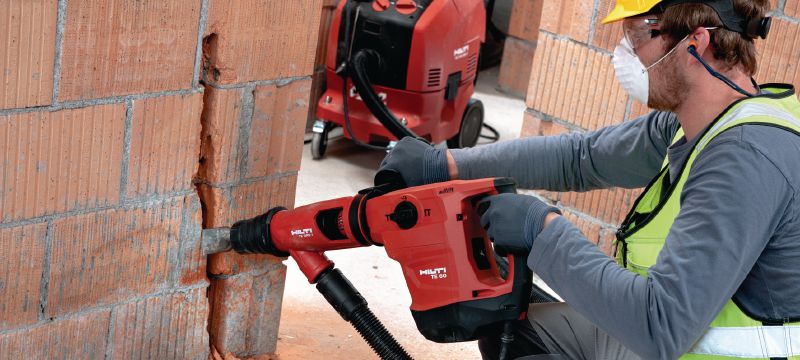

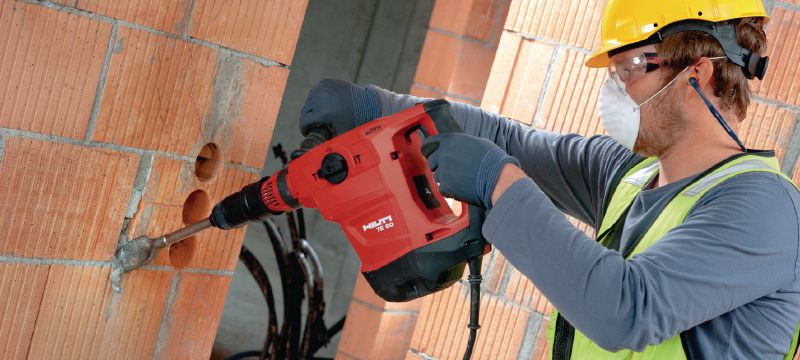

  • Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
  • Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3 1/8")
  • Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter

For approval or certificate information, please see individual items.
