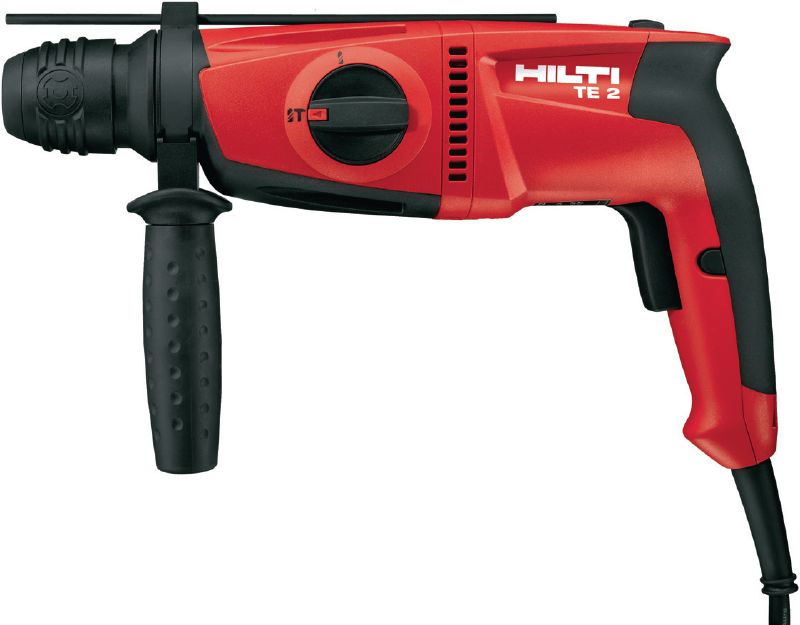

Rotary hammer

  • Weight according to EPTA-Procedure 01/2003 without battery: 2.7 kg
  • Optimum hammer drilling range: 4 - 12 mm
  • Single impact energy: 1.8 J

Customers also searched for Rotary HammerHammer DrillDrillPercussion Drill or SDS Plus.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
2.7 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.8 J
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
4 - 22 mm
Hammer drilling RPM
1200 rpm
Full hammering frequency
4600 impacts/minute
Functionality
Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.1 m/s² 1
A-weighted emission sound pressure level
94 dB (A) 2
Dimensions (LxWxH)
352 x 89 x 203 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Dual-mode SDS rotary hammer (hammer drilling and drilling)
  • Sturdy motor with high load rating for maximum reliability
  • TE-C Click chuck and user-friendly selector switch for high working comfort
  • Electronic switch for precise hole-starting
  • 360° side handle adjusts easily for preference or for use in tight spaces

Applications

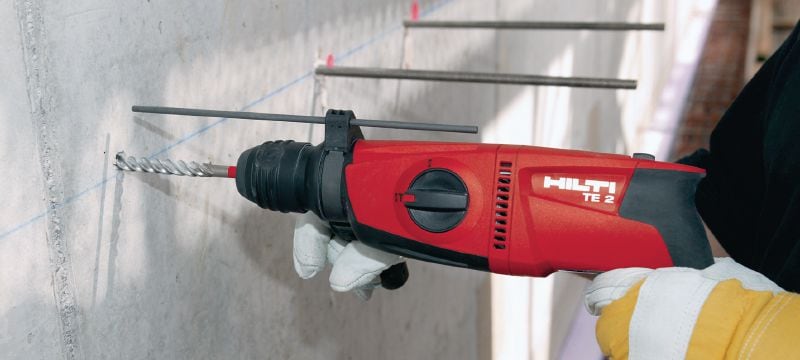

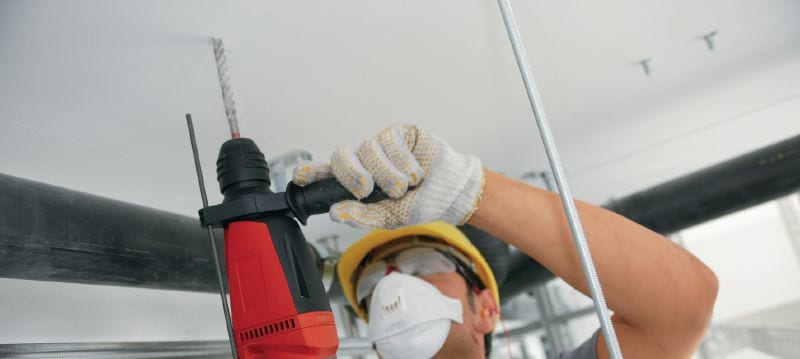

  • Everyday hammer drilling in concrete, masonry and natural stone
  • Ocassional drilling in steel, wood and plastics using the optional chuck adaptor
  • Driving screws using the optional bit holder
  • Reverse rotation is useful for removing stuck drill bits

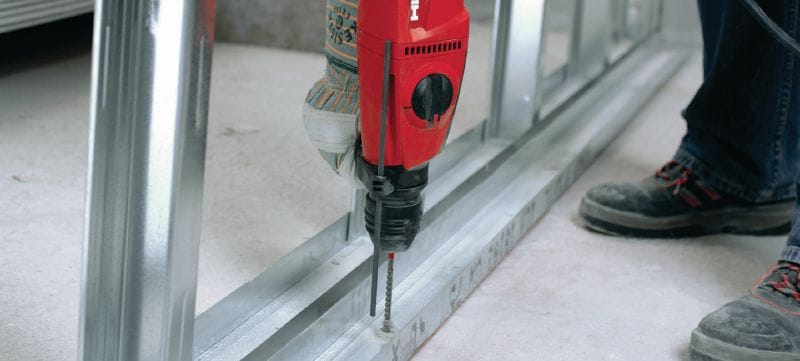

  • Drilling in the 3-13 mm diameter range in solid metal / up to 20 mm in sheet metal

For approval or certificate information, please see individual items.
