Nuron

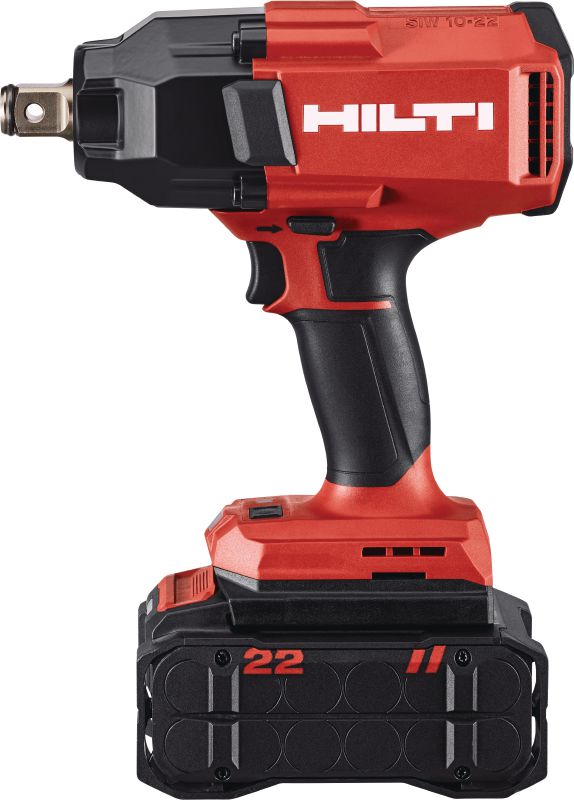

SIW 10-22 ¾" high-torque cordless impact wrench

Cordl. imp. wrench SIW 10-22 3/4" case #2361530

Configurator
Technical Data
Documents
Features & Applications
Related Products
L600171 (3079728)
L148799_cropped (3192121)
L148768_cropped (3172769)
L149300_cropped (3316754)
L149305_cropped (3317539)

Ultimate-class, high-torque cordless impact wrench with ¾" anvil and friction ring for heavy bolting and anchoring

  • Anvil type: 3/4" through hole with friction ring
  • Maximum torque: 850 Nm (1); 1600 Nm (2)
  • Nut-busting torque: 2000 Nm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP28,468.00
PHP28,468.00 / 1 Piece

Technical Data

Anvil type
3/4" through hole with friction ring
Maximum torque
850 Nm (1); 1600 Nm (2) 1
Nut-busting torque
2000 Nm
Full hammering frequency
2500 impacts/minute
Number of gears
2
No load RPM
gear 1: 1000 rpm; gear 2: 1250 rpm
Dimensions (LxWxH)
217 x 86 x 235 mm
Tool body weight
2.9 kg
A-weighted emission sound pressure level
100 dB (A) 2
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 10-22 (01), Arabic, cn, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • Advanced cordless performance – heavy-duty cordless impact wrench offers higher torque and greater power in a more compact body
  • Designed to last – robust brushless motor and ¾" anvil contribute to the durability and consistent performance of our cordless impact wrenches
  • More productivity and control – two speed settings and brighter LED light so that you can transition easily from heavy to lighter-duty applications
  • Less vibration for more user comfort – lower tool vibration enables longer periods of work without user fatigue
  • On the Nuron battery platform – cordless tools without compromise, thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

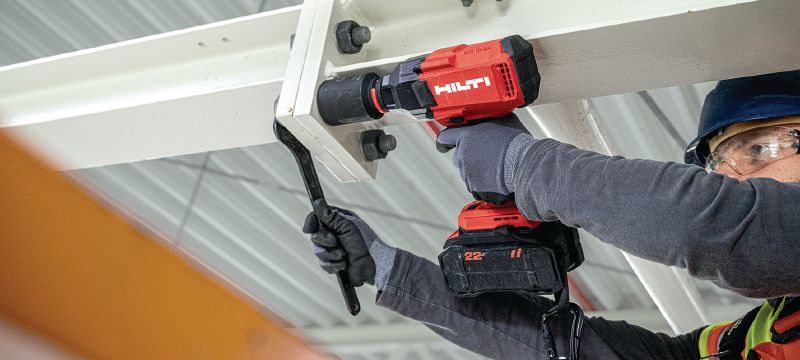

  • Bolting steel for primary and secondary steel structures, handrails, racking and machinery (up to M30 diameter high-tensile bolts)

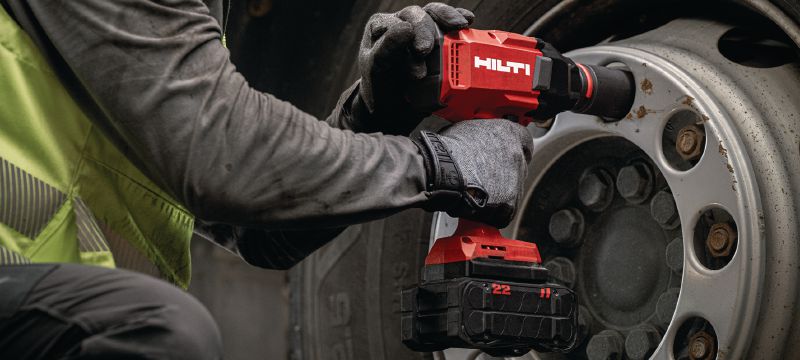

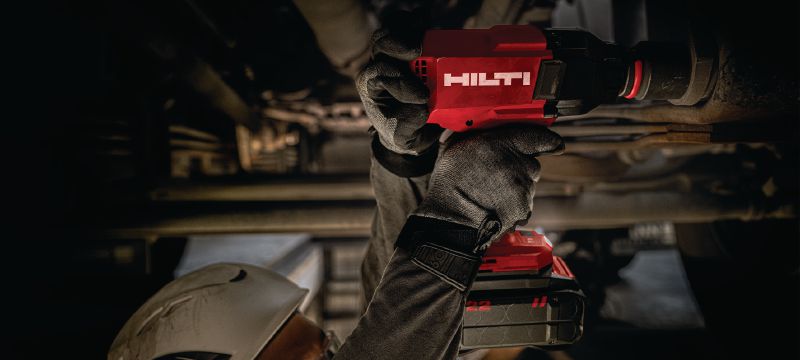

  • Loosening large rusty bolts for maintenance, operation and repair work

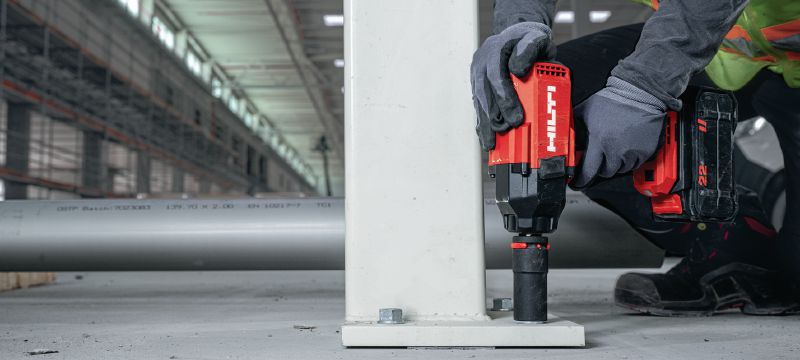

  • Setting large diameter HUS anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (10-16 mm diameter)
  • Lag bolting in wood for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
  • Bolting structural steel connections, pipe flanges, equipment, 1/2"to 1 1/8" diameter structural bolts
