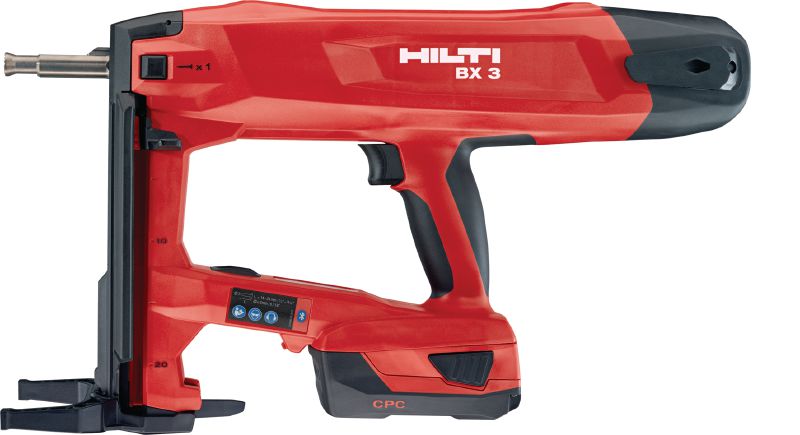

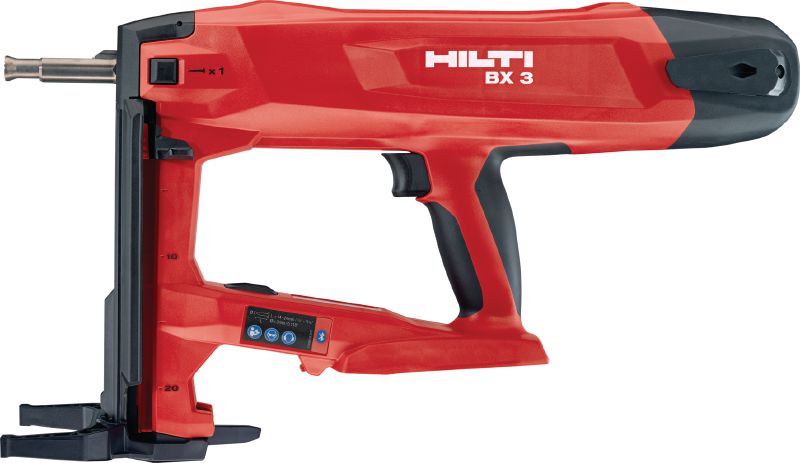

BX 3-ME (02) Cordless fastening tool

Batt.-actuated tool BX 3-ME A22 case #2184454

22V cordless nailer for electrical and mechanical applications

Dimensions (LxWxH): 473 x 134 x 280 mm
Tool body weight: 3.331 kg
Fastener length range: 14 - 24 mm

Customers also searched for battery nail gun or electric nail gun.

Choose options

Hilti Connect

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

PHP153,658.00

1 Piece

Technical Data

Dimensions (LxWxH)

473 x 134 x 280 mm

Tool body weight

3.331 kg

Fastener length range

14 - 24 mm

Bluetooth

Yes

Power source type

22 V battery platform

Rated voltage

21.6 V

Documents

pdf Direct Fastening Technology Manual, English [ 11 MB ]

Download

pdf [PDS_T_002_BX] BX 3 Battery-actuated tool - Data Sheet 05/2025, English [ 1.3 MB ]

Download

Features & Applications

Features

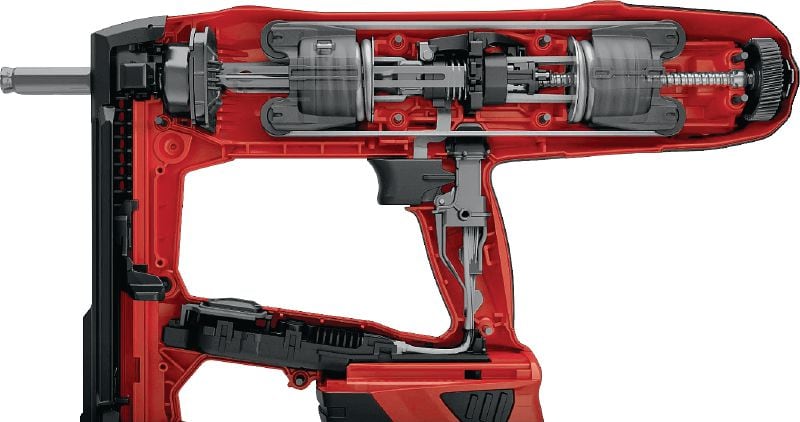

Second generation of Hilti’s combustion-free direct fastening technology – for high-quality, more reliable fastening on concrete, steel and some types of solid masonry
Combustion-free operation – no gas cans or powder cartridges to store and dispose of
Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2 Ah, 3.0 Ah or 2.6 Ah)
Can be used with collated and single nails, such as threaded studs – magazine capacity of 20 nails
Engineered for high productivity – fastening rate of 1.3 nails per second

Applications

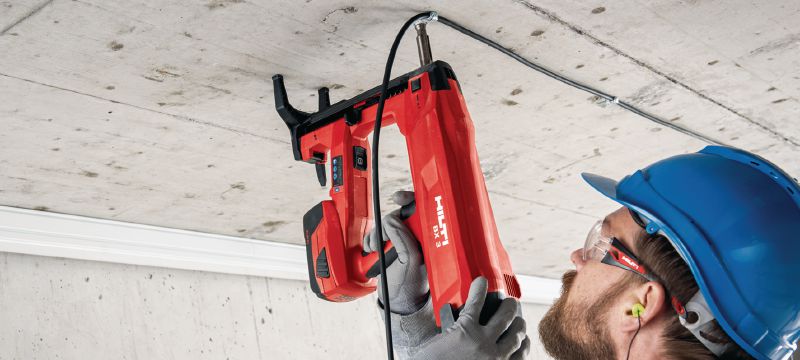

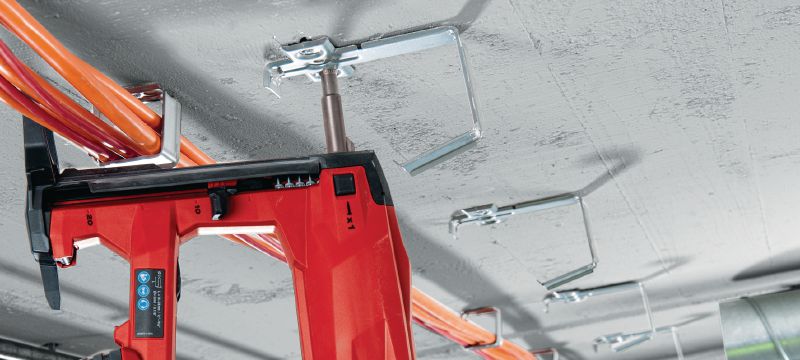

Fastening cables and conduits to floors, walls and ceilings – on concrete, solid masonry or steel

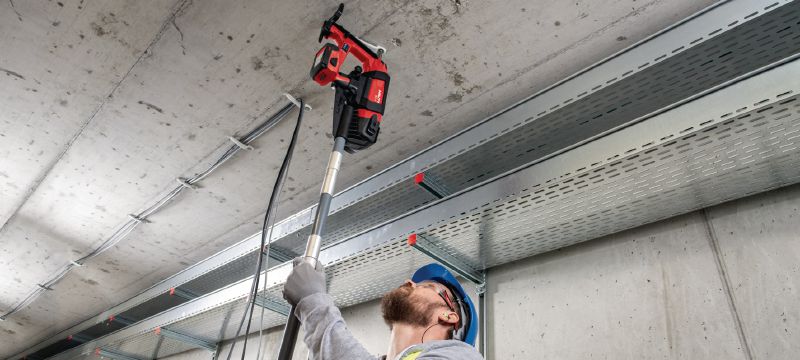

Fastening various light electrical installations to floors, walls and ceilings on concrete, solid masonry or steel
Fastening heating pipes to floors on concrete
Suitable for various light-duty fastening applications on concrete, solid masonry or steel
Fastening metal stud/track for plasterboard walls to floors, walls and ceilings on concrete, solid masonry or steel – use of the IF nailer nose is recommended
