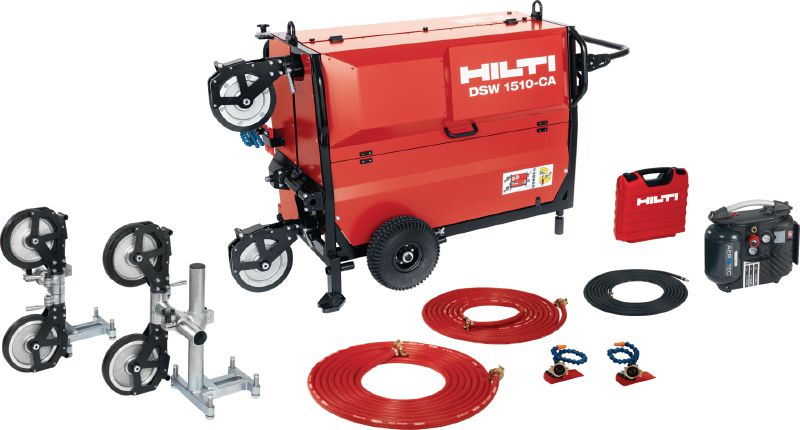

DSW 1510-CA Wire saw
Electric wire saw (15 kW) designed for easier operation on heavy-duty cutting jobs with automatic wire tension, automatic cut steering, and wireless remote control
- Motor power: 16 kW
- Power source: Electric
- Min. generator power: 40 kVA
Technical Data
Motor power
16 kW
Power source
Electric
Min. generator power
40 kVA
Wire storage capacity
9.8 m
Weight
345 kg
A-weighted emission sound pressure level
82.7 dB (A) 1
IP protection class
IP 55 (EN 60529)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Cut Assist – equips diamond wire saws for fully automated cutting. Cut Assist means much higher productivity and more time for other tasks

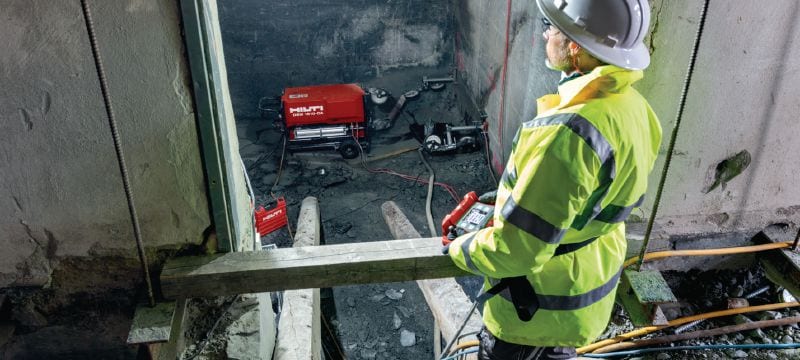

- Wireless remote control steering – the operator can stand at a safer distance from the wire saw during the cut
- Electric box integrated – no extra cables needed
- Higher initial torque to get the wire started
- Keyless adjustment of the guide pulleys
Applications
- Structural alterations to buildings or infrastructure – openings of all kinds and almost any shape
- Sawing anything from heavily reinforced concrete to thick stonework
- Demolition of structural components – such as bridges, chimneys, tunnels, dams, foundations
- Sawing in noise-sensitive locations
- Diamond wire cutting when space is too confined for wall saws
For approval or certificate information, please see individual items.
