DD 150-U Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
L118373 (202076)
L118384 (202085)
L118384_v1 (202082)
L120021_cropped (203137)
L119993_cropped (203107)
L119979_cropped (203119)
L119919_cropped (203100)
L120030_cropped (203121)
L119987_cropped (203101)
L119901_cropped (203096)
L119973_cropped (203133)
L120023_cropped (203125)

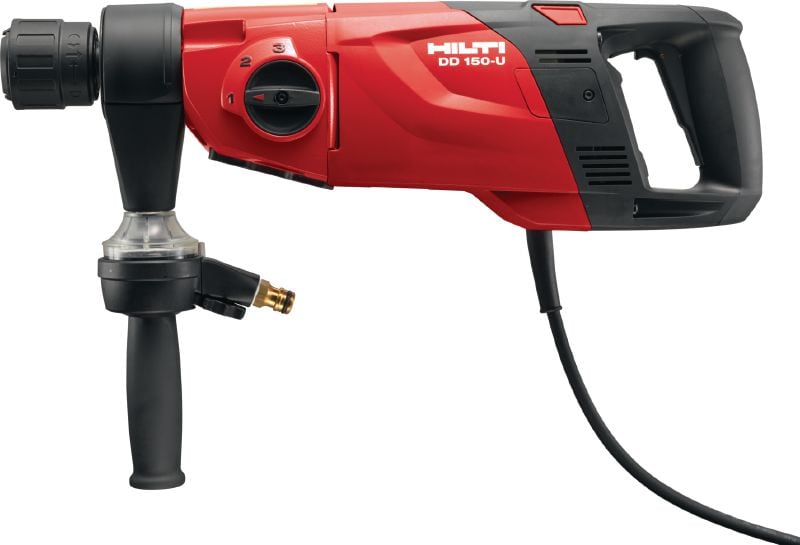

Versatile diamond coring machine for handheld or rig-based coring from 8-162 mm (5/16 - 6-3/8") in diameter

  • Diameter range: 8 - 162 mm
  • Base material: Concrete, Reinforced concrete, Asphalt, Masonry

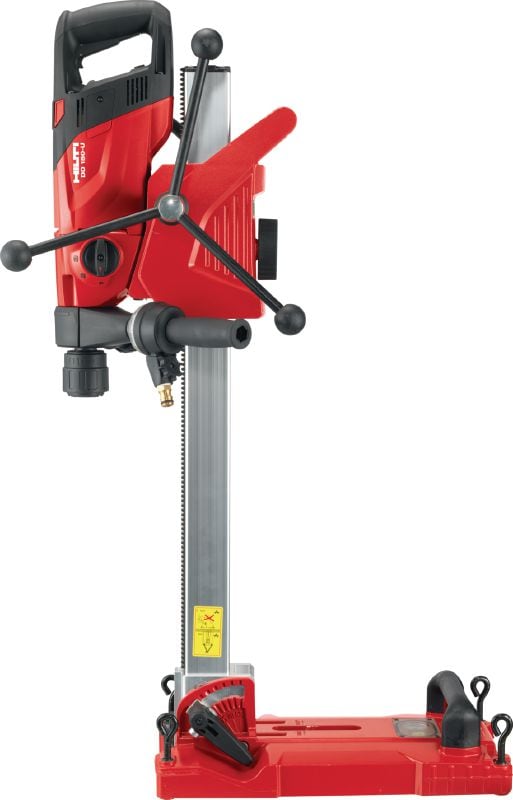

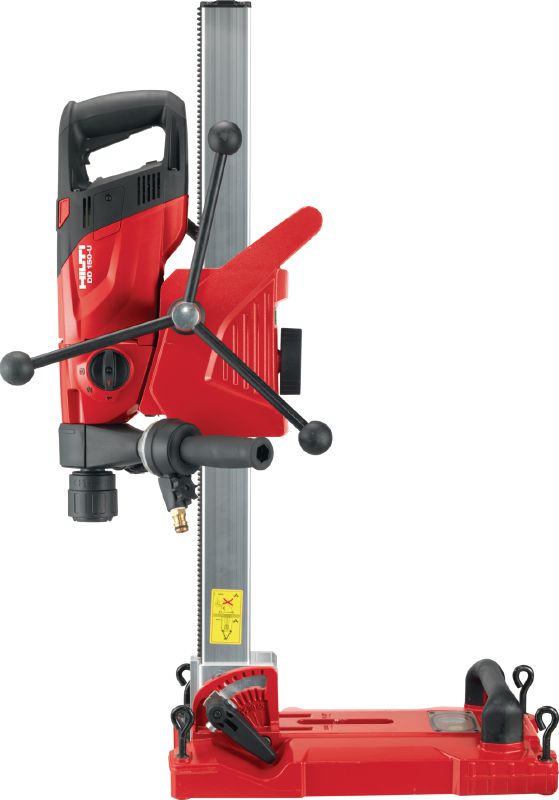

  • Operation mode: Hand-held and rig-mounted drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP130,470.00

Technical Data

Diameter range
8 - 162 mm
Base material
Concrete, Reinforced concrete, Asphalt, Masonry
Operation mode
Hand-held and rig-mounted drilling system
Number of gears
3
No load RPM
gear 1: 840 rpm; gear 2: 1640 rpm; gear 3: 3070 rpm
Weight according to EPTA-Procedure 01/2003 without battery
8.3 kg
Weight of complete system
22 kg
Dimensions (LxWxH)
516 x 129 x 159 mm
A-weighted emission sound pressure level
101 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
3.9 m/s²
Corner accessibility
53 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Operating Instruction
Material safety datasheet
pdf Operating Instruction DD 150-U (03), Arabic, Bulgarian, cn, Greek, English, Croatian, Italian, Japanese, Kazakh, Korean, Romanian, Russian, Slovenian, Turkish, Ukrainian, Chinese, Serbian [ 16.7 MB ]
pdf Operating Instruction DWP 10 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.5 MB ]
pdf Operating Instruction DWP 10 (ENHE), English, Hebrew [ 2.5 MB ]
pdf Operating Instruction DD VP-U (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese [ 3.3 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]

Features & Applications

Features

  • High motor performance and sturdy three-speed gearing for optimum drilling speed
  • 360-degree adjustable side handle with integrated dust and water management functions
  • Real-time feedback display with digital spirit level, gear selector, power control function, advanced usage statistics and easy-to-understand service messages
  • Bluetooth® connectivity to WMS 100 water management system
  • Real-time usage statistics analysis via the Hilti Connect app

Applications

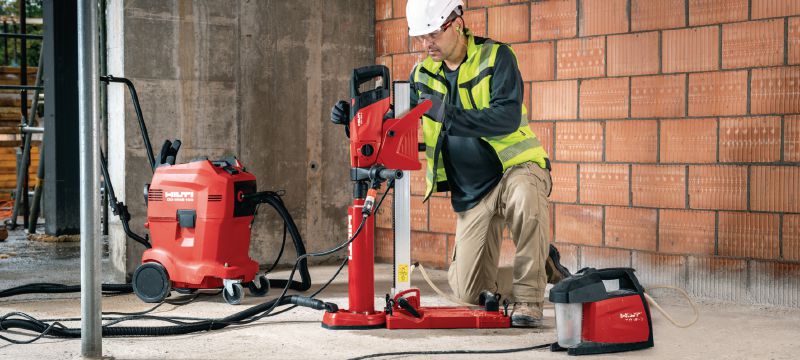

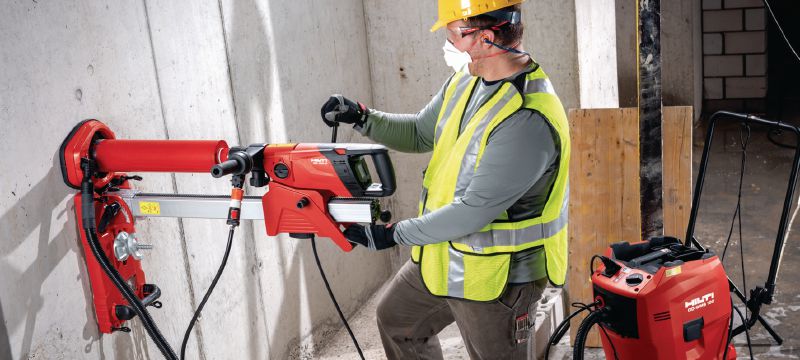

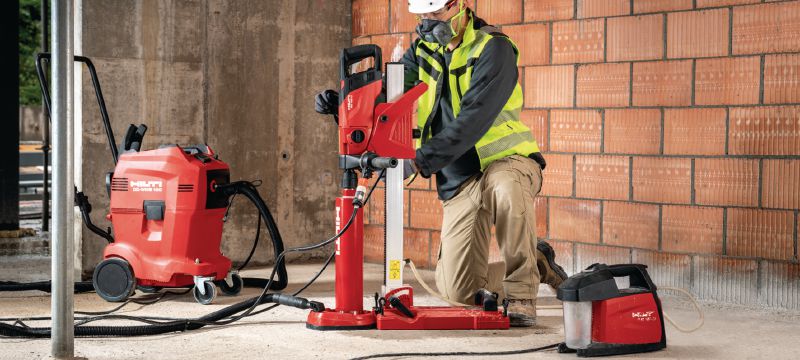

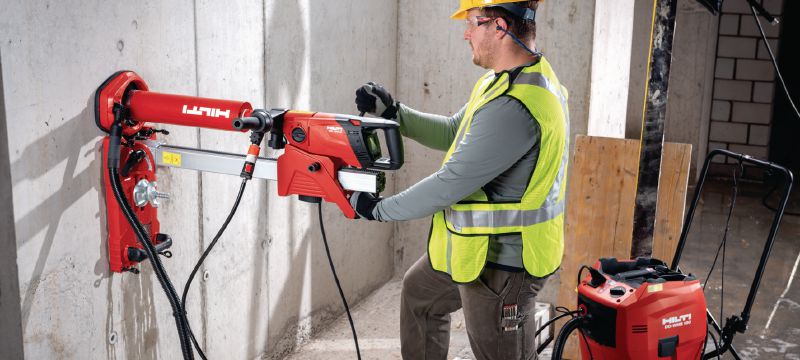

  • Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers

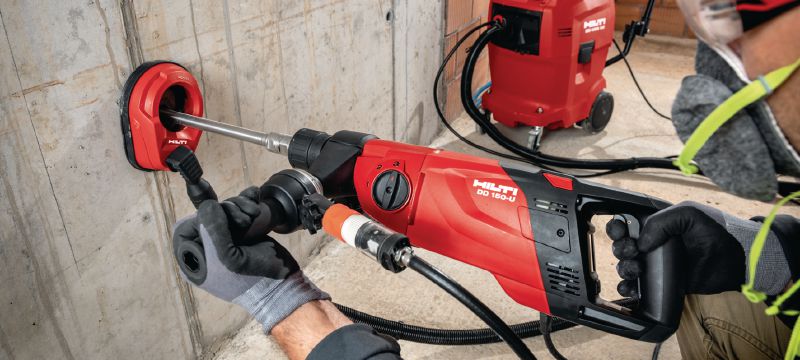

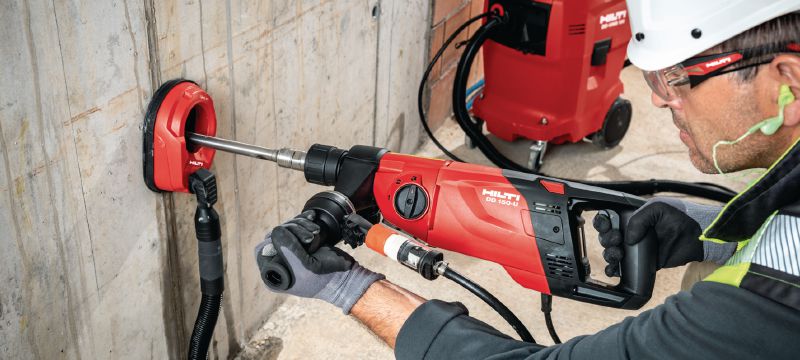

  • Hand-guided wet drilling for setting large-diameter anchors and reinforcing bars

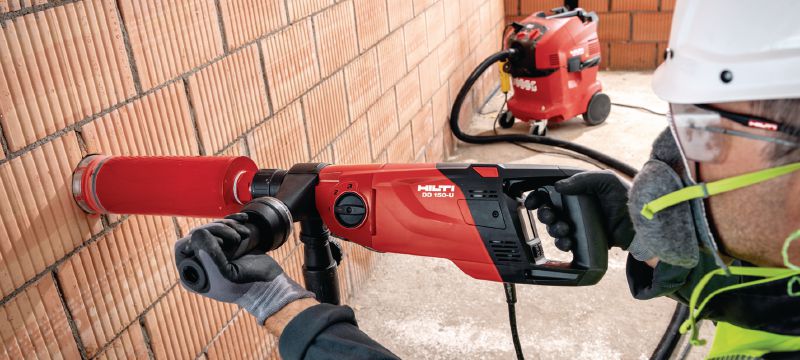

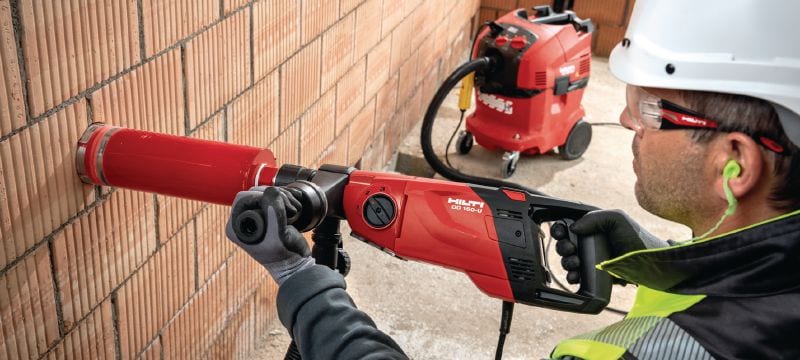

  • Hand-guided dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations and for chimney and cooker installation

For approval or certificate information, please see individual items.
