TE 500-X HEX-17 chipping hammer

L110091 (188965)
L110934_cropped (190064)
L110941_cropped (190068)
L110956_v1_cropped (201294)

Versatile Hex 17 demolition hammer for light-duty chiseling in concrete and masonry

  • Working direction: Wall
  • Tool chuck type: HEX 17
  • Weight according to EPTA-Procedure 01/2003 without battery: 4.8 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP38,052.00

Technical Data

Working direction
Wall
Tool chuck type
HEX 17
Weight according to EPTA-Procedure 01/2003 without battery
4.8 kg
Single impact energy
7.5 J
Full hammering frequency
3228 impacts/minute
Max. chiselling performance
1000 cm³/min
Dimensions (LxWxH)
419 x 105 x 240 mm
Triaxial vibration for chiselling in concrete
15.3 m/s² 1
Dust removal system available
TE DRS-Y
A-weighted emission sound pressure level
90 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 735.7 KB ]

Features & Applications

Features

  • Robust breaker with extra protection against heat and dust – prolonging the lifetime and lowering repair costs
  • Low weight and compact design for easy handling
  • Carefully designed cooling allows the breaker to be gripped in places which were usually too hot – making the tool more comfortable and less tiring to use
  • Robust trigger switch with variable speed control
  • Optional DRS-Y dust removal system collects up to 95% of dust when working on concrete and masonry

Applications

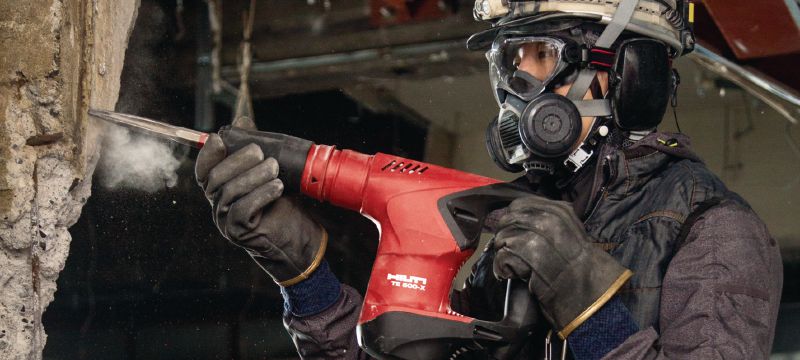

  • Making or enlarging breaches in concrete/masonry walls

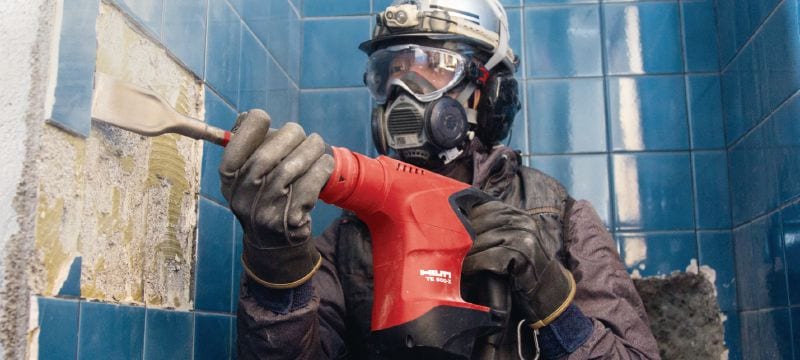

  • Removing tiles
  • Surfacing work on concrete walls
  • Corrective chiseling on concrete/masonry walls
  • Creating channels in concrete or masonry

For approval or certificate information, please see individual items.
