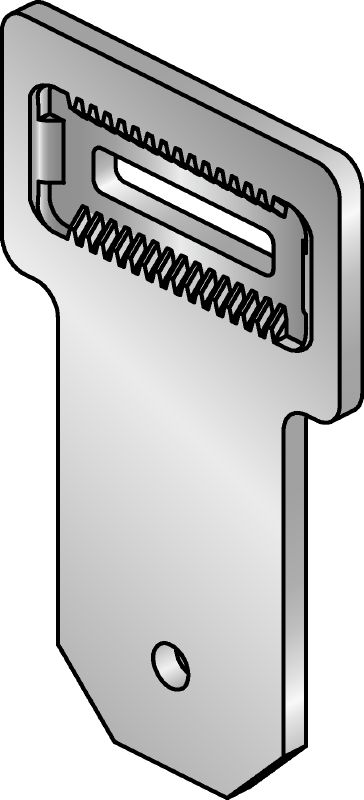

MIC-U-MA Connector
Hot-dip galvanised (HDG) multi-angle connector used with MIC-MAH connectors for fastening MI girders to one another at an angle
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Modular Girder Type
- 90, 120
Pack size
- 2 pc
Quantity
Packs
Total Pieces
2
Discounted net
PHP9,216.90
PHP4,608.45
/
1 Piece
Technical Data
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
pdf Corrosion handbook, English [ 9.4 MB ]
Features & Applications
Features
- Connector comes with self-locking nuts to help protect against vibration
- Can be finely adjusted by up to 5 mm
- Keyed hold for optimum transmission of forces and moments
Applications

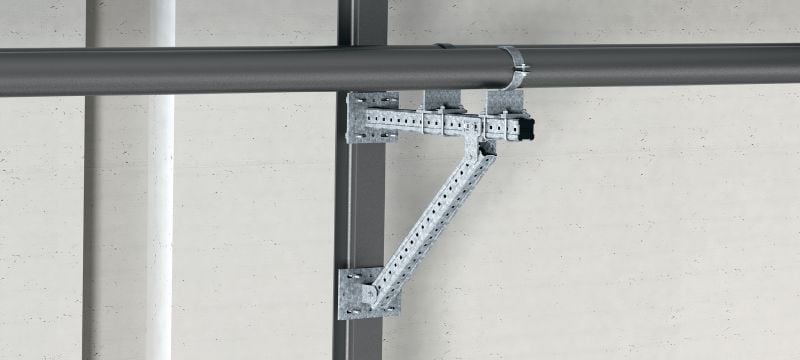

- For supports or corner struts at angles between 0° and 180°
For approval or certificate information, please see individual items.
