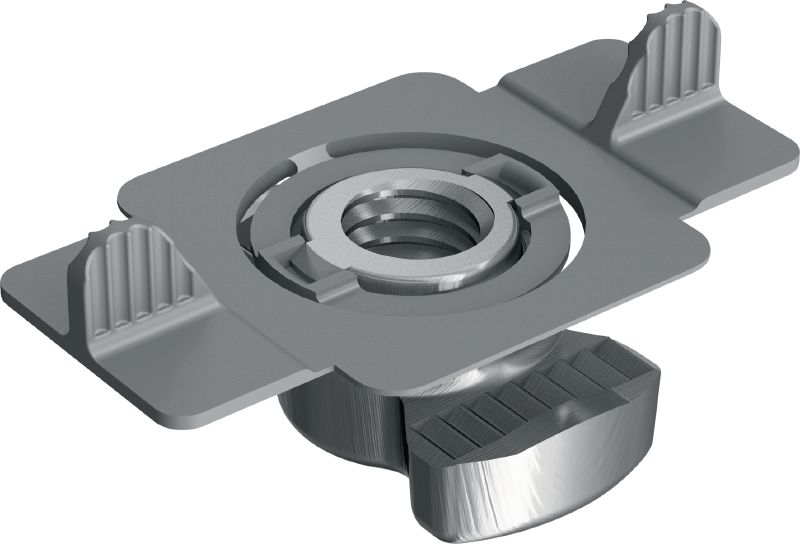

MQM-R Wing nut
Stainless steel wing nut for connecting modular support system components
- Material composition: Nut: 1.4581 (A4) - DIN EN 10283, Wings: plastic PA
- Surface finish: Outdoor Plus - Stainless Steel
- Environmental conditions: Outdoor high pollution (C4 – high / C5)
Technical Data

Material composition
Nut: 1.4581 (A4) - DIN EN 10283, Wings: plastic PA
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Documents
Features & Applications
Features

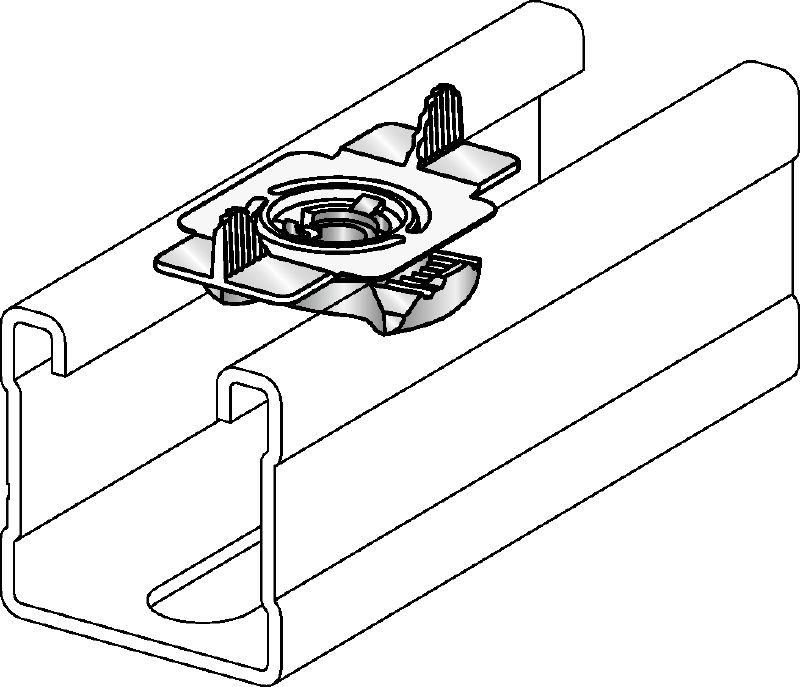

- Quick connection of modular support system components to the open side of MQ strut channel
- Flexible wings – for quicker installation and positioning within MQ strut channel openings
- Serrated surfaces – for quicker, more accurate adjustment
- Compact dimensions
- Allows use in shallow, standard and deep channel profiles
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
For approval or certificate information, please see individual items.
