MQT Beam clamp
Beam clamp MQT-21-41 #369675

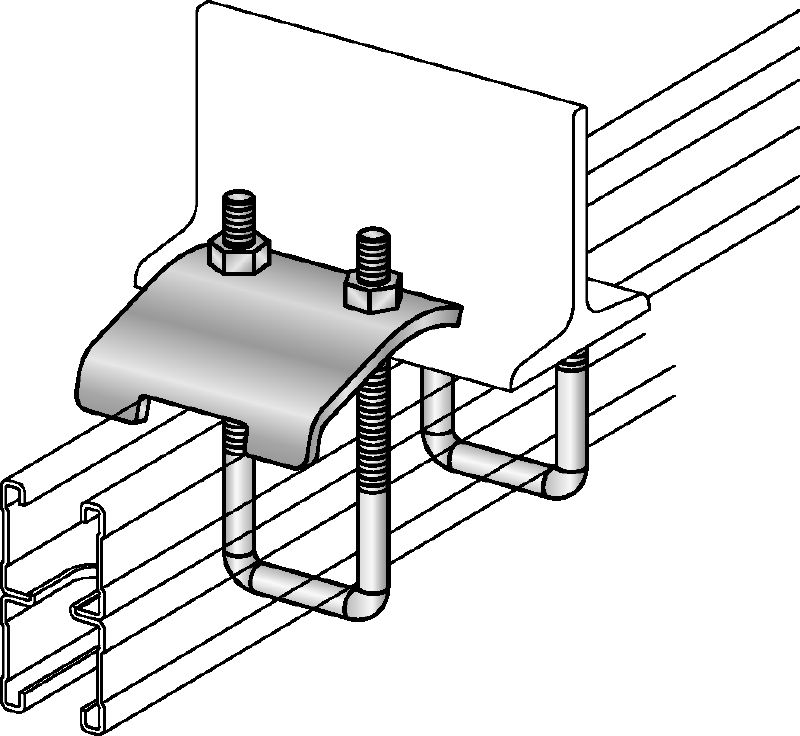

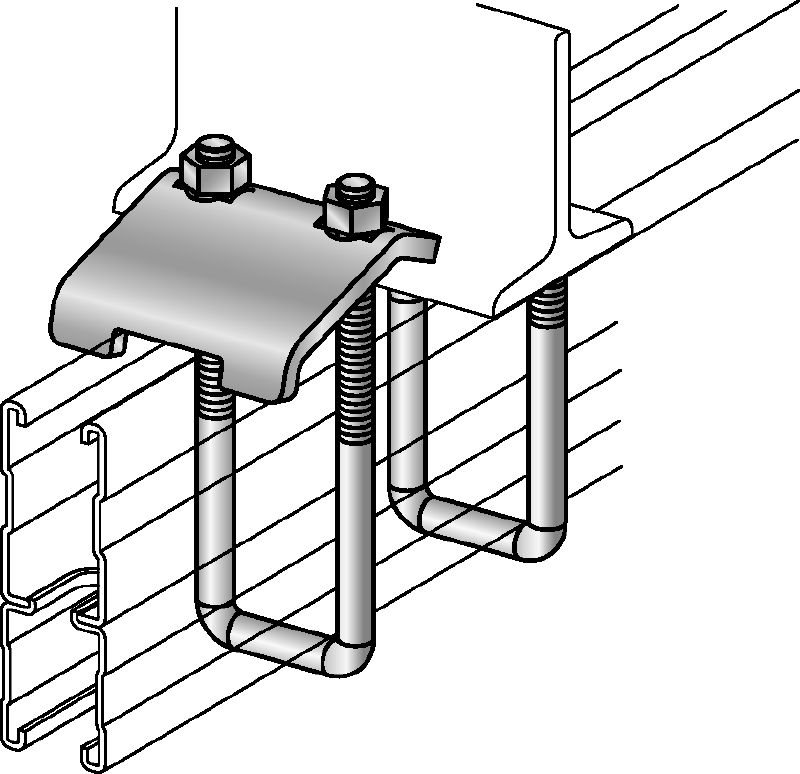

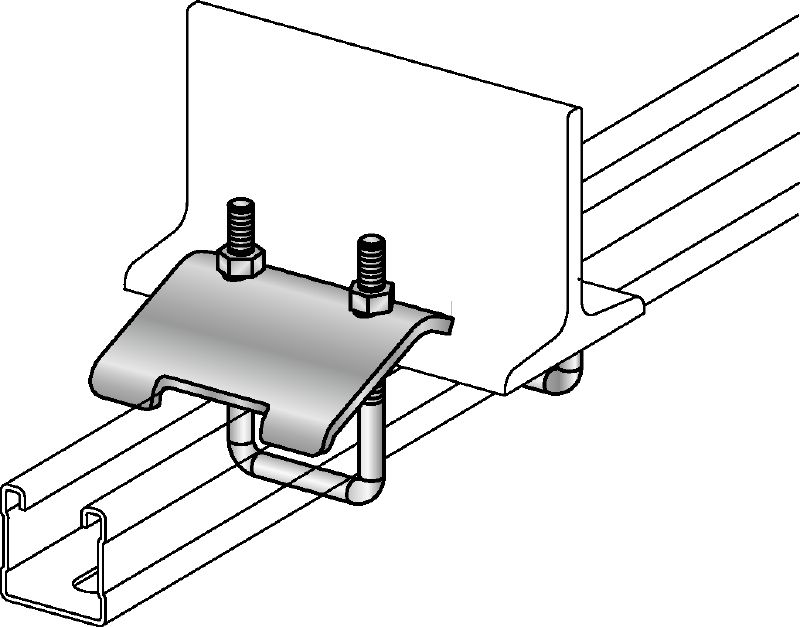

Galvanised beam clamp for connecting MQ strut channels directly to steel beams
- Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 5 mm
Choose options
Thread connection - M
- M8
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
PHP12,080.00
PHP1,208.00 / 1 Piece
Technical Data
Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanised
Material thickness
5 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
pdf Engineering Centre Whitepaper - FoS Studs and Beam Clamps (EN), English [ 762.1 KB ]
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
- Versatile, no small parts to lose
- The attachment fits all standard beams (max. clamping thickness = 23 mm)
- Quick installation
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
- For fastening MQ channels to steel beams without drilling or welding (use only in pairs!)
