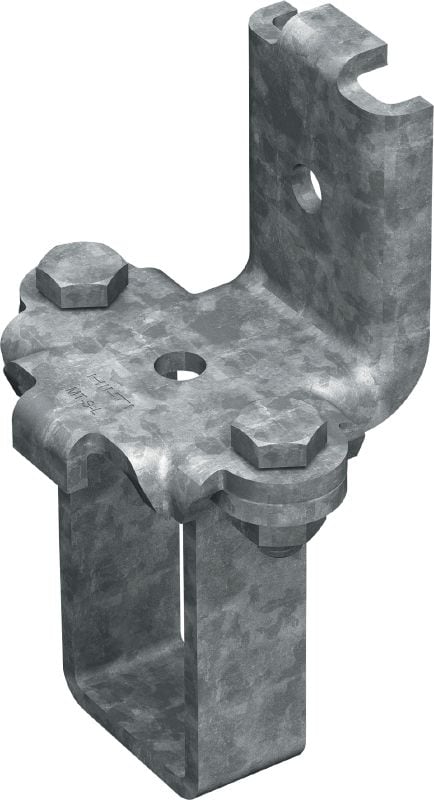

MT-S-L 40D OC Seismic angle bracket
Angle connector MT-S-L 40D OC seismic #2282205
Angle bracket for assembling braced MT-40D strut channel structures in seismic zones, for outdoor use with low pollution
- Material composition: Q235 or better steel
- Surface finish: Hot-dip galvanised - for outdoor use
- Material thickness: 5 mm
Choose options
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
PHP15,264.00
PHP1,526.40 / 1 Piece
Technical Data
Material composition
Q235 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
5 mm
Weight
1 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
pdf Seismic_Manual_0522_W4571_EN, English [ 8.8 MB ]
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
- Adaptable – unlike welding, seismic brackets allow you to modify strut channel framing for future MEP requirements
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
- Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects
Applications
- Right-angle connections between MT-40D double strut channels with connection to seismic bracing
- Assembling metal framing for MEP support structures in seismic zones
- Suitable for use in moderately corrosive environments
