MP-MXI heavy-duty pipe clamp

Heavy-d. pipe ring MP-MXI 219 M16 #372238

Configurator
Technical Data
Documents
Features & Applications
Related Products
14654.tif
17569.tif
MP-MXI (imperial)
60290_X04.eps

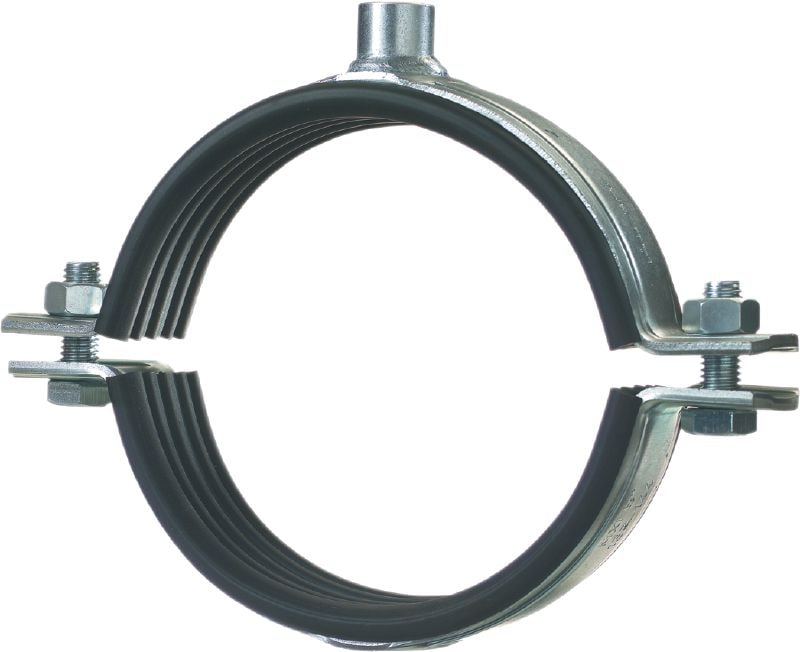

Galvanised pipe clamp with sound insulation for extra heavy-duty applications

  • Noise reduction: 16 dB (A)
  • Temperature resistance: -50 - 120 °C
  • Material composition: DD11 - DIN EN 10111
premium

Choose options

Clamping range - D
  • 219 - 228 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP20,790.00
PHP2,079.00 / 1 Piece

Technical Data

Details
Technical illustrations
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Tightening torque
20 Nm
Product class
Premium

Documents

Documentation
Sustainability Documentation
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Non-slip, pre-fitted profiled rubber inlay
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components

Applications

  • heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting process and control queues
  • Installation of industrial pipework
