MP-UB OC u-bolt (metric)

Configurator
Technical Data
Documents
Features & Applications
Related Products

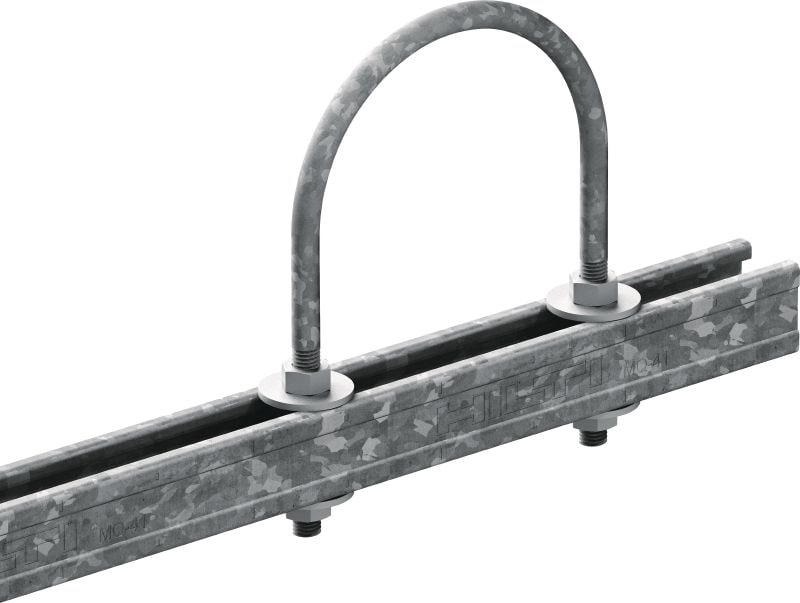

MP-UB-03 (210857)
MP-UB-04 (210852)

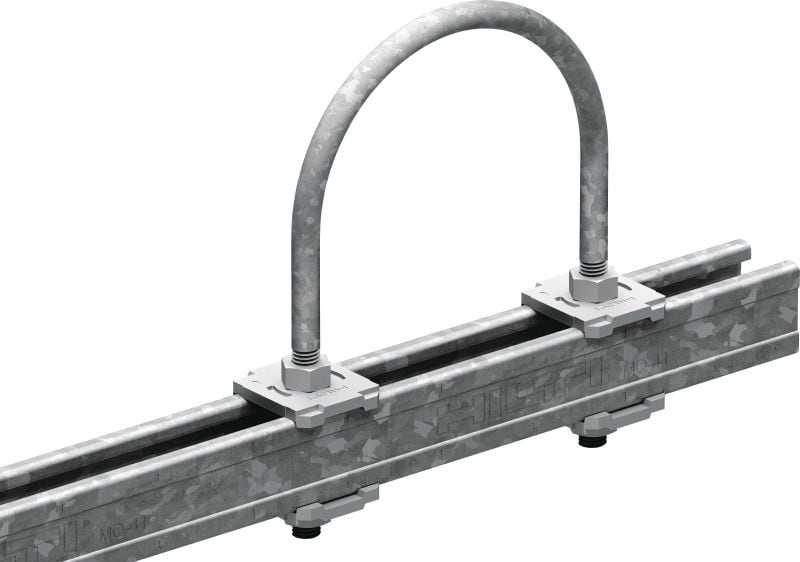

MP-UB-05 (210853)

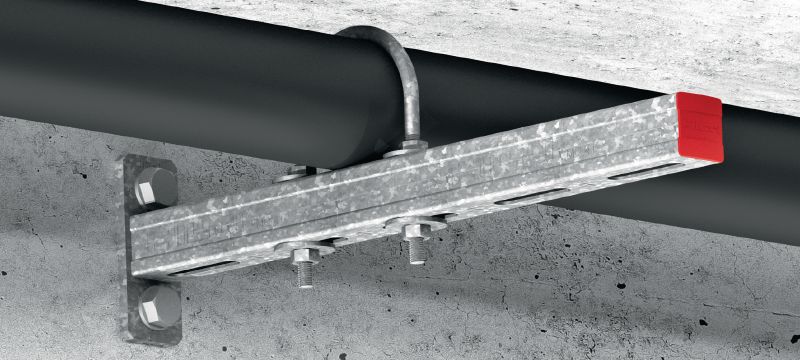

MP-UB-application-05_cropped (210859)

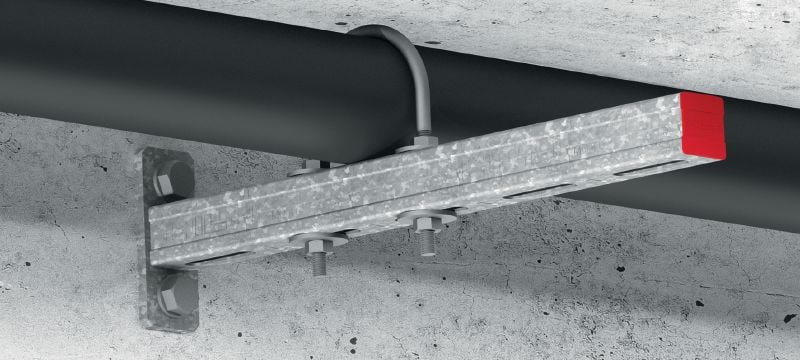

MP-UB-application-08_cropped (210856)

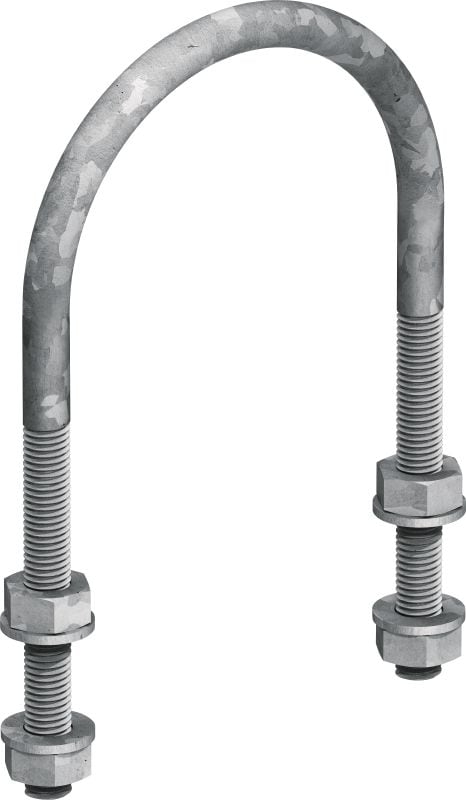

U-bolt

Outdoor coated (OC) u-bolt for universal piping applications

  • Material composition: Q235 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
standard

Choose options

Diameter - D
  • 110.9 mm
  • 117.2 mm
Nominal pipe size (imperial)
  • 4 in
Nominal pipe size
  • 100 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Product class
Standard

Documents

Sustainability Documentation
Operating Instruction
pdf  EPD_Pipe Fixation (Metal/Polym, English [ 2.1 MB ]

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Small contact surface between u-bolt and pipe
  • Approved for sprinkler applications under VdS
  • Approved for sprinkler applications under UL / NFPA
  • Channel through bolting up to a diameter of 324 mm / 12"

Applications

  • Universal pipe fixation up to 24"
  • single-point fastening for sprinkler applications up to 324 mm / 12"
  • Installation of non-insulated pipes in industrial environment

For approval or certificate information, please see individual items.
