CP 620 Firestop foam

Firestop foam CP 620 US #338725

Configurator
Technical Data
Documents
Features & Applications
Related Products
L-015179_kombi_v3 (208595)
L008674_v3 (208598)
L015182_v3 (208604)
CP620 cables wo ID plate
11843.tif
CP 620
CP 620 Fire Foam,expanding firestop foam,barrier,picto

Rigid and fast-curing firestop foam with excellent water resistance to help create a fire, smoke and moisture barrier around cable and mixed penetrations

  • Base materials: Concrete, Masonry, Drywall
  • Application temperature range: 10 - 30 °C
  • Colour: Red

Customers also searched for fire protection, repenetration, block, gapseal or engineering.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP4,862.70
PHP4,862.70 / 1 Piece

Technical Data

Base materials
Concrete, Masonry, Drywall
Application temperature range
10 - 30 °C
Colour
Red
Content per can/cartridge
300 ml
Chemical basis
Two-component polyurethane foam
Foam yield (up to)
1.9 l
Required dispenser
DSC
LEED VOC
1.3 g/l
Acoustics performance
Test report available
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-30 - 100 °C

Documents

Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]
pdf CP 620 product catalog [ 44.5 KB ]

Features & Applications

Features

  • Adheres to concrete, drywall and masonry
  • Approval for virtually any transit type – cables, trays, conduits and pipes (metal and plastic)
  • Suitable for complex and difficult-to-reach applications – single-sided installation possible and no reinforcing material needed
  • Fast curing in less than 10 minutes
  • Mold-, mildew-, water- and vapour-resistant

Applications

  • Concrete, drywall and masonry

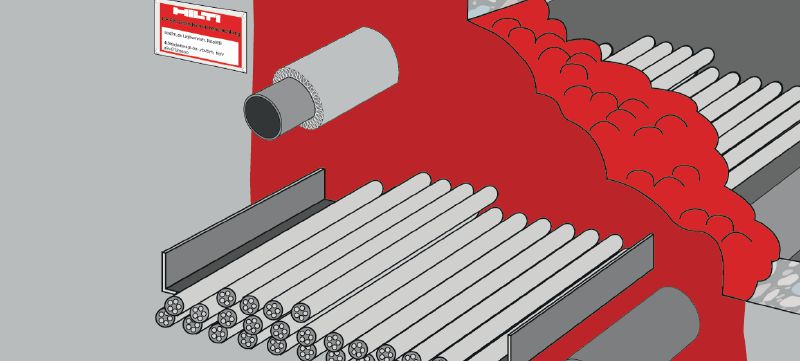

  • Multiple and mixed penetrations

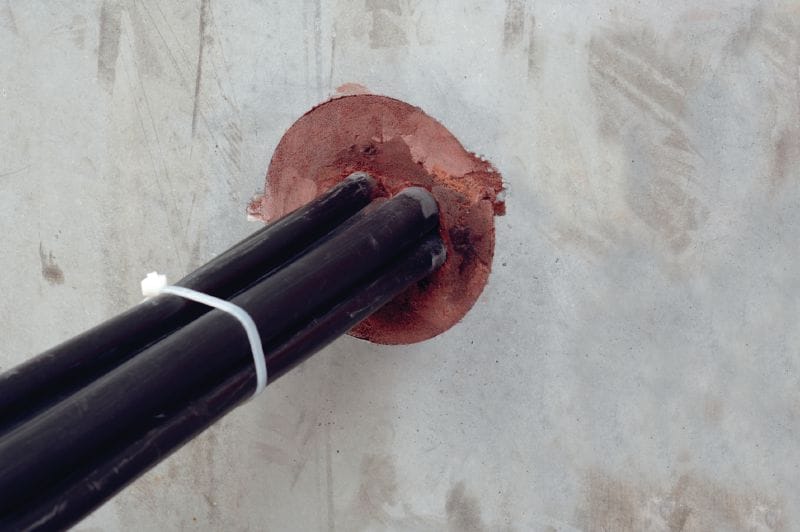

  • Single cables, cable bundles and cable trays

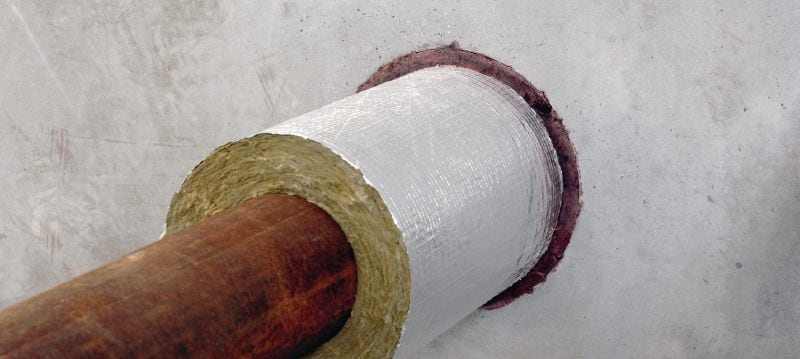

  • Metal pipes
  • Suitable for irregular and difficult-to-reach openings
