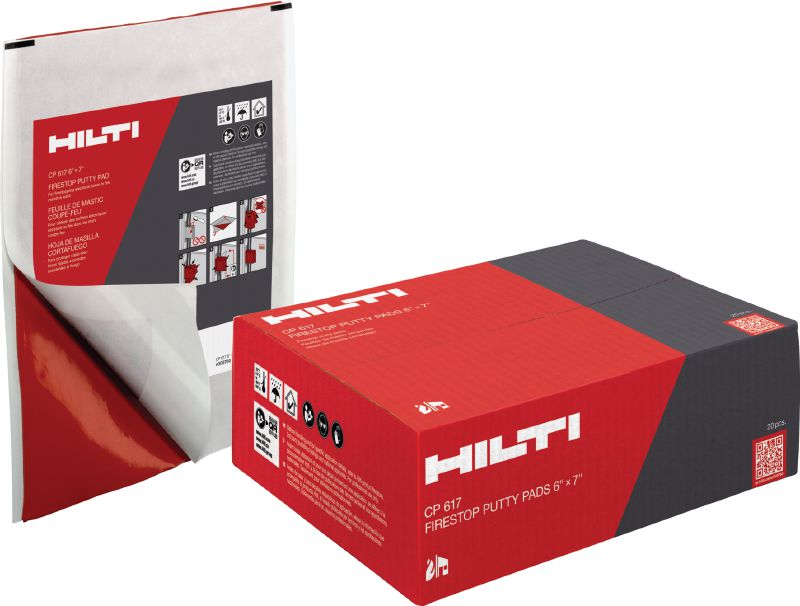

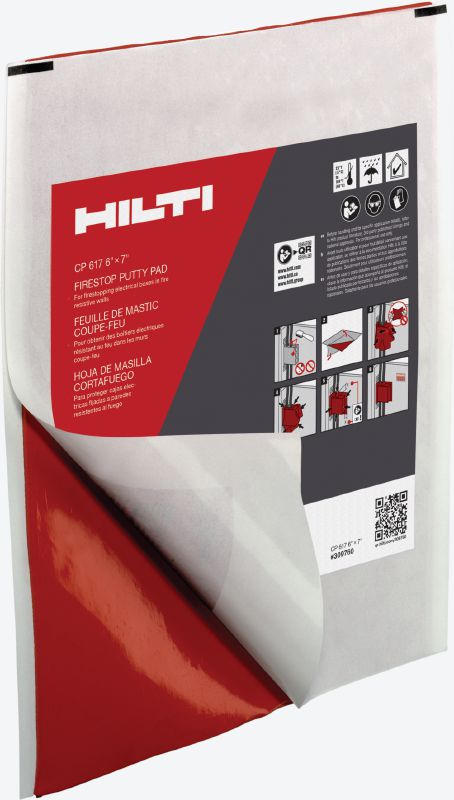

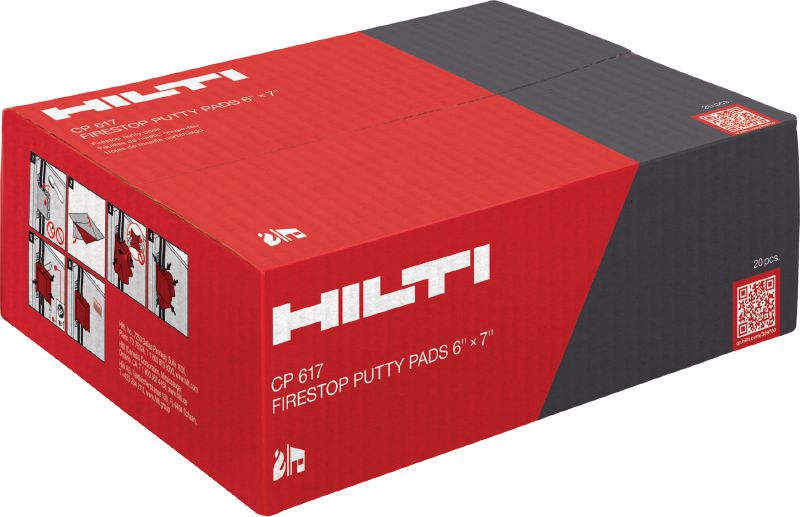

CP 617 firestop putty pad

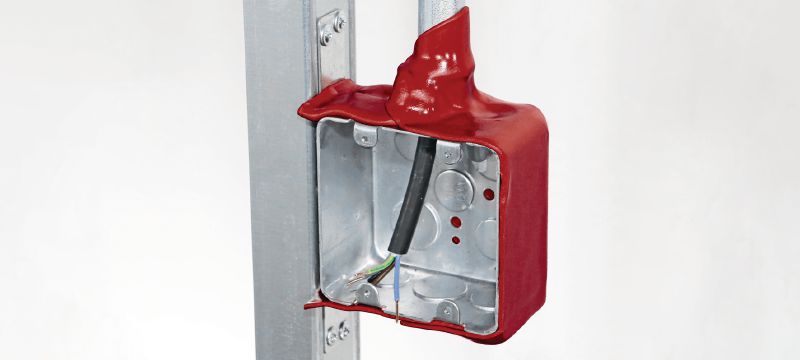

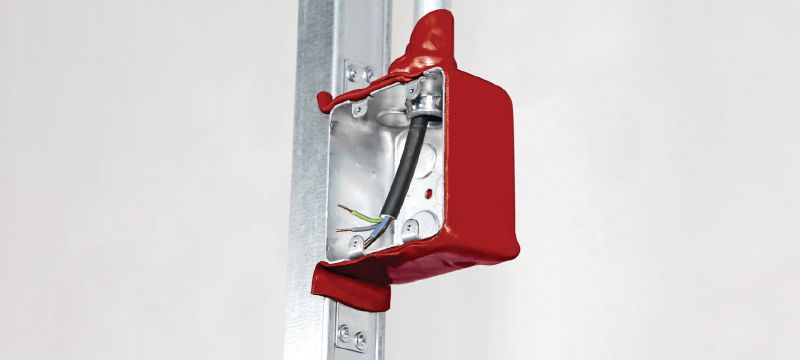

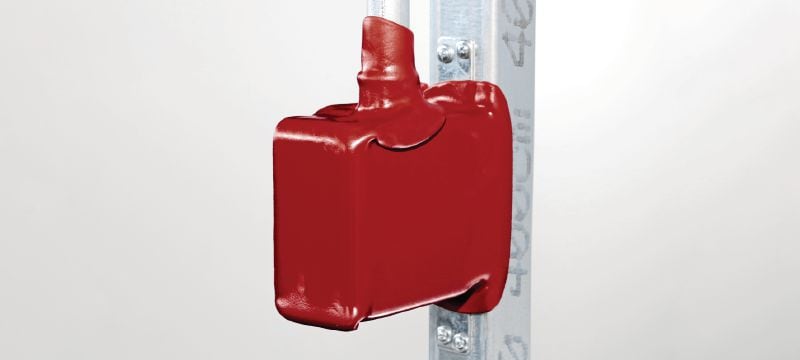

Moldable firestop putty to help protect electrical outlet boxes, junction boxes and metallic washer/dryer boxes
- Approvals: FM, UL 263
- Base materials: Gypsum, Wood, Metal
- Colour: Red
ultimate
Customers also searched for fire protection, repenetration, block, gapseal or engineering.
Choose options
Dimensions (LxWxH)
- 152 x 178 x 3 mm
- 229 x 229 x 3 mm
Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP4,489.20
Technical Data
Approvals
FM, UL 263
Base materials
Gypsum, Wood, Metal
Colour
Red
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 15<BR>Smoke development: 10
LEED VOC
2 g/l
Application temperature range
-0 - 40 °C
Storage and transportation temperature range
-5 - 40 °C
Temperature resistance range
-20 - 40 °C
Product class
Ultimate
Documents
pdf Material safety datasheet CP 617 / CP 619 (EN) [ 179.9 KB ]
Features & Applications
Features
- Excellent adhesion to gypsum, metal and plastic
- Putty remains flexible over time
- Pad can be moulded by hand without leaving residue on the hands
- Quick and simple to install
- Low electrical conductivity
Applications
- Commercial and residential applications
- Acoustically rated drywall - sound transmission classification 59 according to ASTM E90-97 (based on specific construction)
- General gypsum wall assemblies with wood or metal studs

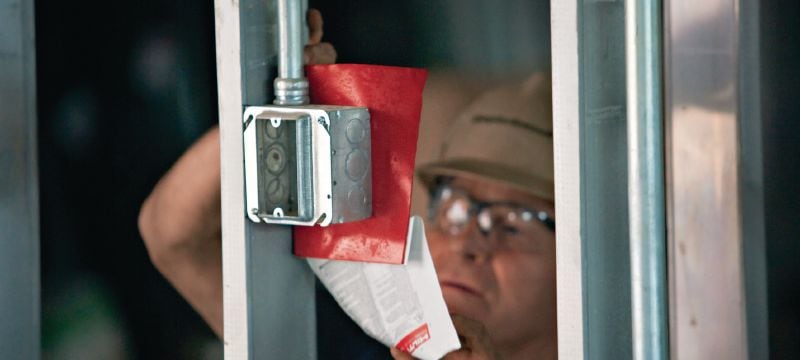

- A mouldable firestop putty designed to help protect electrical outlet boxes
For approval or certificate information, please see individual items.
