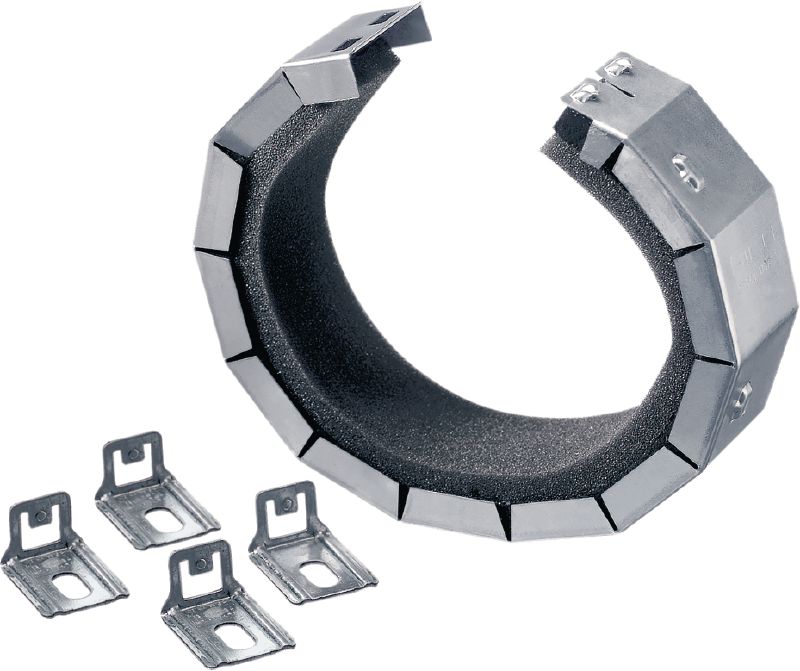

CP 643 N firestop collars
BS and UL compliant, FM approved retrofit firestop collar to help create a fire and smoke barrier around existing pipe penetrations
- Base materials: Concrete, Drywall, Masonry
- LEED VOC: 7.6 g/l
- Expansion ratio (unrestricted, up to): 1:17
Customers also searched for firestop jacket, intumescent collar or pipe collar.
Choose options
Nominal pipe diameter
- 50 mm
- 63 mm
- 75 mm
- 90 mm
- 110 mm
- 160 mm
Length
- 0 m
Pipe diameter - range
- 32 - 51 mm
- 52 - 64 mm
- 65 - 78 mm
- 79 - 91 mm
- 92 - 115 mm
- 126 - 170 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP251.00
Technical Data
Base materials
Concrete, Drywall, Masonry
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:17
Expansion temperature (approx.)
250 °C
Can be painted
No
Application temperature range
-5 - 50 °C
Storage and transportation temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Application
Other
Documents
pdf CP 643N product catalog [ 46.9 KB ]
Features & Applications
Features
- Designed to simplify firestopping of combustible pipes through fire-rated walls and floors
- Latch mechanism for quicker and easier closure
- Flexible hook positioning for convenient fastening
- Can be uninstalled
Applications
- Plastic pipes with diameters from 32-160 mm
For approval or certificate information, please see individual items.
